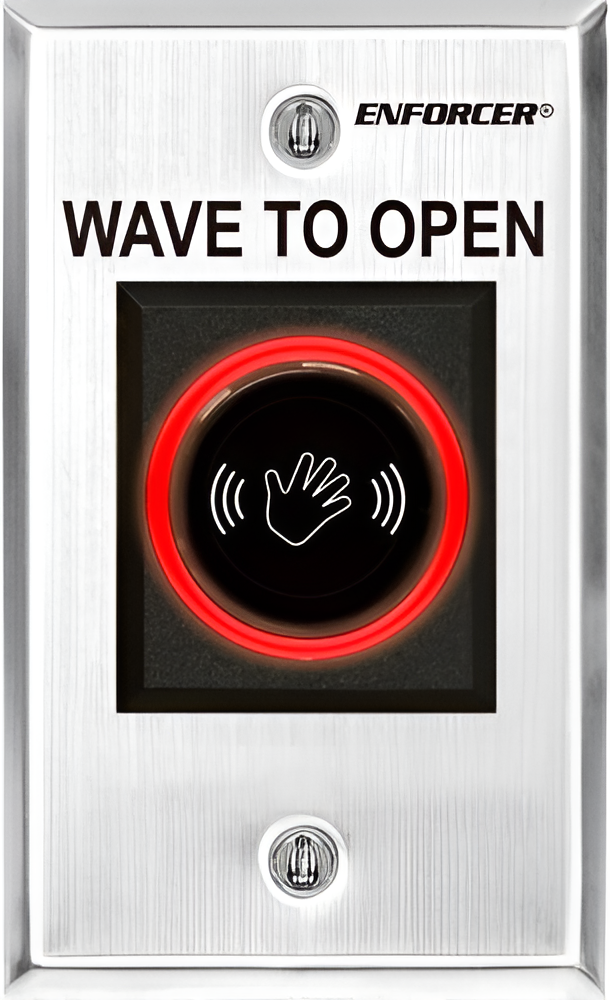

Seco-Larm SD-927PKC-NEQ Single Gang Plate Wave-to-Open, 12/24VDC

Seco-Larm SD-927PKC-NEQ Single Gang Plate Wave-to-Open, 12/24VDC offers a seamless egress solution using advanced infrared technology. This sensor enables hands-free activation, making it an excellent choice for environments where hygiene and safety are paramount, such as hospitals, cleanrooms, schools, and offices. The device is designed with a sleek stainless steel single-gang plate and includes a manual override button for added flexibility. Operating on dual voltage (12-24 VAC/VDC), the SD-927PKC-NEQ features an adjustable sensing range from 2-3/8" to 8", accommodating various installation needs. Its 3A relay is adjustable from 0.5 to 30 seconds, with options for toggle operation or continuous activation while a hand is detected. The LED illuminated sensor area enhances visibility, switching from red to green to indicate activation status. With a response time of just 10ms and a durable design rated for extreme conditions (-4° to 131° F), this sensor is built to perform reliably in demanding environments. Quick connect screw-less terminal blocks facilitate easy installation, making the Seco-Larm SD-927PKC-NEQ a practical and efficient choice for any access control project.

Single Gang Plate Wave-to-Open, 12/24VDC

The Enforcer wave-to-open sensors use IR technology to request egress from a protected area or activate a device with the simple wave of a hand. Since no touch is required, this sensor is ideal for use in hospitals, clinics, labs, cleanrooms (to reduce the risk of contamination), schools, factories, or offices. The SD-927PKC-NEVQ adds a manual override button. Also available with Spanish (SD-927PKC-NSQ, SD-927PKC-NSVQ) or French (SD-927PKC-NFQ, SD-927PKC-NFVQ) faceplates.

Features:

• ETL, Conforms to UL Std. 294
• Dual voltage, 12-24 VAC/VDC
• Range adjustable from 2-3/8"-8" (6-20 cm)
• Stainless steel single-gang plate
• 3A relay, adjustable from 0.5-30 sec, toggle, or as long as hand is near the sensor
• LED illuminated sensor area for easy identification
• Quick connect screw-less terminal block
• Selectable LED colors (turns from red to green or green to red) when activated

Specifications:

• Operating Voltage: 12~24 VAC/VDC
• Current Draw (max. ±10%): 120mA@12VDC
• Relay Type: Form C dry contact, 3A@24VDC
• Response Time: 10ms
• LED: Standby: red, triggered: green
• Output Duration: Adjustable, 0.5~30 sec., toggle, or as long as sensor is triggered
• Sensing Range: Adjustable, 2-3/8"~8" (6-20 cm)
• Destructive Attack Level: Level I
• Line Security: Level I
• Endurance Level: Level IV
• Standby Power: Level I
• Operating Temperature: -4°~131° F (-20°~55° C)
• Dimensions: 4-1/2" x 2-3/4" x 1-5/16" (115 x 70 x 33.5mm)
• Weight: 3-oz (85g)
