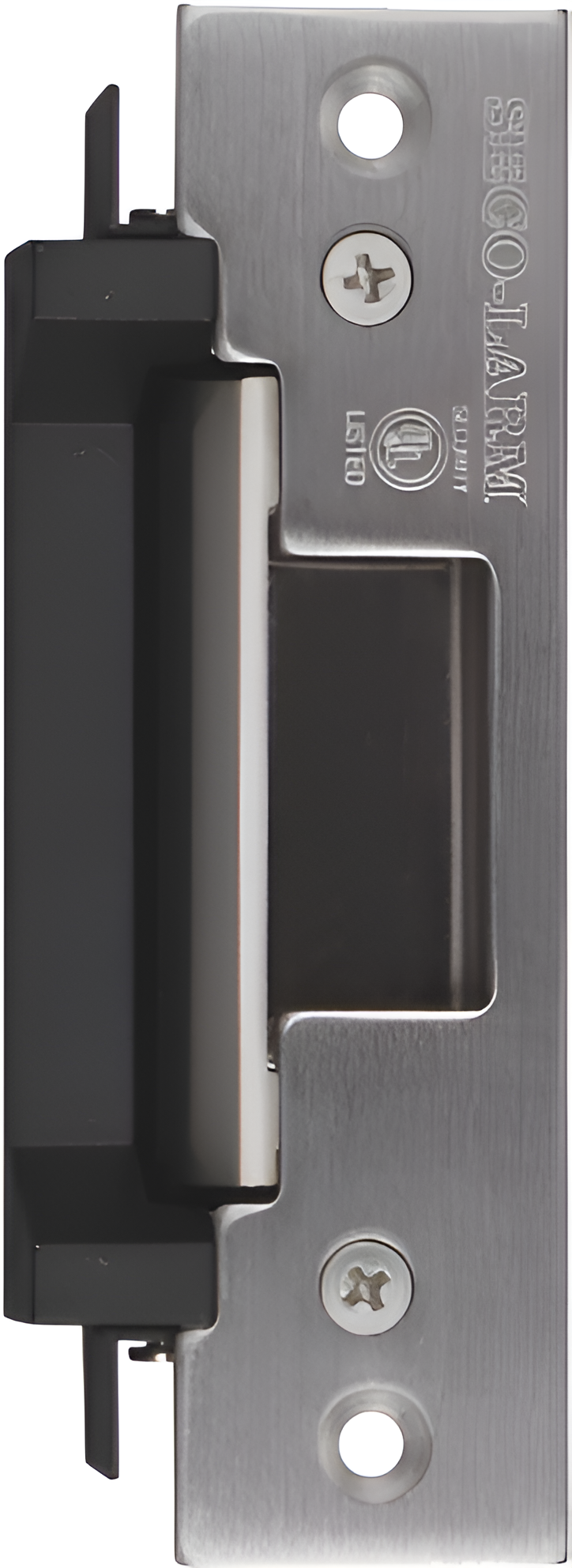

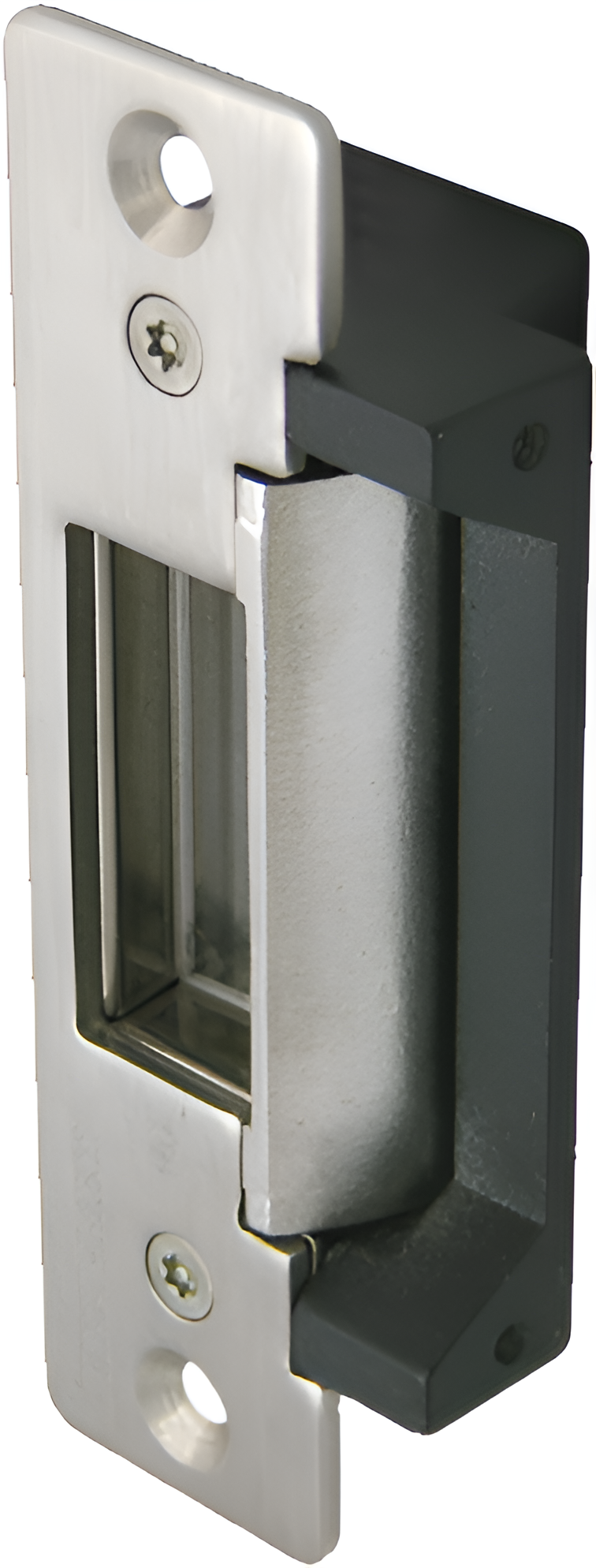

Seco-Larm SD-995C Electric Strike 12VDC Indoor, Fail-Secure or Fail-Safe

Seco-Larm SD-995C Electric Strike 12VDC Indoor offers a versatile solution for enhancing security in both residential and commercial settings. This electric door strike transforms standard cylindrical lock sets into an efficient electronic access control system, providing flexibility for various applications. With options for fail-safe or fail-secure operation, you can easily configure the strike to meet your security needs. Designed for compatibility with virtually any cylindrical door locking system, the SD-995C features a non-handed design that fits both right and left-handed doors. Its shallow profile is ideal for most metal doors, ensuring seamless integration. The stainless steel keeper enhances durability and longevity, while the static strength of 1,000 lbs (454 kg) guarantees robust performance. Operating at 12VDC with a current draw of 280mA, this electric strike is UL 294 and UL 1034 listed, assuring you of its reliability and safety. It is tested to withstand 250,000 cycles, making it a dependable choice for high-traffic areas. For added convenience, it can be paired with an optional digital keypad, allowing for keyless entry. Upgrade your access control system with the Seco-Larm SD-995C Electric Strike and enjoy enhanced security and peace of mind.

Electric Strike 12VDC Indoor, Fail-Secure or Fail-Safe

The electric door strike can be used to convert cylindrical lock sets into an electronic access controlled locking system. Combine with an optional Seco-Larm digital keypad for keyless high security.

Features:

• UL 294 & UL 1034 Listed
• Field-selectable for fail safe or fail-secure operation
• Can be used with virtually any cylindrical door locking system
• Can use with an optional digital keypad
• Suitable for office-type applications
• Reversible non-handed design fits either right hand or left-handed doors
• Shallow design for use with most metal doors
• Powered by a solenoid, not a buzzer coil
• Static strength – 1,000lbs (454kg)
• Stainless steel keeper for strength and long life
• Non-polarized connection
• Tested to 250,000 cycles (UL Tested)

Specifications:

• Operating voltage: 12VDC
• Operation: Fail-secure or fail-safe
• Current Draw: 280mA
• Static Strength: 1,000 lbs. (454kg)
• Dynamic strength: 50-ft-lbs. (6.91 m-kgs)
• Operating Temperature: 14°F~113°F (-10°~45° C)
• Dimensions: 4-7/8" x 1-1/4" x 1-1/4" (124 x 32 x 32mm)

Accessories:

• SD-995C-LE25: Accessories for electric door strikes – 1" lip extension bracket
• SD-995C-LE50: Accessories for electric door strikes – 2" lip extension bracket
• SD-995JA-11Q: Installation jig
