Seco-Larm SD-996C-NUVQ Electric Strike with Vertical Adjustment 12/24V AC/DC is engineered for versatility and reliability in access control solutions. This electric strike offers compatibility with a wide range of lock types, including cylindrical, mortise, and mortise exit devices, making it ideal for various applications in wood, aluminum, or metal doors. The unit features vertical adjustable deadbolt openings and a sliding shim keeper, accommodating deadbolts up to 1" in size. Designed for convenience, the Seco-Larm SD-996C-NUVQ is field-configurable for both fail-safe and fail-secure applications. The included five stainless-steel faceplates ensure a perfect match for different door lock types, while the trim plate conceals installation gaps for a clean finish. With a reversible non-handed design, this electric strike is easy to install and adjust according to your needs. Durably constructed, it is UL 294 and 1034 listed, tested for up to 250,000 cycles, and offers a remarkable static strength of 1,000 lbs. Operating efficiently at low current draws of 300mA@12VDC and 150mA@24VDC, it performs well in temperatures ranging from 14°F to 113°F. Enhance your security setup with the Seco-Larm SD-996C-NUVQ, a dependable choice for modern access control needs.

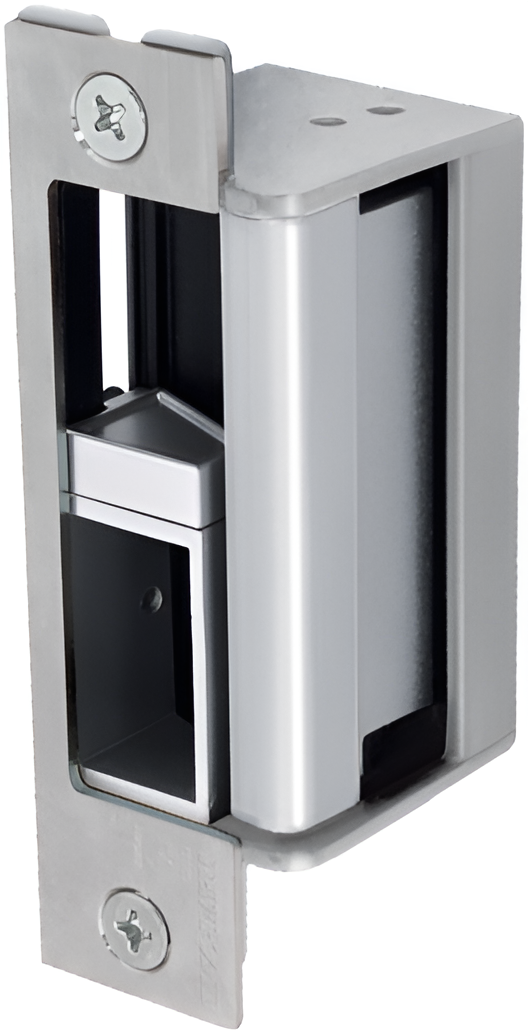

Electric Strike with Vertical Adjustment 12/24V AC/DC

The electric door strike with vertical adjustment is compatible with a wide range of lock types including cylindrical, mortise, and mortise exit devices and can be configured for use in wood, aluminum, or metal doors. Included are various ANSI-sized faceplates to match the door lock type. The strike is easily field-configurable for fail-safe or fail-secure applications.

Features:

• UL 294 and 1034 listed
• Vertical adjustable deadbolt opening, sliding shim keeper, and deadlatch ramp accommodates a wide range of lock types
• Accommodates deadbolts up to 1"
• Field selectable for fail-safe or fail-secure
• Includes 5 different stainless-steel faceplates
• Includes trim plate to hide gaps in installation
• Reversible non-handed design
• Tested to 250,000 cycles (UL tested)
• Low current draw: 300mA@12VDC & 150mA@24VDC

Specifications:

• Operating voltage: 12/24 VDC
• Current Draw: 300mA@12VDC, 150mA@24VDC
• Latch Throw: 1" (25mm) max with 1/8" (3mm) door gap
• Static Strength: 1,000 lbs. (454kg)
• Dynamic strength: 33 ft-lbs. (4.56 m-kgs)
• Operating Temperature: 14°F~113°F (-10°~45° C)
• Operating Humidity: 0~85%
• Dimensions: 1-13/16" x 1-5/8" x 3-5/16" (47 x 42 x 84mm)
