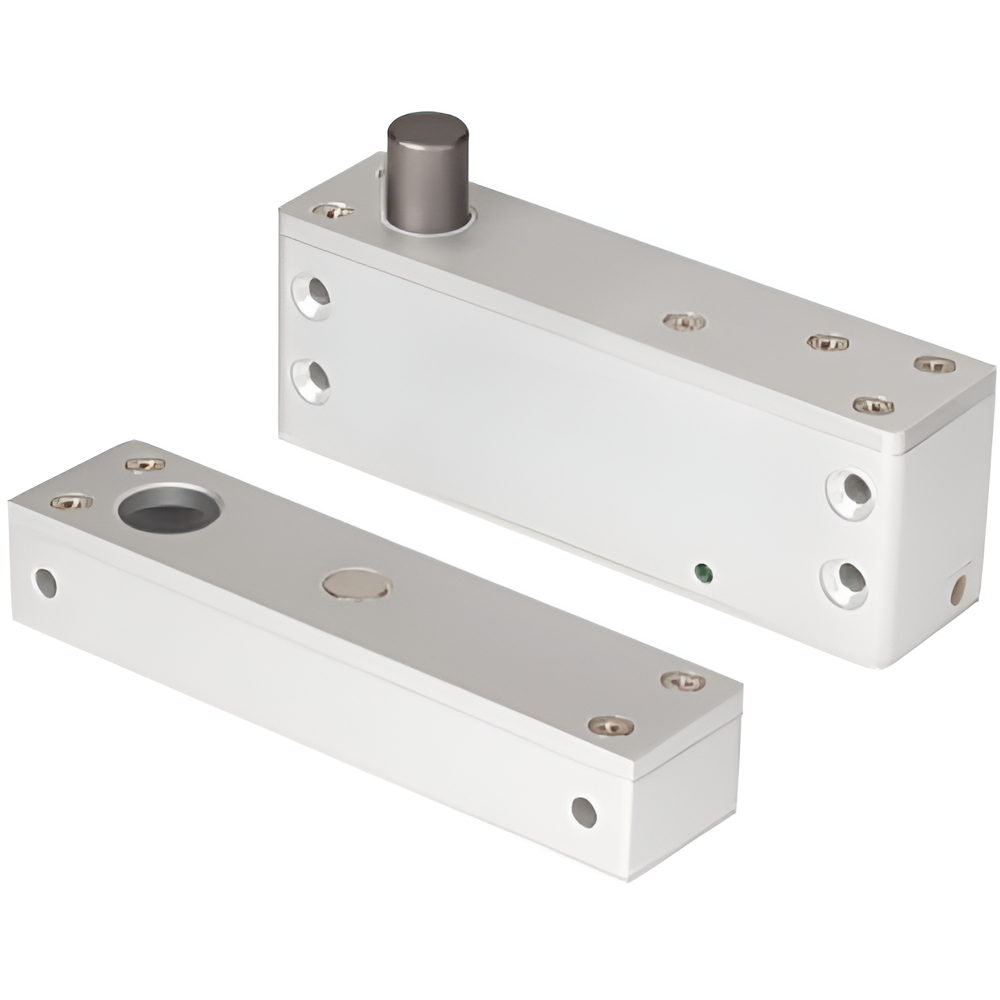

Seco-Larm SD-997B-1SQ Mini Surface-Mount Electric Deadbolt 12VDC, Fail-Safe

Seco-Larm SD-997B-1SQ Mini Surface-Mount Electric Deadbolt 12VDC, Fail-Safe offers a robust solution for securing cabinet doors and drawers with the convenience of electric operation. This compact deadbolt's surface-mount design ensures easy installation in virtually any location, making it an ideal choice for both professionals and homeowners seeking enhanced security. With fail-safe operation, the SD-997B-1SQ automatically unlocks when power is lost, providing peace of mind in emergency situations. The aluminum alloy bolt boasts a 15/32" diameter and a 9/16" throw, ensuring reliable locking. Additionally, a magnetic switch monitors door position, guaranteeing positive locking every time. For added convenience, this electric deadbolt automatically relocks after six seconds if the door remains closed, and features an adjustable lock delay timer of up to three seconds. The door open/close monitor (NC/COM) allows seamless integration into control systems. Powered by a solenoid and operating at 12VDC, the SD-997B-1SQ has a current draw of 237mA in standby and 650mA while active. It operates effectively in temperatures ranging from 32º to 158º F. This versatile deadbolt can also be paired with an optional digital keypad for keyless high-security access.

Mini Surface-Mount Electric Deadbolt 12VDC, Fail-Safe

The SD-997B-1SQ adds deadbolt security to cabinet doors or drawers with the convenience of electrical operation. Its miniature size and surface-mount design allows it to be added to almost any location. Fail-safe operation unlocks the unit when power is lost. Door status monitoring is also available to tie into a control system.

Features:

• Fail-safe operation (unlocks if power is lost)
• Surface-mount design for easy installation
• Magnetic switch senses door position for positive locking
• Aluminum alloy bolt, 15/32" (12.7mm) diameter, 9/16" (14mm) throw
• Automatically relocks after 6 seconds if the lock was unlocked but the door was not opened
• Door open/close monitor (NC/COM)
• Lock delay timer adjustable between 0 and 3 seconds
• Use with an optional digital keypad for high security without a key
• Powered by a solenoid

Specifications:

• Operation: Fail safe
• Current Draw - Standby: 237mA@12VDC max.
• Current Draw - Active: 650mA@12VDC max.
• Status Sensor: 250mA@30VDC (NC/COM)
• Operating Voltage: 12VDC
• Adjustable Delay Timer: 0/3 s (default)
• Operating Temperature: 32º~158º F (0º~70º C)
• Weight: 1-lb, 2.5-oz (450g)
