Seco-Larm SD-998C-D3AQ Electric Rim Strike offers a robust security solution designed for rim-type exit devices with a 1/2" throw. This surface-mount electric strike operates on a versatile 12/24VDC voltage, allowing for easy integration into various access control systems. With its selectable fail-safe or fail-secure operation, users can tailor its function to meet specific security needs. Constructed from stainless steel, the SD-998C-D3AQ is built to withstand the test of time, featuring a tamper-resistant design and a static strength rating of 1,500 lbs (6673N). The strike is UL 294 and 1034 listed, ensuring compliance with rigorous safety standards. Its horizontal adjustment capability allows for precise alignment, while the reversible non-handed design simplifies installation on both metal and wood frames without the need for frame cutting. Ideal for indoor use, this electric rim strike has been tested for 250,000 cycles, proving its reliability and durability. It accommodates up to a 3/4" pullman latch and comes with spacers for easy installation. With an operating temperature range of 14° to 120° F (-10° to 49° C) and humidity tolerance of 0-85%, the Seco-Larm SD-998C-D3AQ is a dependable choice for enhancing security in various environments.

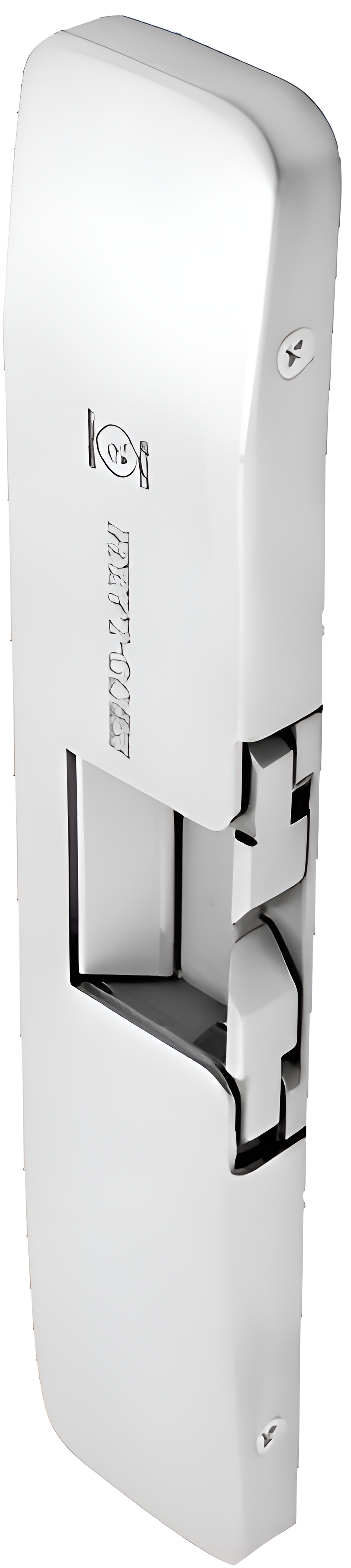

Electric Rim Strike, 12/24VDC, 1/2in Throw

The surface-mount electric rim strike designed with the strength and durability for use with rim-type exit devices with a pullman latch bolt (1/2" throw). The strike features 12/24VDC operating voltage, selectable fail-safe/fail-secure operation, horizontal adjustment, and a surface-mount metal housing, eliminating the need for frame cutting during installation.

Features:

• UL 294 and 1034 listed
• Tamper-resistant
• Non-polarized connection
• Horizontal adjustment
• Accommodates up to 3/4" pullman latch
• Reversible non-handed design
• Stainless steel construction
• Surface-mount on metal or wood frames
• Works with standard rim-type exit devices including SECO-LARM SD-962AR-36A and SD-962AR-36G
• For indoor use only
• Static strength – 1,500lb (6673N)
• Tested for 250,000 cycles (UL Tested)
• Field-selectable for fail-safe or fail-secure operation
• Spacers included: 1-1/16", 2-1/8" (1.5mm, 3mm)
• The SD-998C series is intended to be used with UL listed exit hardware
• The SD-998C series shall not impair the intended operation of an emergency unit
• The SD-998C series shall not impair the operation of panic hardware mounted on the door

Specifications:

• Operating Voltage: 12/24 VDC
• Current Draw: 540mA@12VDC, 270mA@24VDC
• Latch Throw: 1/2"
• Dynamic strength: 70ft-lb (95J)
• Destructive attack: Level I
• Line security: Level I
• Standby power: Level I
• Operating Temperature: 14°~120° F (-10°~49° C)
• Operating Humidity: 0~85%
• Dimensions: 9" x 1-3/4" x 1/2" (229 x 45 x 13mm)

Accessories:

• SD-998SMB: Surface-mount bracket for Seco-Larm rim strikes
