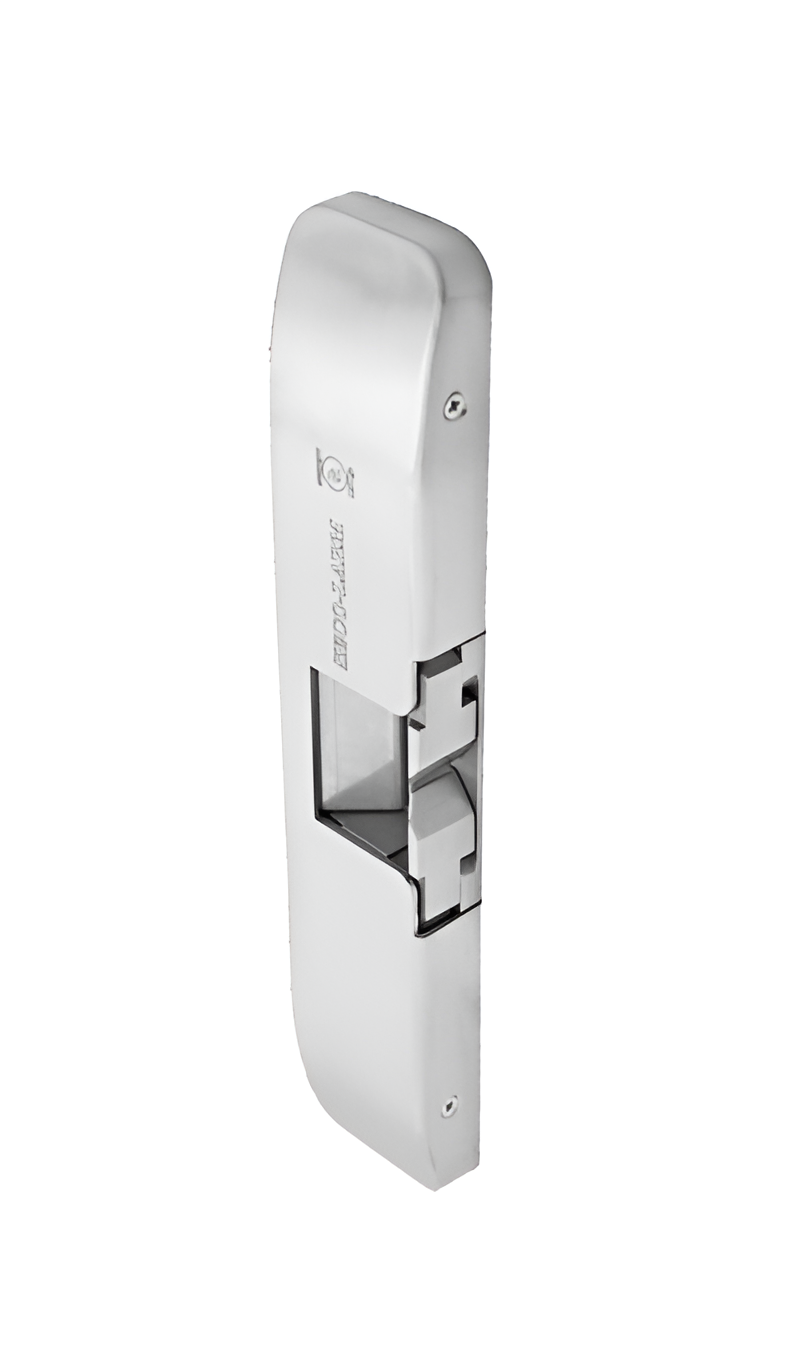

Seco-Larm SD-998C-D3Q Electric Rim Strike, 12/24VDC, 3/4in Throw

Seco-Larm SD-998C-D3Q Electric Rim Strike offers robust security solutions with its durable surface-mount design, specifically crafted for rim-type exit devices featuring a 3/4" pullman latch bolt. This electric strike operates on a 12/24VDC voltage and provides selectable fail-safe or fail-secure functionality, ensuring versatile application for various security needs. Constructed with stainless steel, the SD-998C-D3Q is tamper-resistant and UL 294 and 1034 listed, providing peace of mind in commercial or residential settings. Its non-polarized connection and horizontal adjustment feature make installation straightforward, eliminating the need for frame cutting. The strike accommodates a dynamic strength of 70ft-lb (95J) and a static strength of 1,500lb (6673N), ensuring reliable performance over time. Designed for indoor use, this electric rim strike can withstand operating temperatures from 14°F to 120°F (-10°C to 49°C) and humidity levels of 0-85%. Additionally, it has been rigorously tested for 250,000 cycles, confirming its durability. With spacers included for flexible installation, the Seco-Larm SD-998C-D3Q Electric Rim Strike is an ideal choice for those seeking reliable and effective access control solutions.

Electric Rim Strike, 12/24VDC, 3/4in Throw

The surface-mount electric rim strike designed with the strength and durability for use with rim-type exit devices with a pullman latch bolt (1/2" throw). The strike features 12/24VDC operating voltage, selectable fail-safe/fail-secure operation, horizontal adjustment, and a surface-mount metal housing, eliminating the need for frame cutting during installation.

Features:

• UL 294 and 1034 listed
• Tamper-resistant
• Non-polarized connection
• Horizontal adjustment
• Accommodates up to 3/4" pullman latch
• Reversible non-handed design
• Stainless steel construction
• Surface-mount on metal or wood frames
• Works with standard rim-type exit devices including SECO-LARM SD-962AR-36A and SD-962AR-36G
• For indoor use only
• Static strength – 1,500lb (6673N)
• Tested for 250,000 cycles (UL Tested)
• Low current draw: 540mA@12VDC, 270mA@ 24VDC
• Field-selectable for fail-safe or fail-secure operation
• Spacers included: 1-1/16", 2-1/8" (1.5mm, 3mm)
• The SD-998C series is intended to be used with UL listed exit hardware
• The SD-998C series shall not impair the intended operation of an emergency unit
• The SD-998C series shall not impair the operation of panic hardware mounted on the door

Specifications:

• Operating Voltage: 12/24 VDC
• Latch Throw: 3/4"
• Dynamic Strength: 70ft-lb (95J)
• Destructive Attack: Level I
• Line Security: Level I
• Standby Power: Level I
• Operating Temperature: 14°~120° F (-10°~49° C)
• Operating Humidity: 0~85%
• Dimensions: 9" x 1-3/4" x 3/4" (229 x 45 x 19mm)

Accessories:

• SD-998SMB: Surface-mount bracket for Seco-Larm rim strikes
