Seco-Larm SD-R400-BQ Microwave RTE Sensor, 12-24VDC, up to 10ft, Indoor Only

Seco-Larm SD-R400-BQ Microwave RTE Sensor is a versatile motion sensor designed for indoor applications, offering a reliable solution for access control and egress management. Operating on a voltage range of 12-24VDC, this sensor utilizes advanced 24.150GHz microwave doppler technology to provide an adjustable sensing range of up to 10 feet (3 meters), making it ideal for various installations. One of the standout features of the SD-R400-BQ is its adjustable relay output time, ranging from 1 to 33 seconds, ensuring flexibility in response time to meet specific needs. The compact design allows for easy installation above doors, facilitating no-touch ingress and egress while enhancing user convenience. With a detection angle of 20°–30° front/back and 60°–70° left/right, the sensor maintains consistent detection over large areas and varying temperatures, operating effectively in environments ranging from -4°F to 131°F (-20°C to 55°C). Installation is straightforward, requiring a mounting height between 6 to 10 feet (1.8 to 3 meters). The sensor’s LED indicator provides a visual confirmation of relay activation, while the durable black ABS and polycarbonate case ensures longevity. Weighing only 2.5 ounces, the SD-R400-BQ is a lightweight and efficient choice for your security hardware needs.

Microwave RTE Sensor, 12-24VDC, up to 10ft, Indoor Only

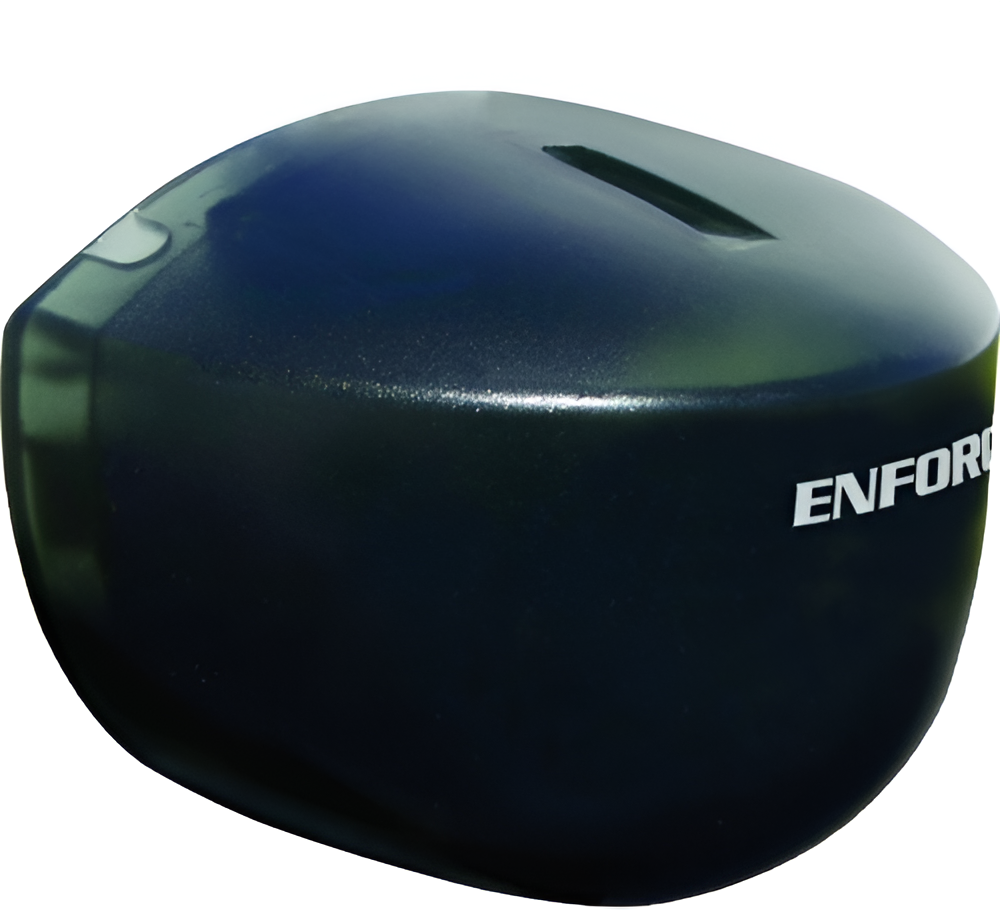

The Enforcer microwave RTE sensor is a compact motion sensor with an adjustable output timer that can be connected to an access control keypad, gate opener, and can be used to trigger any device with an egress input.

Features:

• 12-24VDC Operating voltage
• 24.150GHz Microwave doppler technology
• 10ft (3m) Sensing range, adjustable
• Adjustable relay output time, 1-33 s
• Small size allows for a wide range of applications
• Universally compatible, install the sensor above doors for no-touch ingress/egress
• More consistent detection in large areas and over a wide range of temperatures
• Indoor use only

Specifications:

• Operating Voltage: 12/24 VDC
• Current draw: Standby: 23mA@12VDC/14mA@24VDC. Active: 39mA@12VDC/21mA@24VDC
• Sensor frequency: 24.150GHz
• Sensor range: 3’~10' (0.9~3m), adjustable
• Sensor angle: Vertical: 0°~90°, Horizontal: ±30°
• Detection angle: Front/back: 20°~30°, Left/right: 60°~70°
• Min. detection speed: 5cm/s
• Output relay: 2A@30VDC (0.5A@125VAC) Dry relay, NO/NC/COM
• Relay output time: 1~33 s
• Mounting height: 6'~10' (1.8~3 m)
• Cable length: 8' (2.5m)
• LED Indicator: Red on relay activation
• Case material: Black ABS and polycarbonate
• Operating temperature: -4°~131° F (-20°~55° C)
• Dimensions: 3-1/8" x 2-3/8" x 2-1/8" (80 x 60 x 54mm)
• Weight: 2.5-oz (70g)
