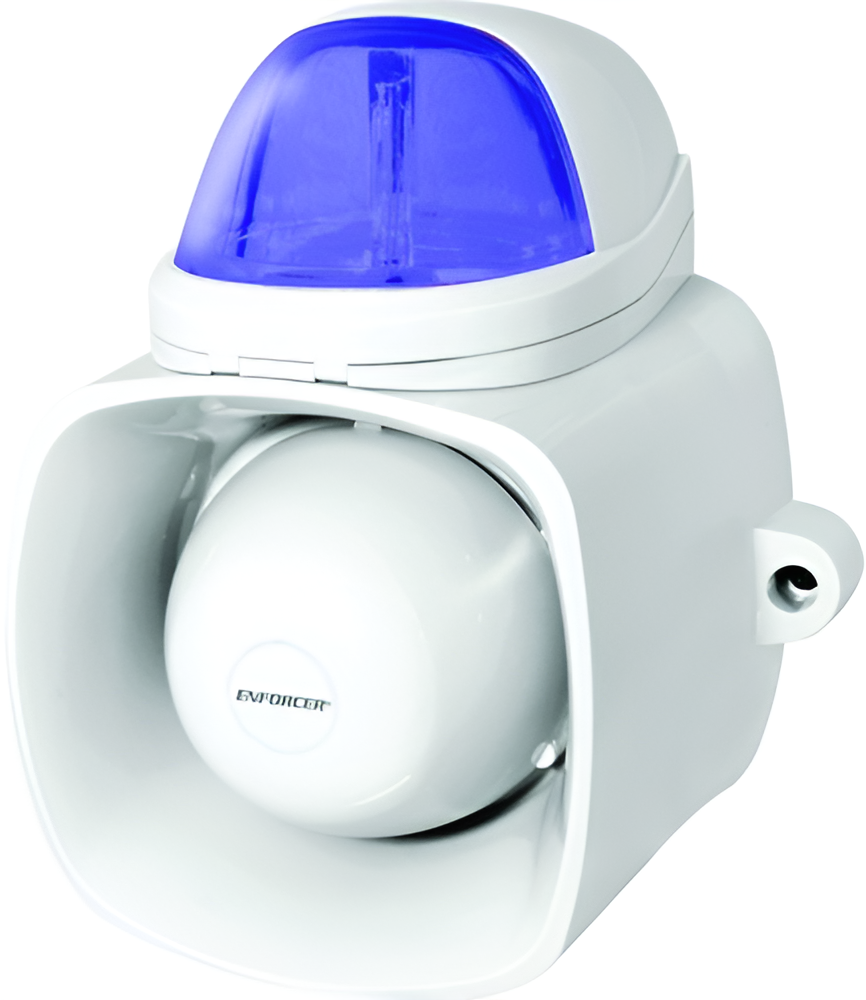

Seco-Larm SH-816S-SQ/B Xenon Tube Strobe Light Blue with 120DB Siren, Audio Input, 9-15VDC

Seco-Larm SH-816S-SQ/B Xenon Tube Strobe Light in Blue combines powerful alarm capabilities with versatility. This multi-purpose device serves as a 120dB warble-tone siren and features a robust 25W speaker that allows for audio playback or message broadcasting. The audio input is designed to interrupt the siren, ensuring critical messages are heard during emergencies. The SH-816S-SQ/B is equipped with a bright xenon tube strobe light, which can be triggered independently from the siren, providing an extra layer of visual alert. With a weatherproof rating of IP65, this unit is suitable for both indoor and outdoor use, ensuring reliable performance in various environments. The strobe light has a flash rate of 100 per minute, making it highly visible. Installation is straightforward, allowing for mounting directly to walls or compatible back boxes. Powering the unit requires a voltage of 9-15 VDC, with a maximum current draw of 870mA when both the siren and strobe are active. Crafted from durable white polycarbonate plastic, the SH-816S-SQ/B measures 6-1/8" x 7" x 4-1/2" and weighs just over 2 pounds. This siren/strobe is an indispensable security solution for professionals seeking reliable alert systems.

Xenon Tube Strobe Light Blue with 120DB Siren, Audio Input, 9-15VDC

The Enforcer siren/strobes are multi-purpose devices: siren, speaker, and optional strobe (SH-816S-SQ only). It can serve as a regular siren, but also has an audio input that can be used to playback audio or broadcast messages. The SH-816S-SQ series also includes a strobe light with a choice of amber, blue, clear, or red lenses and can be surface installed or to a standard single gang, double gang or C-type back box.

Features:

• Low current draw
• 120dB Warble-tone siren
• 25W Speaker for audio or broadcast system input (broadcast will interrupt the siren)
• Built-in tamper alarm output
• Weatherproof for outdoor/indoor use, IP65
• Easy installation
• Mount directly to wall or to most common back boxes
• Bright xenon tube strobe light
• Strobe can be triggered separate from siren

Specifications:

• Type: Siren/strobe
• Operating Voltage: 9~15 VDC
• Current Draw max.– Strobe: 190mA@12VDC
• Current Draw max.– Siren: 680mA@12VDC
• Current Draw max.– Both: 870mA@12VDC
• Strobe Flash Rate: 100 per minute
• Tamper Output: 100mA@30 VAC/VDC
• Operating Humidity: 0~95%
• Operating Temperature: -4°~131° F (-20°~55° C)
• Housing Material: White polycarbonate plastic
• Lens Color: Blue
• Dimensions: 6-1/8" x 7" x 4-1/2" (155 x 178 x 115mm)
• Weight: 2-lb 2-oz (957g)
