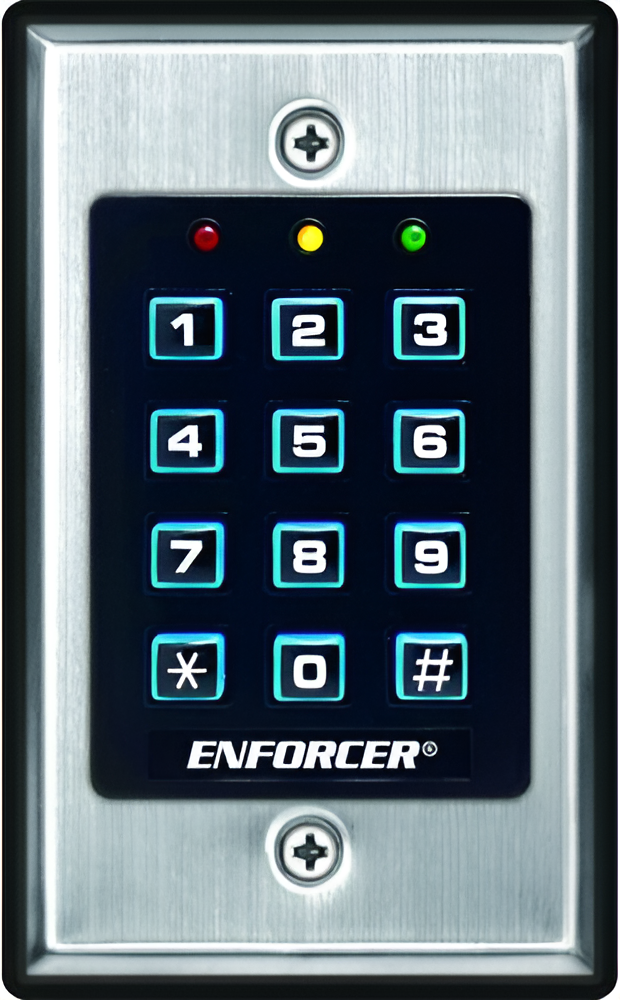

Seco-Larm SK-1011-SDQ Stand-Alone Indoor Keypad 1000 Users, 12-24V ACDC, 1 Relay Output

Seco-Larm SK-1011-SDQ Stand-Alone Indoor Keypad offers robust access control for both residential and commercial applications. This versatile keypad supports up to 1,000 user codes and provides an additional 50 temporary visitor codes, making it ideal for busy environments. Its user-friendly design includes a backlit keypad, ensuring ease of use even in low-light conditions. The SK-1011-SDQ is designed for flexible installation, allowing for surface mounting with the included back box or flush mounting in a standard single-gang back box. It features a tamper alarm for enhanced security and an egress input, enabling users to exit without inputting a code. The built-in EEPROM memory protects programmed information in case of power loss, ensuring reliable operation. With an operating voltage of 12-24 VDC/VAC, this keypad draws minimal current, with a maximum total draw of 90mA. The Form C relay output can activate for nearly 28 hours, providing ample time for security needs. Additionally, the keypad operates effectively in a wide range of temperatures (-4° to 158°F) and humidity levels (5-95% non-condensing). The Seco-Larm SK-1011-SDQ is an essential component for anyone seeking a secure, efficient access control solution.

Stand-Alone Indoor Keypad 1000 Users, 12-24V ACDC, 1 Relay Output

The Enforcer SK-1011-SDQ is a single-output, indoor access control keypad that doesn’t scrimp on the important features. It supports up to 1,000 users and 50 temporary visitors and can be surface mounted with the included back box or flush mounted in a standard single-gang back box. It includes a tamper alarm, and a backlit keypad for ease of use at night or in dark areas.

Features:

• Auto-adjusting operation
• Up to 1,000 possible user codes (000~999)
• Up to 50 (01~50) possible temporary visitor codes, which can be programmed for one-time or limited-time use (1~99 hours)
• Form C relay, 1A@30VDC max. can be programmed to activate for up to 99,999 seconds (nearly 28 hours)
• Tamper output N.C. Dry contact, 50mA@24VDC max.
• Mounts to a standard single-gang back box (surface-mount back box included)
• All features are programmed directly from the keypad with no need for an external programmer
• EEPROM Memory protects programmed information in case of power loss
• Egress input lets users exit the premises without keying in the code
• Data I/O terminal for split-series setup providing added security
• Expansion port for future optional features
• Always-on backlit keypad

Specifications:

• Operating Voltage: 12~24 VDC/VAC
• Current Draw:
• Current Draw Standby: 15mA
• Current Draw Keypress: 30mA
• Current Draw Output 1 active: 55mA
• Current Draw Total (max.): 90mA
• Outputs: Output 1, Form C: 1A@30VDC. Tamper: 50mA@24VDC
• Egress Inputs: N.O. ground
• Operating Humidity: 5~95% Non-condensing
• Operating Temperature: -4°~158° F (-20°~70° C)
• Dimensions (including back box): 4-5/8" x 2-7/8" x 1-15/16" (117 x 73 x 49mm)
• Weight: 6-oz (170 g)
