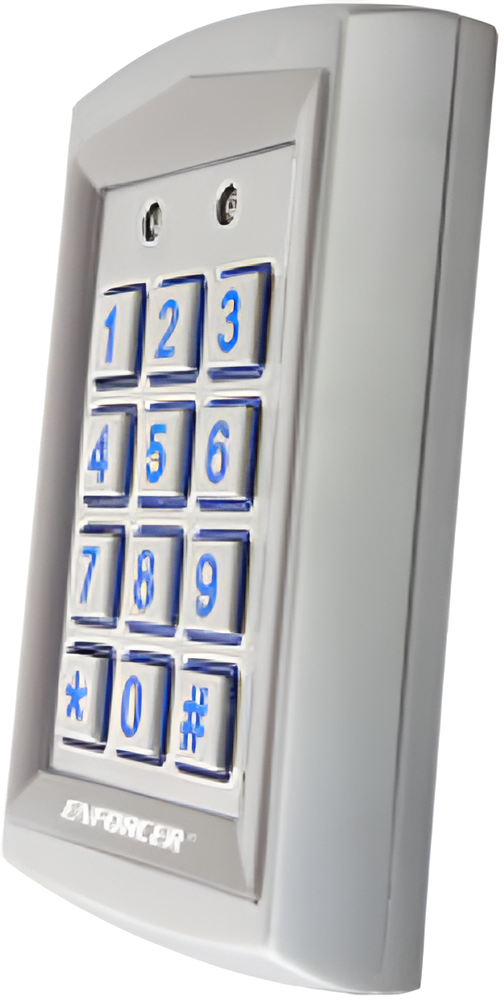

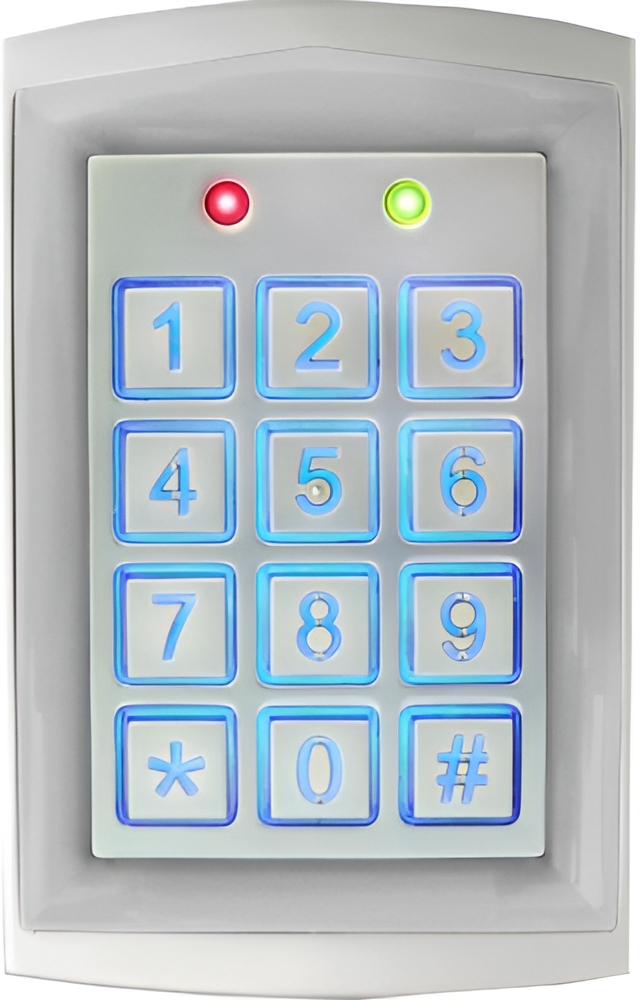

Seco-Larm SK-1323-SDQ Sealed, Stand-Alone Vandal Resistant Flush-Mount Outdoor Keypad offers a robust solution for secure access control, accommodating up to 1,010 users with a user-friendly interface. Designed for versatility, this keypad operates on a wide voltage range of 12-24 VAC/VDC, making it ideal for various installations. It features two Form C relay outputs, each rated at 1 Amp @ 30VDC, allowing customizable control options for a range of devices. With backlit keys for nighttime visibility and two multi-colored status LEDs, the SK-1323-SDQ ensures easy operation in all lighting conditions. The keypad includes additional functionalities such as two egress inputs and a door sensor input, enhancing its utility for security applications. Programmable directly from the keypad, all settings can be adjusted without the need for an external programmer, and EEPROM memory safeguards programmed information during power interruptions. Designed for outdoor resilience, it boasts a rugged aluminum construction with an IP65 weatherproof rating and epoxy-potted circuitry for enhanced durability. Operating in temperatures from -4° to 122°F, this keypad is built to withstand various environments. Its compact dimensions of 4-3/4" x 3" x 7/8" make it suitable for flush mounting, delivering reliable security wherever you need it.

Sealed, Stand-Alone Vandal Resistant Flush-Mount Outdoor Keypad, 1100 Users, 12-24V ACDC, 2 Relay Output

Features:

• 12~24 VAC/VDC operation
• 1,010 Users (Output #1: 1,000 users, output #2: 10 users)
• 2 Form C relays, each rated 1 Amp @ 30VDC
• Each relay has programmable output time from 1~99 seconds or toggle
• Output #2 can be programmed for use with a doorbell
• 2 Egress inputs and 1 door sensor input
• Backlit keys for easy nighttime use
• Two multi-colored status LEDs
• Able to mount to a single-gang back box
• All features are programmed directly from the keypad – no need for an external programmer
• EEPROM memory protects programmed information in case of power loss
• Optical tamper for added security
• Circuitry is potted with epoxy for outdoor use
• IP65 Weatherproof rating, rugged aluminum construction

Specifications:

• Type: Sealed housing weatherproof outdoor digital access keypad
• Number of User Codes: Up to 1,010
• Operating Voltage: 12~24 VAC/VDC
• Current Draw– Standby: 64mA@12VDC
• Current Draw- Active: 92~120mA@12VDC
• Relay Outputs (2): 1A@30VDC, Form C, NO/COM/NC
• Egress Inputs: 2, N.O. Ground
• Door Sensor Input: N.C. Ground
• Tamper Sensor: Optical
• Keypad LED Life: 60,000 hours (over 6.8 years)
• Operating Temperature: -4°~122° F (-20°~50° C)
• Dimensions: 4-3/4" x 3" x 7/8" (120 x 76 x 22mm)
• Weight: 1-lb 2-oz (510g)
