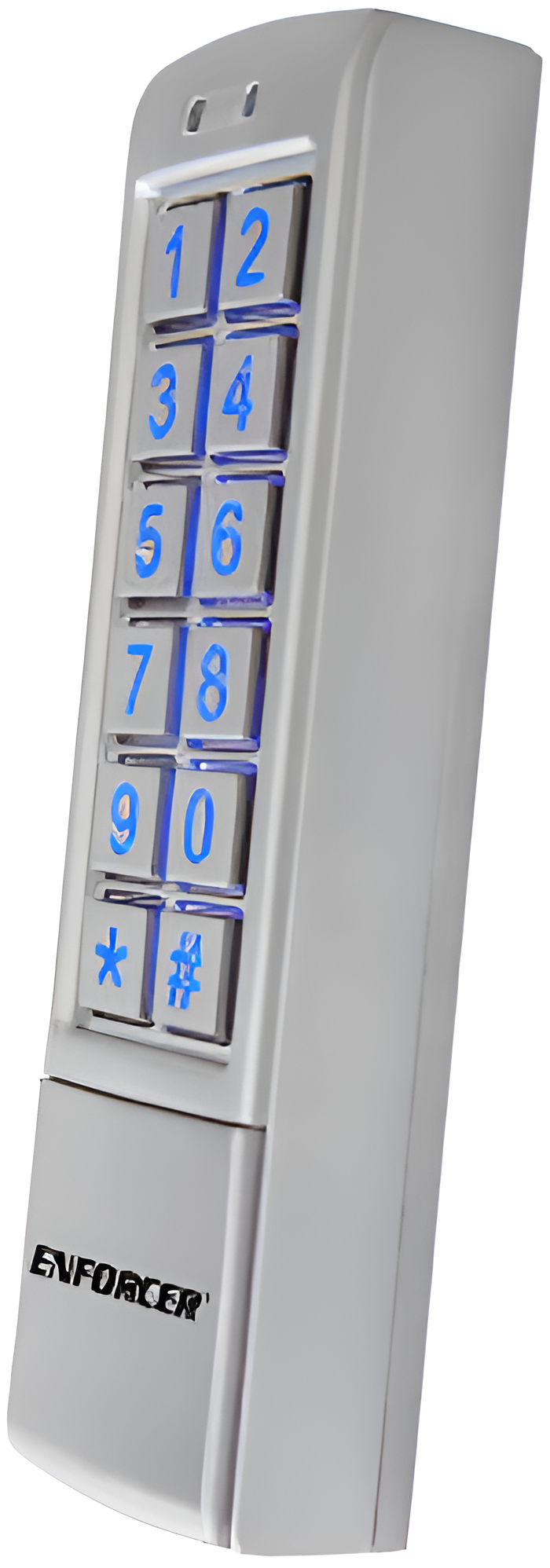

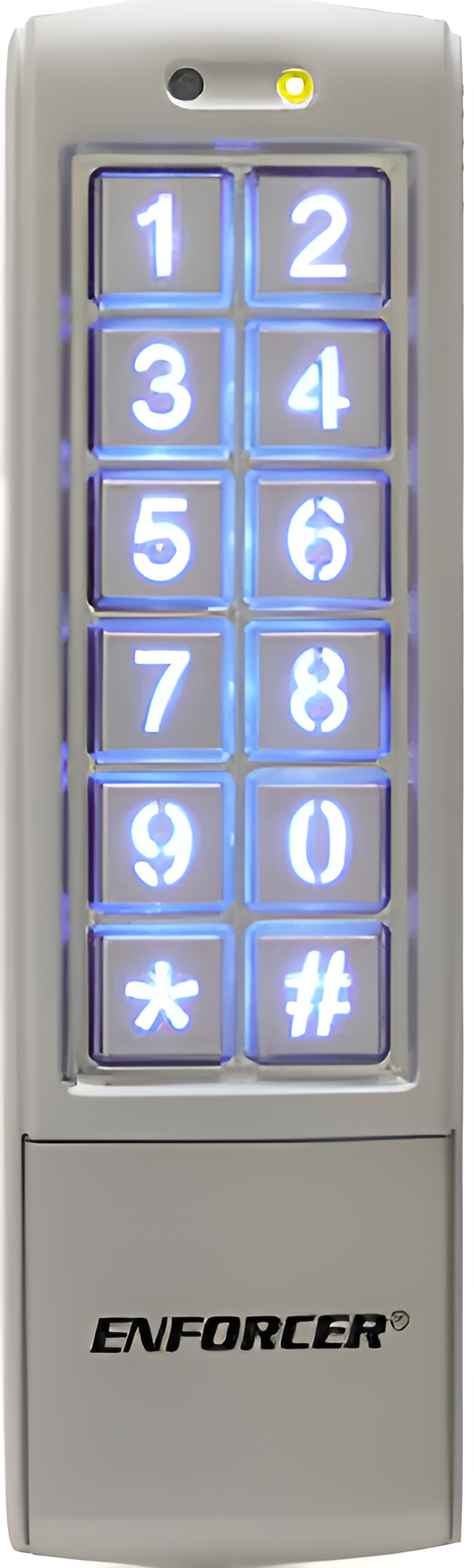

Seco-Larm SK-2323-SDQ Mullion-Style Stand-Alone Outdoor Keypad offers an efficient access control solution for both residential and commercial applications. With the capability to support up to 1,010 users-1,000 on output #1 and 10 on output #2-this keypad ensures seamless entry management. Operating on a versatile 12-24 VAC/VDC power supply, it features two Form C relay outputs, each rated at 1 Amp @ 30VDC, providing flexibility in integration with various locking mechanisms. Designed for durability, the SK-2323-SDQ boasts an IP65 weatherproof rating and rugged aluminum construction, making it suitable for outdoor installation. The backlit keys enhance usability during nighttime, while two multi-colored status LEDs provide clear visual feedback. Programmability is user-friendly, allowing all features to be configured directly from the keypad without the need for external programming tools. Additional highlights include an optical tamper sensor for enhanced security, EEPROM memory to protect settings during power loss, and egress inputs for emergency exit scenarios. With an operating temperature range of -4° to 122°F and a keypad LED lifespan of 60,000 hours, this keypad is built to last. Measuring 6" x 1-3/4" x 15/16" and weighing 11 oz, the Seco-Larm SK-2323-SDQ is a versatile and reliable choice for modern access control needs.

Mullion-Style Stand-Alone Outdoor Keypad, 1010 Users, 12-24V ACDC, 2 Relay Output

Features:

• 12~24 VAC/VDC operation
• 1,010 Users (output #1: 1,000 users, output #2: 10 users)
• 2 Form C relays, each rated 1 Amp @ 30VDC
• Each relay has programmable output time from 1~99 seconds or toggle
• Output #2 can be programmed for use with a doorbell
• 2 Egress inputs and 1 door sensor input
• Backlit keys for easy nighttime use
• 2 Multi-colored status LEDs
• All features are programmed directly from the keypad – no need for an external programmer
• EEPROM memory protects programmed information in case of power loss
• Optical tamper sensor for added security
• Circuitry is potted with epoxy for outdoor use
• IP65 Weatherproof rating, rugged aluminum construction

Specifications:

• Type: Mullion-style weatherproof digital access keypads
• Number of User Codes: Up to 1,010
• Operating Voltage: 12~24 VAC/VDC
• Current Draw – Standby: 64mA@12VDC
• Current Draw- Active: 1 Relay active: 92mA@12VDC 2 relays active: 120mA@12VDC
• Relay Outputs (2): 1A@30VDC, Form C, NO/COM/NC
• Egress Inputs: 2, N.O. Ground
• Door Sensor Input: N.C. Ground
• Tamper Sensor: Optical
• Keypad LED Life: 60,000 hours (over 6.8 years)
• Operating Temperature: -4°~122° F (-20°~50° C)
• Dimensions: 6" x 1-3/4" x 15/16" (152 x 44 x 24mm)
• Weight: 11-oz (312g)
