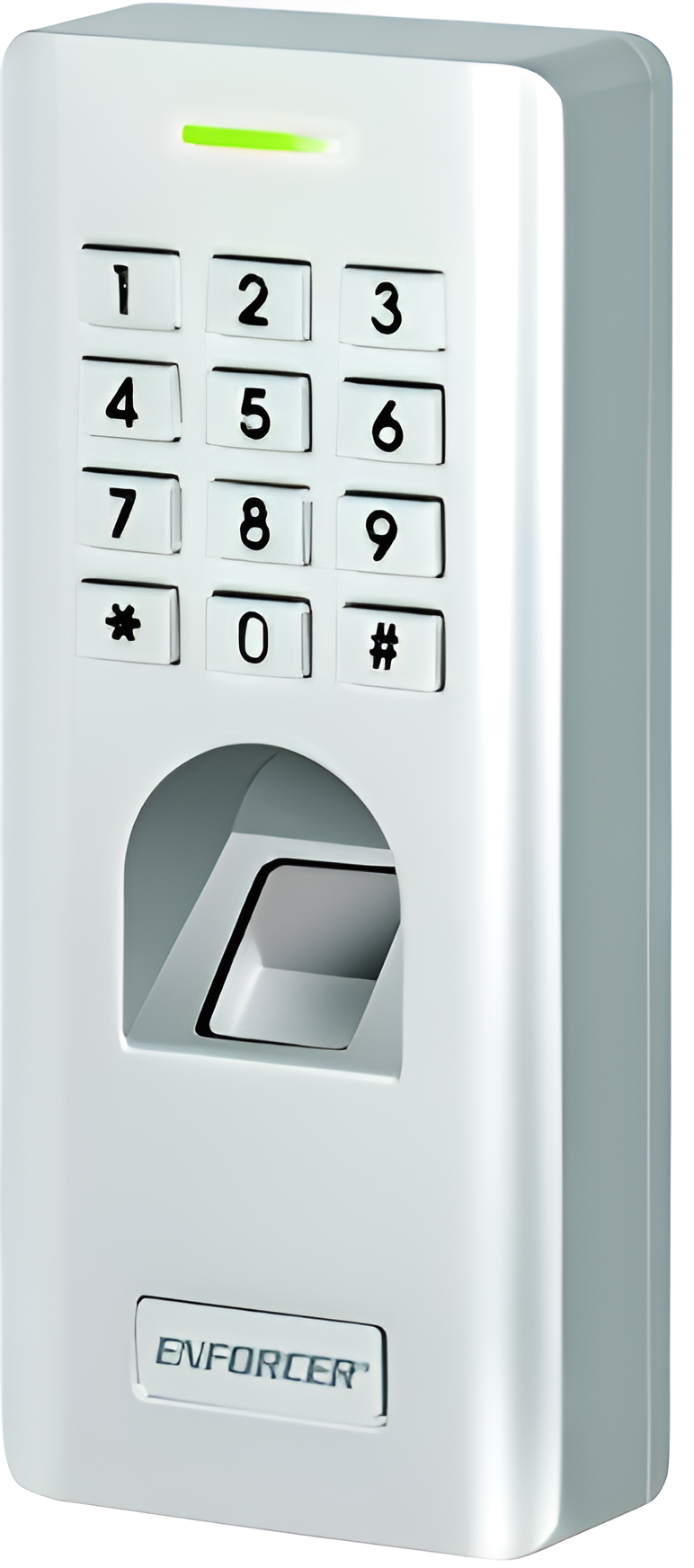

Seco-Larm SK-2612-SFSQ Fingerprint Reader and Keypad, 3000 Users, 12VDC, 1 Relay Output

Seco-Larm SK-2612-SFSQ Fingerprint Reader and Keypad offers a high-security solution for your access control needs, accommodating up to 3,000 users, including 1,000 fingerprint and 2,000 PIN users. Designed for efficiency, this device features a 500DPI optical fingerprint reader that identifies users in less than one second, ensuring swift entry without compromising security. With a remarkably low false acceptance rate of ≤0.01% and a false rejection rate of ≤0.1%, you can trust this reader to be both secure and reliable. The weatherproof design (IP66 rating) makes it suitable for various environments, while the illuminated fingerprint window enhances usability in low-light conditions. The SK-2612-SFSQ operates on 12VDC and features a Form C relay output rated for 2A@12VDC, alongside a tamper alarm output of 2.5A@12VDC. Users can adjust the relay output time from 100ms to 99s or set it to toggle mode. This unit supports 26~44 bit Wiegand output and has egress inputs for added functionality. Its durable zinc alloy enclosure ensures longevity, and with an operating temperature range of -22° to 140°F (-30° to 60°C), it's built to withstand diverse conditions. Dimensions are 2-1/4" x 5-3/8" x 1", weighing 14.2 oz (400g). Upgrade your security with the Seco-Larm SK-2612-SFSQ today.

Fingerprint Reader and Keypad, 3000 Users, 12VDC, 1 Relay Output

Features:

• 500DPI Optical fingerprint reader
• Up to 3,000 users (up to 1,000 fingerprint users, up to 2,000 pin users)
• User code length 4~6 digits
• Fingerprint identification time – ≤1 second
• Fingerprint false acceptance rate – ≤0.01%
• Fingerprint false rejection rate – ≤0.1%
• 12VDC Operation
• Form C relay output – 2A@12VDC
• Tamper alarm output – 2.5A@12VDC
• Adjustable relay output time – 100ms~99s, or toggle
• Weatherproof – IP66
• Illuminated fingerprint reader window
• 26~44 bit Wiegand output
• 2-Door interlock

Specifications:

• Operating Voltage: 12VDC
• Current Draw– Standby: 45mA@12VDC
• Current Draw- Active: 200mA@12VDC (max.)
• Output- Wiegand: 26~44 bit
• Egress Inputs: N.O. Ground
• Door Sensor Input: N.C. Ground
• Enclosure material: Zinc alloy
• Operating Temperature: -22°~140° F (-30°~60° C)
• Operating Humidity: 20~90%
• Dimensions: 2-1/4" x 5-3/8" x 1" (58 x 137 x 26mm)
• Weight: 14.2-oz (400g)
