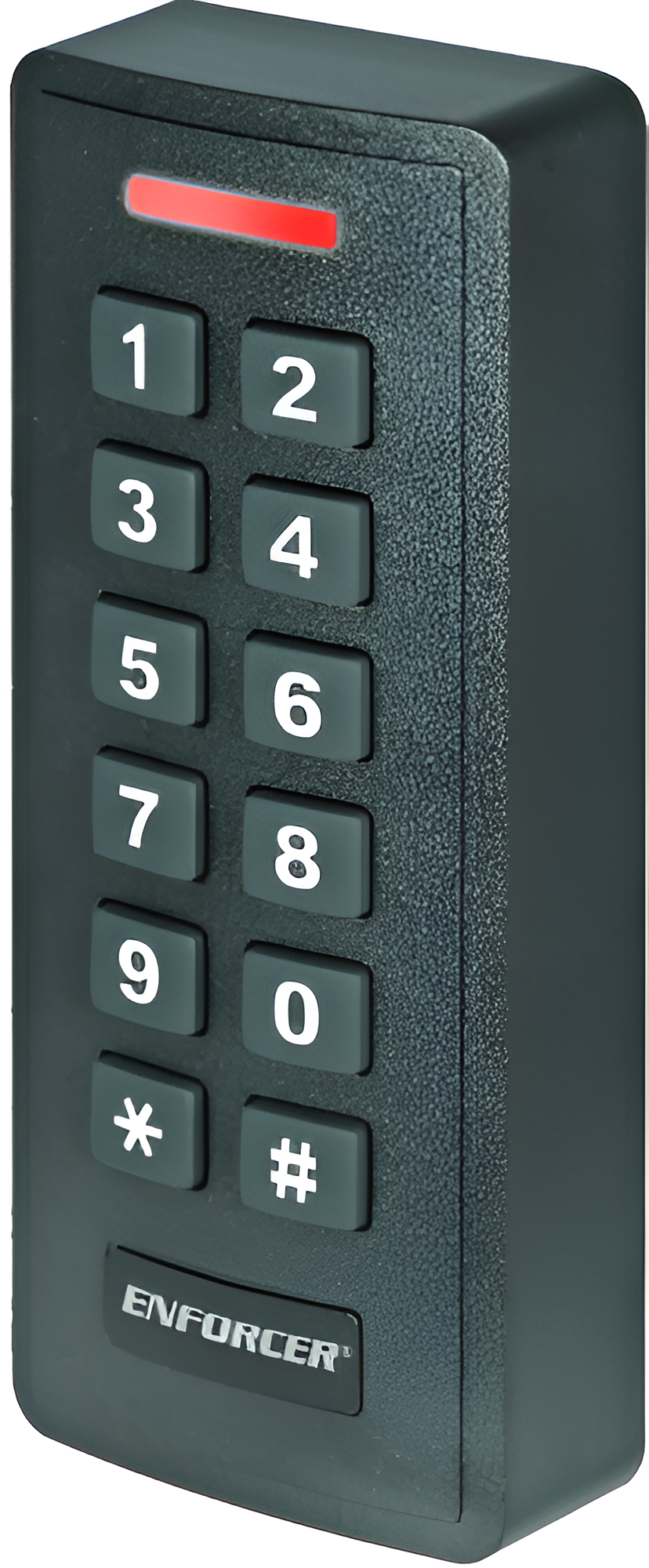

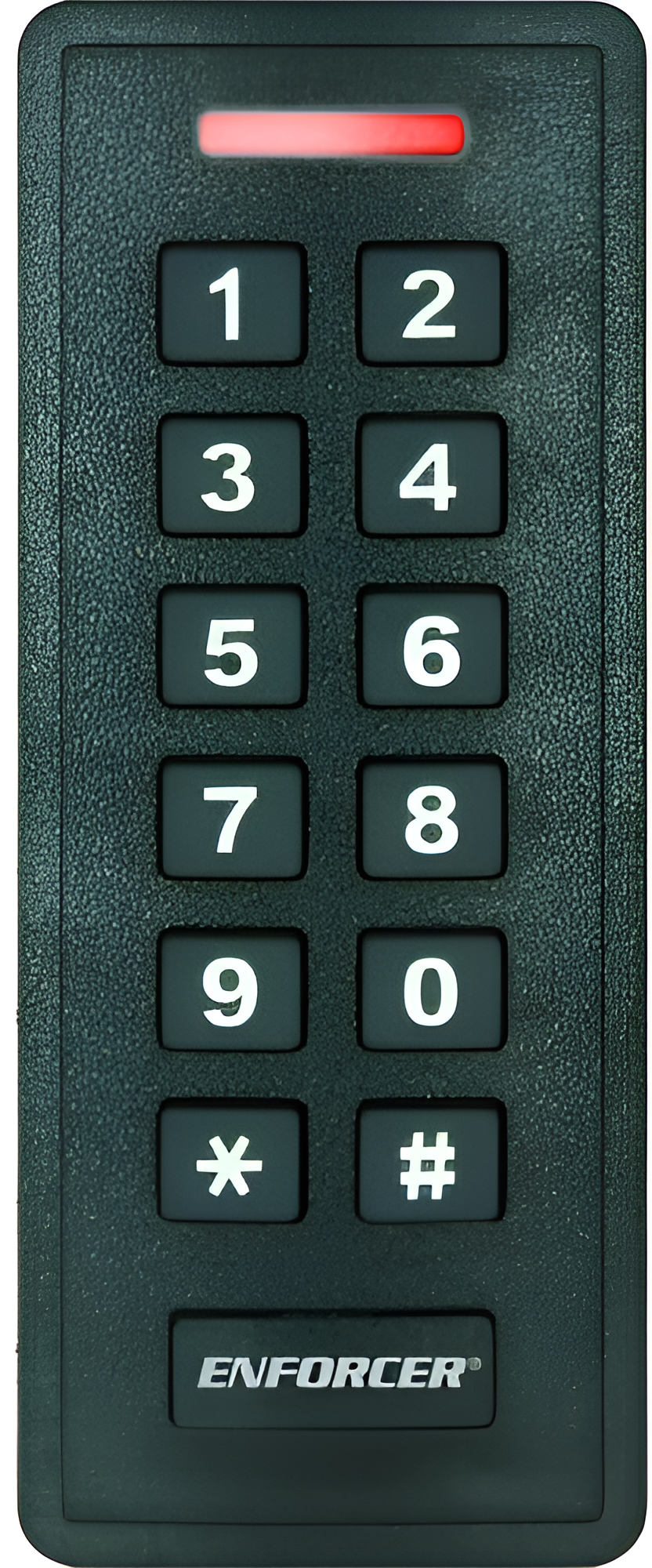

Seco-Larm SK-2612-SPQ Stand-Alone Keypad Wiegand Prox Reader, 1000 Users, 9-18VDC

Seco-Larm SK-2612-SPQ Stand-Alone Keypad Wiegand Prox Reader offers a robust solution for secure access control, accommodating up to 1,000 users, including 998 standard users and 2 duress users. This versatile keypad operates on a voltage range of 12-24 VAC/VDC, featuring low current draw of 105mA maximum, ensuring energy efficiency. With user code lengths ranging from 4 to 6 digits, the SK-2612-SPQ allows for easy programming directly on the keypad-no external programmer needed. It includes a built-in tamper alarm and supports an external alarm output, enhancing overall security. The adjustable output time can be set from 0.5 to 99 seconds or configured for toggle operation. Designed for outdoor use, the IP66-rated enclosure withstands extreme temperatures from -40°F to 140°F (-40°C to 60°C). The backlit keypad and multicolor status LED ensure visibility in various lighting conditions. This model also serves as a Wiegand reader or controller with 26 to 37 bit output, making it a flexible addition to any security system. With EEPROM memory to safeguard programmed information during power loss and an egress input for easy exit, the Seco-Larm SK-2612-SPQ is your dependable choice for access control needs.

Stand-Alone Keypad Wiegand Prox Reader, 1000 Users, 9-18VDC

Features:

• 1,000 Users (up to 998 users and 2 duress users)
• User code length 4~6 digits
• 12~24 VAC/VDC Operation
• Low current draw – 105mA max.
• Form C relay output – 2A@12VDC
• Adjustable output time – 0.5~99s, or toggle
• Built-in tamper alarm and external alarm output
• Backlit keypad and multicolor status LED
• EM 125kHz
• Outdoor rated – IP66
• Easy transfer of users to additional devices
• EEPROM Memory protects programmed information in case of power loss
• All features are programmed directly on the keypad: No need for an external programmer
• Egress input lets users exit the premises without keying in a code
• Can serve as Wiegand reader or controller†, output and input – 26~37 bits. Can serve as a Wiegand controller only when using another SK-2612-SPQ as a reader.
• 2-Door interlock
• Extreme cold tolerance to -40° F (-40° C)
• Sturdy black ABS plastic housing

Specifications:

• Operating Voltage: 12~24 VAC/VDC
• Current Draw – Standby: Standby: 40mA@12VDC. Active: 105mA@12VDC (max.)
• Outputs: Form C: 2A@12VDC. alarm: 2.5A@12VDC. Wiegand: 26~37 bits, pin output bits – 4, 8, or 10
• Egress input: N.O. Ground
• Door sensor input: N.C. Ground
• Card type: EM 125kHz
• Enclosure material: Black ABS plastic
• Operating temperature: -40°~140° F (-40°~60° C)
• Operating humidity: 10~90% non-condensing
• Dimensions: 1-15/16" x 4-3/4" x 15/16" (49 x 120 x 24mm)
• Weight: 5.8-oz (165g)

Accessories:

• PR-K1K1-AQ: Proximity keyfobs
• PR-K1S1-A: Proximity cards for prox readers
