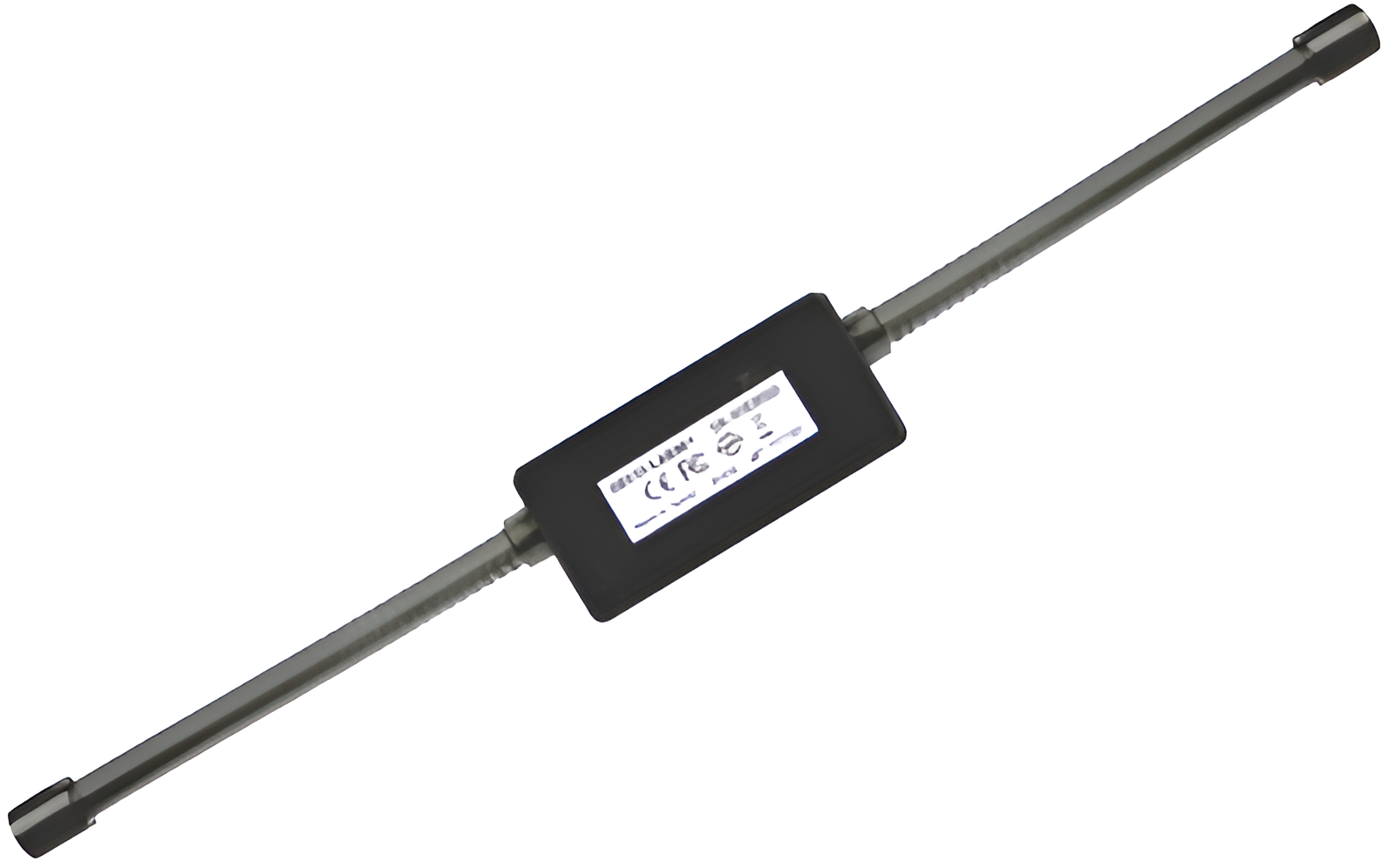

Seco-Larm SK-91ERSD Extended Range Antenna for 315 MHz, up to 1000ft Range

Seco-Larm SK-91ERSD Extended Range Antenna for 315 MHz offers a robust solution for enhancing the range and reliability of your Seco-Larm RF receivers. Designed to seamlessly integrate with the SK-910RBQ single-channel, SK-910RB2Q two-channel, SK-910R3Q three-channel, and SK-910RD4 four-channel receivers, this antenna is perfect for varied applications in access control systems. Easily connecting to your receiver’s motherboard without the need for additional wiring, the SK-91ERSD simplifies installation while providing an impressive range of up to 1000 feet. The included 9-foot cable allows flexibility in positioning the antenna for optimal performance, and double-stick mounting tape ensures secure placement. With a power supply of 5VDC ±10% and operating temperatures ranging from -4° to 158°F (-20° to 70°C), this antenna is built to perform in diverse environments. Its sensitivity of -105dBm and a bandwidth of ±1.0MHz (-3dB) ensure reliable communication, making it an essential accessory for those seeking to bolster their wireless security systems. Choose the Seco-Larm SK-91ERSD Extended Range Antenna to take your security setup to the next level, ensuring comprehensive coverage and peace of mind.

Extended Range Antenna for 315 MHz, up to 1000ft Range

Features:

• For use with these Seco-Larm RF receivers:
• SK-910RBQ – Single-channel receiver
• SK-910RB2Q – Two-channel receiver
• SK-910R3Q – Three-channel receiver
• SK-910RD4 – Four-channel receiver
• Easily plugs into a connector on the receiver’s motherboard – no extra wiring needed
• Includes 9-foot cable
• Double-stick mounting tape included

Specifications:

• Power Supply: 5VDC ±10%
• Operating Temperature: -4°~158°F (-20°~70°C)
• Sensitivity: -105dBm
• Frequency: 315MHz
• Bandwidth: ±1.0MHz (-3dB)
