Seco-Larm SM-207-5LQ/W 3/8in Diameter Magnetic Contact is designed to provide reliable protection for sliding doors and windows in spaces where traditional sensors may not fit. This magnetic contact features a closed loop system with a 1-inch gap and a normally closed (N.C.) configuration, ensuring that your entry points remain secure. The high-impact ABS plastic case, combined with a unique glue/epoxy compound, protects the internal reed switch, enhancing durability and longevity. The contact's SPST reed switch is constructed with deactivated rhodium on gold under-plating, resulting in a contact rating of 1.0A at 10VDC and a maximum of 10W. Its stubby 3/4" switch and 15" pre-wired leads make installation straightforward, while the press-fit mount with a 3/8" diameter allows for seamless integration into various applications. With an impressive operational temperature range of -15ºF to +160ºF, this magnetic contact is suitable for a variety of environments. Designed to endure up to 50 million switch cycles (0.1mA@5VDC), the Seco-Larm SM-207-5LQ/W is backed by a lifetime limited warranty, ensuring peace of mind for both professionals and homeowners.

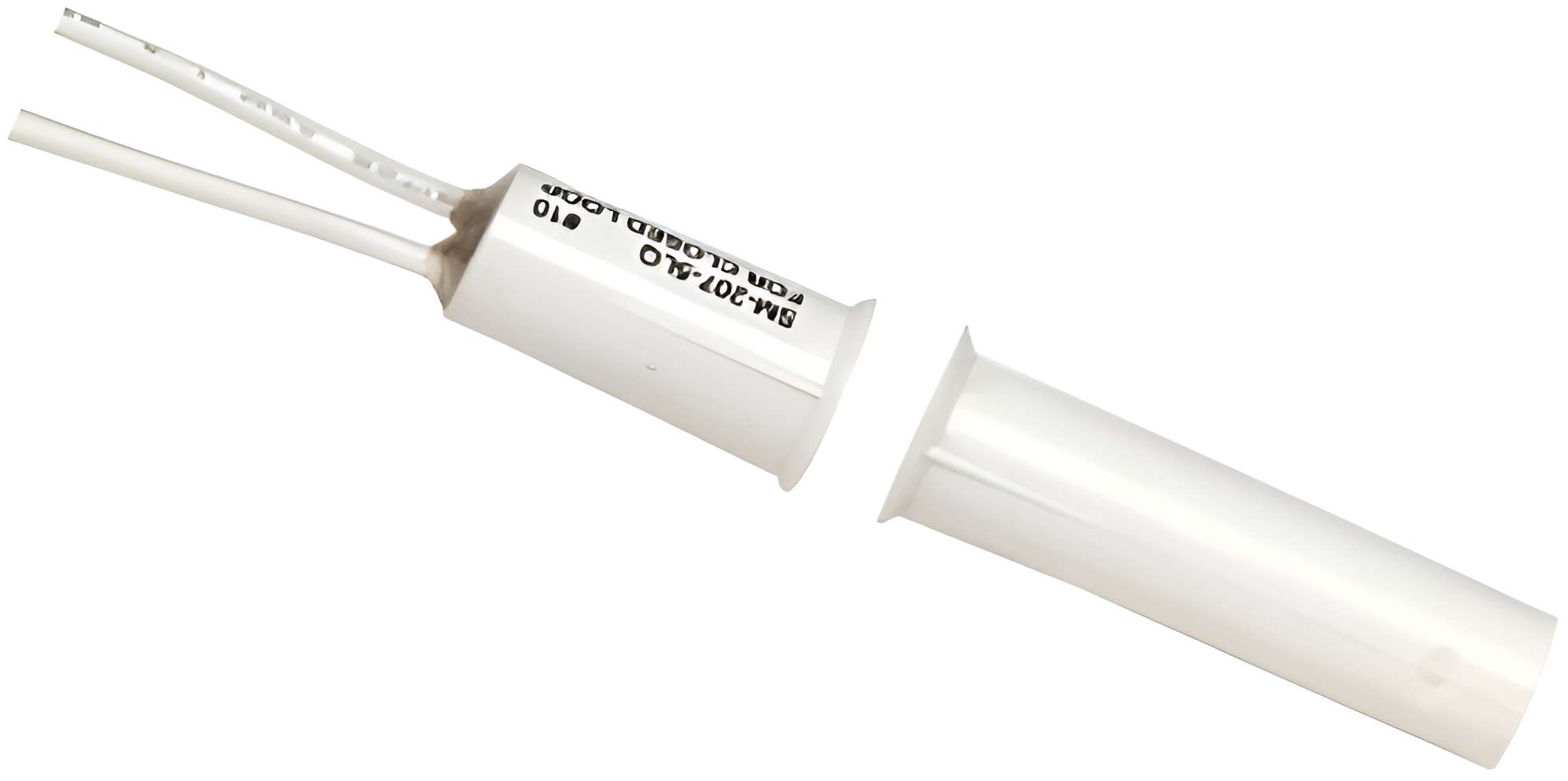

3/8in Diameter Magnetic Contact, 1in Gap, NC, White

Features:

• Used for protecting sliding doors and windows where space is limited
• Contact reed switch is SPST, deactivated rhodium on gold under-plating, for a long life
• Unique glue/epoxy compound protects reed switch
• 1" (25mm) Gap, N.C., with stubby 3/4" (19mm) switch
• 3/8", Press-fit mount
• 15", (38cm) wire leads
• Lifetime limited warranty

Specifications:

• Loop Type: Closed loop
• Electrical Configuration: N/O
• Leads: Pre-wired 15", #22
• Material – Case: High-impact ABS plastic / epoxy compound
• Material – Contact: Deactivated rhodium on gold under-plating
• Contact Rating: 1.0A@10VDC (max), 10W (max)
• Operating Temperature: -15º~+160º F (-25º~70º C)
• Switch Cycles: 50 Million (0.1mA@5VDC)
• Switch Dimensions: 3/4" x 7/16" x 3/8" (19 x 11 x 9mm)
• Magnet Dimensions: 1-3/8" x 7/16" x 3/8" (35 x 11 x 9mm)
• Magnet Type: Alnico 5
