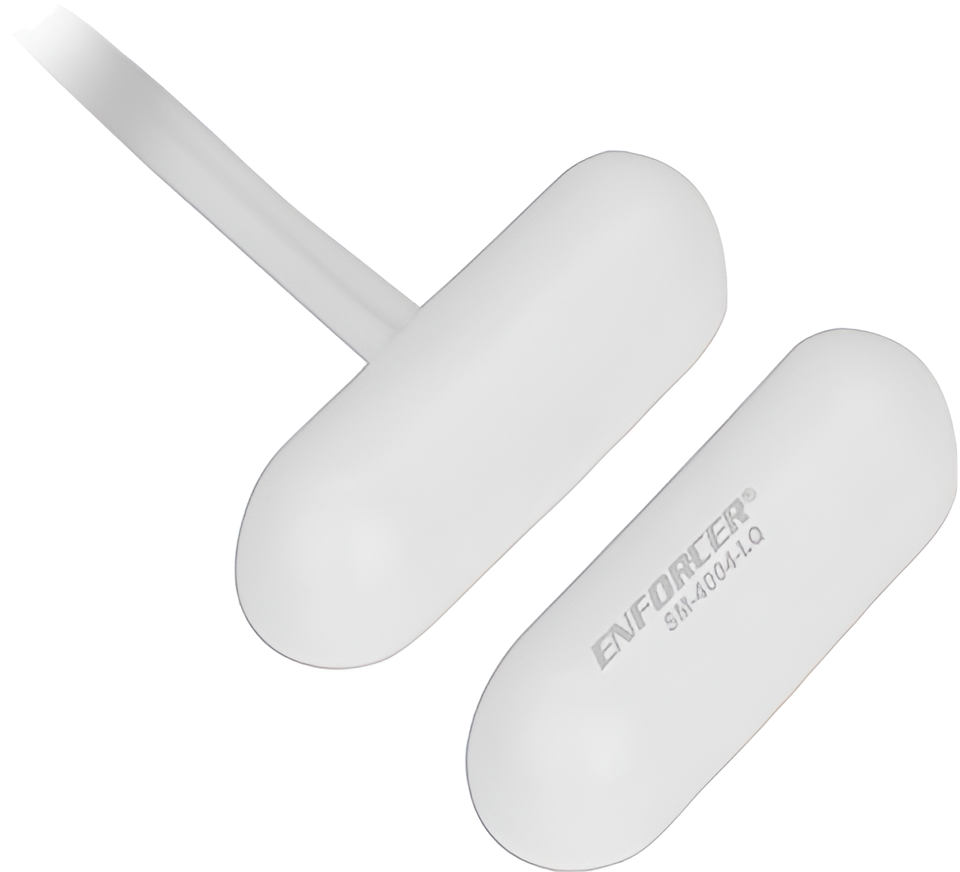

Seco-Larm SM-4004-LQ/W Capsule-Type Surface-Mount Magnetic Contact, 3/4 Gap, 18in Wire Leads, NC, White

Seco-Larm SM-4004-LQ/W Capsule-Type Surface-Mount Magnetic Contact offers a reliable and compact solution for your security needs. This miniature magnetic contact features a 3/4" gap, making it ideal for various applications in access control and burglar alarm systems. Constructed from high-impact ABS plastic, the device is designed for durability and longevity. With 18" wire leads, installation becomes hassle-free, allowing for flexible placement. The included double-sided adhesive tape simplifies mounting, ensuring a secure fit without the need for drilling. The contact reed switch operates in a normally closed (NC) configuration, with a contact rating of 1.0A at 10VDC, making it suitable for closed loop circuits. Thanks to its ruthenium on gold underplating, the SPST switch boasts an impressive lifespan of up to 50 million cycles, providing peace of mind for long-term use. Operating effectively in temperatures ranging from -15°F to 160°F (-25°C to 70°C), this magnetic contact adapts well to various environments. Seco-Larm stands behind the SM-4004-LQ/W with a lifetime limited warranty, ensuring that your investment is protected. Enhance your security setup with this dependable and efficient magnetic contact.

Capsule-Type Surface-Mount Magnetic Contact, 3/4 Gap, 18in Wire Leads, NC, White

Features:

• Miniature capsule-type surface-mount magnetic contacts
• 18" (46cm) Wire leads from center
• Adhesive mounting (double-sided tape included)
• Contact reed switch is SPST, ruthenium on gold underplating for a longer expected life
• For closed loop circuits
• 3/4" (19mm) Gap
• Lifetime limited warranty

Specifications:

• Electrical Configuration: N/O
• Terminals: 18" wire leads
• Material: High-impact ABS plastic
• Contact Rating: 1.0A@10VDC (max), 10W (max)
• Operating Temperature: -15°~160°F (-25°~70°C)
• Switch Cycles: 50 Million (0.1mA@5VDC)
• Switch Dimensions: 1" x 3/8" x 1/4" (25 x 10 x 7mm)
• Magnet Dimensions: 1" x 3/8" x 1/4" (25 x 10 x 7mm)
• Magnet Type: Rare-earth neodymium
