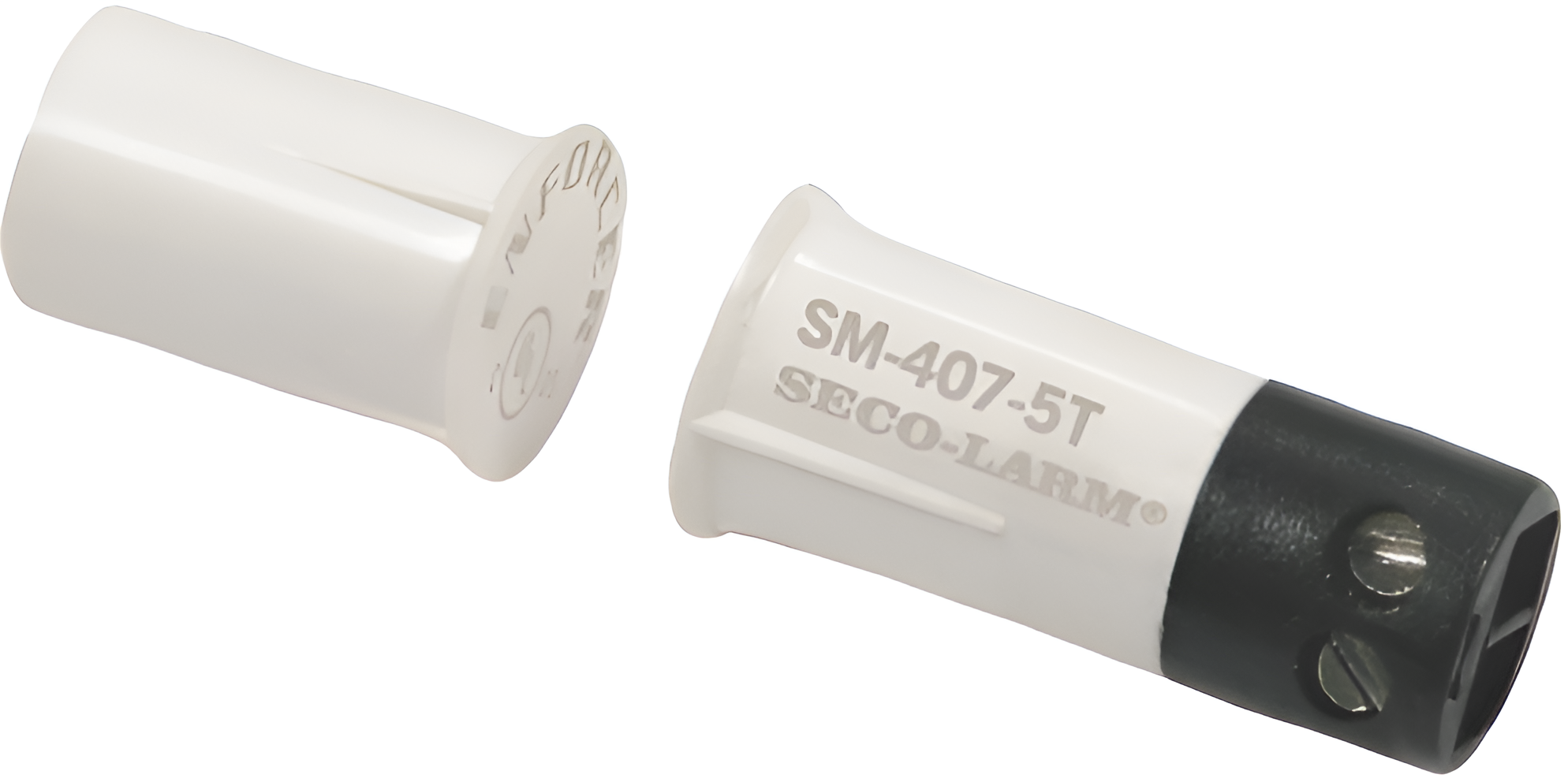

Seco-Larm SM-407-5TQ/W 3/8in Diameter Screw-Terminal Magnetic Contact, 3/4in Gap, NC, White

Seco-Larm SM-407-5TQ/W 3/8in Diameter Screw-Terminal Magnetic Contact is an ideal solution for securing sliding doors and windows in tight spaces. Designed with space efficiency in mind, this miniature contact features a 3/4" gap and is crafted from high-impact ABS plastic, ensuring durability and reliable performance. The SM-407-5TQ/W employs gold-plated screw terminals that enhance longevity and reliability, making installation straightforward and dependable. The switch and magnet are equipped with ribs that secure them firmly in place, minimizing the risk of misalignment. Its SPST contact reed switch is iridium-plated, providing a high melting point and Vickers hardness for exceptional power handling and extended life, capable of withstanding 50 million switch cycles at 0.1mA@5VDC. Operating efficiently in temperatures ranging from -15°F to 160°F (-25°C to 70°C), this magnetic contact is designed for versatility in various environments. The rare-earth neodymium magnet enhances performance, while the compact dimensions of the switch (1-1/8" x 7/16" x 3/8") and magnet (3/4" x 7/16" x 3/8") assure easy concealment. With a lifetime limited warranty, the Seco-Larm SM-407-5TQ/W is a reliable choice for your security needs.

3/8in Diameter Screw-Terminal Magnetic Contact, 3/4in Gap, NC, White

Features:

• Used for protecting sliding doors and windows where space is limited
• Gold-plated terminals for longer life and reliability
• Screw terminals
• High-impact ABS plastic
• Miniature size assures ease of concealment
• Switch and magnet have ribs for securing in holes
• Contact reed switch is SPST, iridium-plated to have a high melting point and Vickers hardness, for higher power handling and long life
• 3/8" Press-fit
• 3/4" (19mm) Gap
• Lifetime limited warranty

Specifications:

• Electrical Configuration: N/O
• Contact Rating: 1.0A@10VDC (max), 10W (max)
• Operating Temperature: -15°~160°F (-25°~70°C)
• Switch Cycles: 50 Million (0.1mA@5VDC)
• Switch Dimensions: 1-1/8" x 7/16" x 3/8" (28 x 11 x 9mm)
• Magnet Dimensions: 3/4" x 7/16" x 3/8" (19 x 11 x 9mm)
• Magnet Type: Rare-earth neodymium
