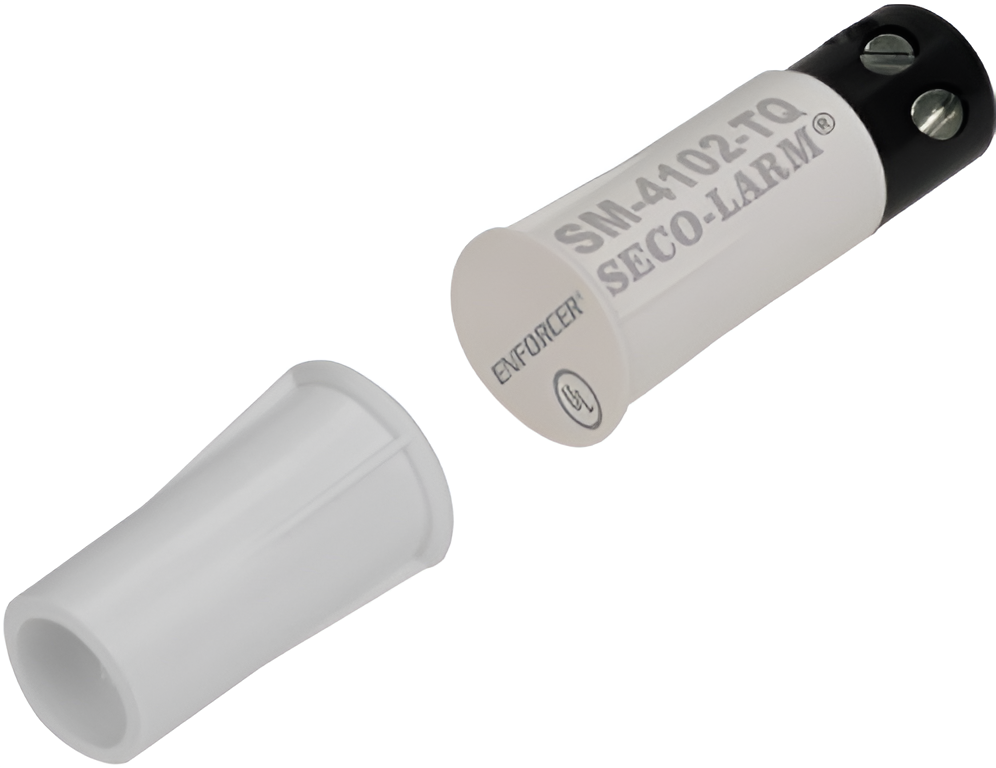

Seco-Larm SM-4102-TQ/W 3/8in Diameter Screw-Terminal Magnetic Contact, 1in Gap, NC, White

Seco-Larm SM-4102-TQ/W 3/8in Diameter Screw-Terminal Magnetic Contact is an ideal solution for securing sliding doors and windows where space is at a premium. This compact magnetic contact features a 1-inch gap and is designed for closed loop circuits, ensuring reliable access control that blends seamlessly into your environment. Crafted from high-impact ABS plastic, the miniature size of the SM-4102-TQ/W allows for easier concealment, making it a perfect choice for discrete installations. The gold-plated screw terminals enhance longevity and reliability, while the iridium-plated reed switch boasts a high melting point and Vickers hardness, providing superior power handling and an impressive lifespan of up to 50 million switch cycles. With a robust operating temperature range of -15°F to 160°F (-25°C to 70°C), this magnetic contact is built to perform in various conditions. The switch dimensions measure 1-1/8" x 7/16" x 3/8", and the magnet is a powerful rare-earth Neodymium type, ensuring optimal performance. Backed by a lifetime limited warranty, the Seco-Larm SM-4102-TQ/W not only enhances security but also offers peace of mind for both professionals and homeowners alike.

3/8in Diameter Screw-Terminal Magnetic Contact, 1in Gap, NC, White

Features:

• Used for protecting sliding doors and windows where space is limited
• 3/8" (10mm) Press-fit mount
• Gold-plated terminals for longer expected life and reliability
• Screw terminals
• High-impact ABS plastic
• Miniature size for easier concealment
• Switch and magnet have ribs for securing in holes
• Contact reed switch is SPST, iridium-plated to have a high melting point and Vickers hardness for higher power handling and longer expected life
• For closed loop circuits
• 1" (25mm) Gap
• Lifetime limited warranty

Specifications:

• Electrical Configuration: N/O
• Contact Rating: 0.1A@100VDC (max), 1.0A@10VDC (max), 10W (max)
• Operating Temperature: -15°~160°F (-25°~70°C)
• Switch Cycles: 50 Million (0.1mA@5VDC)
• Switch Dimensions: 1-1/8" x 7/16" x 3/8" (28 x 11 x 9mm)
• Magnet Dimensions: 3/4" x 7/16" x 3/8" (19 x 11 x 9mm)
• Magnet Type: Rare-earth Neodymium
