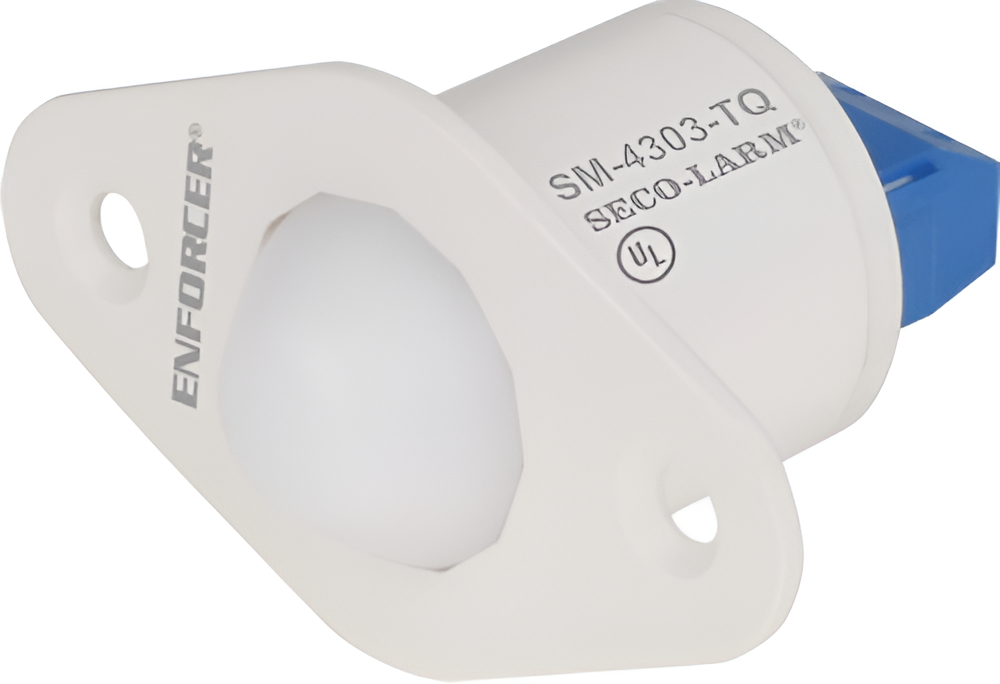

Seco-Larm SM-4303-TQ/W Rollerball-Type Screw-Terminal Recessed Magnetic Contact NC, 1/4in Travel, NC

Seco-Larm SM-4303-TQ/W Rollerball-Type Screw-Terminal Recessed Magnetic Contact NC offers a reliable solution for securing sliding doors and windows in tight spaces. This elegantly designed magnetic contact features a rollerball with screw connectors, ensuring a secure and stable installation. The device incorporates a magnet and a reed switch housed within a robust high-impact ABS plastic casing, providing durability and longevity. With a closed loop design, the SM-4303-TQ/W operates on a normally closed (NC) configuration. The contact reed switch boasts an impressive lifespan of up to 50 million switch cycles, with a contact rating of 0.1A at 100VDC, making it suitable for various applications. The 360º rollerball plunger allows for a travel of 1/4" (6mm), accommodating slight movements in doors or windows without compromising security. Operating effectively in temperatures ranging from -15°F to 160°F (-25°C to 70°C), this magnetic contact is versatile enough to handle various environmental conditions. The package includes spacers and screws for easy installation, while the lifetime limited warranty provides peace of mind. Enhance your security setup with the Seco-Larm SM-4303-TQ/W, designed for both performance and reliability.

Rollerball-Type Screw-Terminal Recessed Magnetic Contact NC, 1/4in Travel, NC

Features:

• Rollerball with screw connectors, white
• Used for protecting sliding doors and windows where space is limited
• Magnet and reed switch contained in housing
• Contact reed switch is SPST, ruthenium on gold under plating, for a long life
• Spacer and screws included
• 360º Rollerball plunger travel is 1/4" (6mm)
• Screw terminals
• Lifetime limited warranty

Specifications:

• Loop Type: Closed loop
• Electrical Configuration: N/O
• Material: High-impact ABS plastic
• Contact Rating: 0.1A@100VDC (max), 1.0A@10VDC (max), 10W (max)
• Operating Temperature: -15°~160°F (-25°~70°C)
• Switch Cycles: 50 Million (0.1mA@5VDC)
• Switch Dimensions: 25/32" x 3/4" x 1/4" (19.8 x 19 x 6.3 5mm)
• Magnet Type: Rubber
