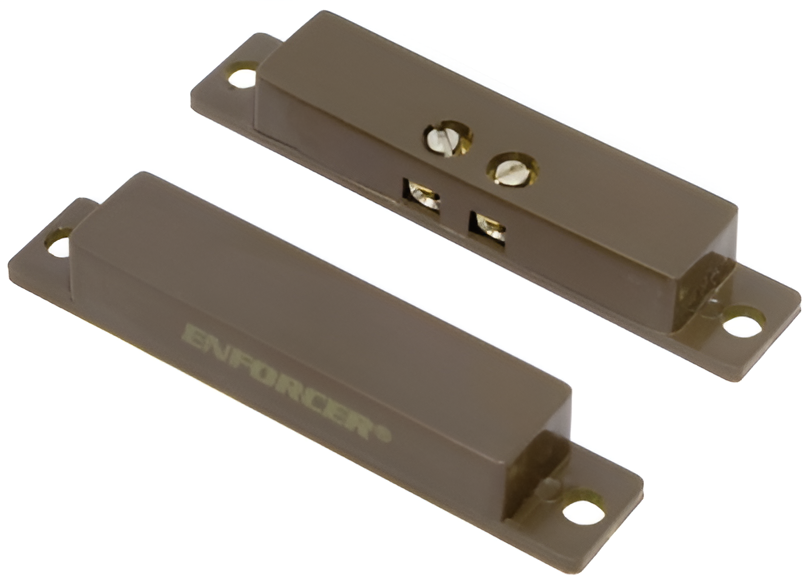

Seco-Larm SM-431-TQ/B Screw-Terminal Surface-Mount Magnetic Contact, 1in Gap, NC, Brown

Seco-Larm SM-431-TQ/B Screw-Terminal Surface-Mount Magnetic Contact features a compact design, ideal for a variety of security applications. This miniature surface-mount magnetic contact is built to last, equipped with gold-plated screw terminals that enhance longevity and reliability. The included tape for covering the screw terminals ensures a neat installation. Designed with a closed loop, it operates with a 1-inch (25mm) gap and utilizes an iridium-plated SPST contact reed switch, which boasts a high melting point and exceptional Vickers hardness. This combination allows for higher handling power and an impressive lifespan, rated for up to 50 million switch cycles at 0.1mA@5VDC. Constructed from high-impact ABS plastic, the SM-431-TQ/B is designed to withstand temperatures ranging from -15°F to 160°F (-25°C to 70°C). The rare-earth neodymium magnet enhances its sensitivity and effectiveness. Mounting screws and double-sided tape are included for easy setup, while the removable mounting tabs offer flexible installation options. With a contact rating of 1.0A at 10VDC and a maximum power of 10W, this magnetic contact is a reliable choice for alarm systems and access control applications. Enjoy peace of mind with a lifetime limited warranty backing your investment.

Screw-Terminal Surface-Mount Magnetic Contact, 1in Gap, NC, Brown

Features:

• Miniature surface-mount magnetic contacts
• Gold-plated screw terminals for longer life and reliability
• Tape to cover screw terminals included
• Contact reed switch is SPST, iridium-plated to have a high melting point and Vickers hardness, for higher handling power and longer life
• 1" (25mm) Gap
• Closed loop
• Mounting screws and double-sided tape included
• Lifetime limited warranty

Specifications:

• Electrical Configuration: N/O
• Mounting Tabs: Yes / removable
• Material – Case: High-impact ABS plastic
• Contact Rating: 1.0A@10VDC (max), 10W (max)
• Operating Temperature: -15°~160°F (-25°~70°C)
• Switch Cycles: 50 Million (0.1mA@5VDC)
• Switch Dimensions: 2" x 3/8" x 1/4" (51 x 10 x 6mm)
• Magnet Dimensions: 2" x 3/8" x 1/4" (51 x 10 x 6mm)
• Magnet Type: Rare-earth neodymium
