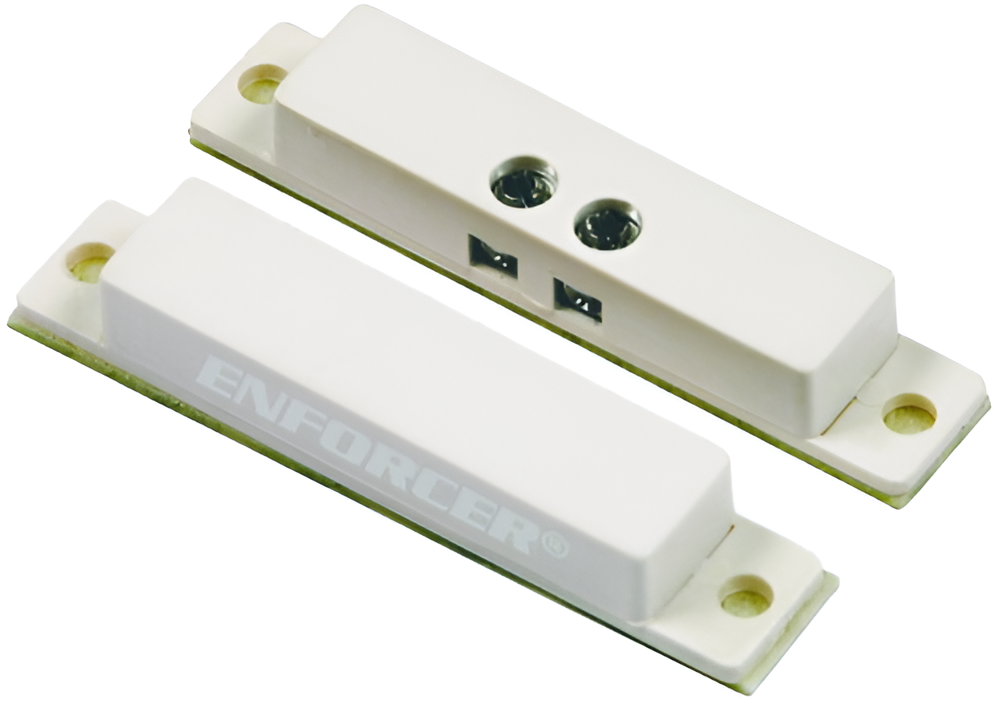

Seco-Larm SM-431-TQ/W Screw-Terminal Surface-Mount Magnetic Contact is an ideal solution for securing your premises with ease and reliability. This miniature surface-mount magnetic contact features a 1-inch gap and is designed to provide a closed-loop security system. With gold-plated screw terminals, it ensures longer life and dependable performance in various environments. The contact reed switch is SPST and iridium-plated, offering a high melting point and Vickers hardness for enhanced handling power and durability. Designed to withstand operating temperatures ranging from -15°F to 160°F (-25°C to 70°C), this contact operates effectively under diverse conditions. It can handle a contact rating of up to 1.0A@10VDC, making it suitable for a range of applications. Installation is user-friendly, as it includes removable mounting tabs, screws, and double-sided tape for versatile placement options. The high-impact ABS plastic case ensures robust protection, while the rare-earth neodymium magnet provides strong attraction. With an impressive lifespan of 50 million switch cycles, the Seco-Larm SM-431-TQ/W is built to last. Backed by a lifetime limited warranty, this magnetic contact is a reliable choice for your access control and security needs.

Screw-Terminal Surface-Mount Magnetic Contact, 1in Gap, NC, White

Features:

• Miniature surface-mount magnetic contacts
• Gold-plated screw terminals for longer life and reliability
• Tape to cover screw terminals included
• Contact reed switch is SPST, iridium-plated to have a high melting point and Vickers hardness, for higher handling power and longer life
• 1" (25mm) Gap
• Closed loop
• Mounting screws and double-sided tape included
• Lifetime limited warranty

Specifications:

• Electrical Configuration: N/O
• Mounting Tabs: Yes / removable
• Material – Case: High-impact ABS plastic
• Contact Rating: 1.0A@10VDC (max), 10W (max)
• Operating Temperature: -15°~160°F (-25°~70°C)
• Switch Cycles: 50 Million (0.1mA@5VDC)
• Switch Dimensions: 2" x 3/8" x 1/4" (51 x 10 x 6mm)
• Magnet Dimensions: 2" x 3/8" x 1/4" (51 x 10 x 6mm)
• Magnet Type: Rare-earth neodymium
