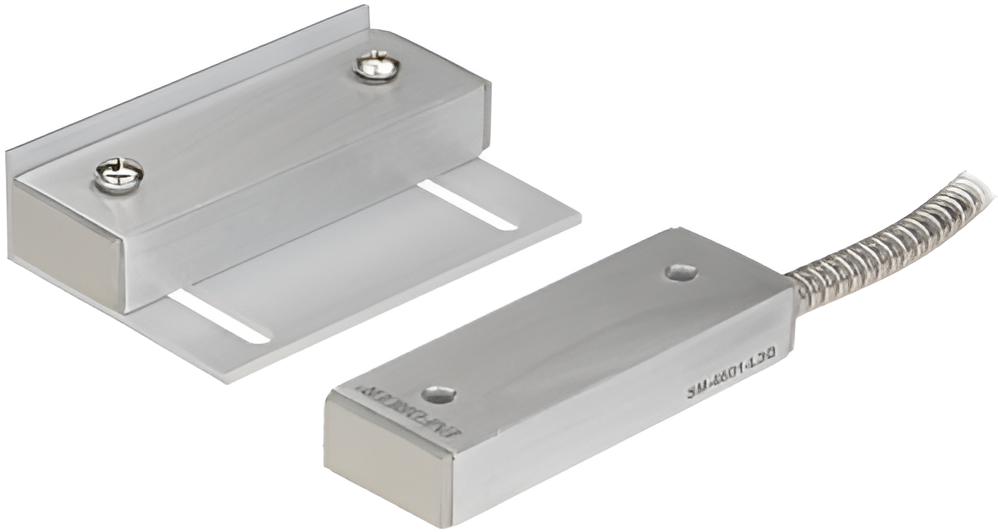

Seco-Larm SM-4601-LQ Industrial Wide-Gap Magnetic Contact, 3in Gap, 36in Leads, NC

Seco-Larm SM-4601-LQ Industrial Wide-Gap Magnetic Contact is expertly designed for industrial applications requiring a reliable surface mount solution. With a substantial 3-inch gap, this contact is ideal for spaces where traditional sensors may fall short. Its rugged aluminum housing provides durability, while the IP54 weather-resistant rating ensures dependable performance even in outdoor environments. This magnetic contact features an SPST contact type with iridium-plated components, boasting a high melting point and impressive Vickers hardness. Such attributes allow for superior power handling and longevity, making it a smart choice for demanding installations. The included mounting bracket simplifies setup, and the 36-inch wire leads are protected within an armored cable, enhancing installation ease and safety. Operating effectively in temperatures ranging from -15°F to 160°F, the SM-4601-LQ can endure extreme conditions, with an impressive lifespan featuring up to 50 million switch cycles at low loads. The rare-earth neodymium magnet ensures strong performance, making this contact a reliable choice for access control, alarms, and security applications. Backed by a lifetime limited warranty, the Seco-Larm SM-4601-LQ is a solid investment for professionals and knowledgeable homeowners alike, ensuring peace of mind in security solutions.

Industrial Wide-Gap Magnetic Contact, 3in Gap, 36in Leads, NC

Features:

• Useful for industrial situations where a wide-gap, surface mount contact is needed
• Rugged aluminum housing
• IP54 weather-resistant and sealed for outdoor use
• Contact Type: SPST, iridium-plated to have a high melting point and Vickers hardness, for higher power handling and long life
• Mounting bracket included
• 36" (91cm) wire leads enclosed in armored cable
• 3" (76mm) Gap
• Lifetime limited warranty

Specifications:

• Contact Rating: 0.1A@100VDC (max), 1.0A@10VDC (max), 10W (max)
• Operating Temperature: -15°~160°F (-25°~70°C)
• Switch Cycles: 50 Million (0.1mA@5VDC)
• Switch Dimensions: 3" x 1" x 1/2" (76.2 x 25.4 x 12.7mm)
• Magnet Dimensions: 3" x 1" x 1/2" (76.2 x 25.4 x 12.7mm)
• Magnet Type: Rare-earth neodymium
