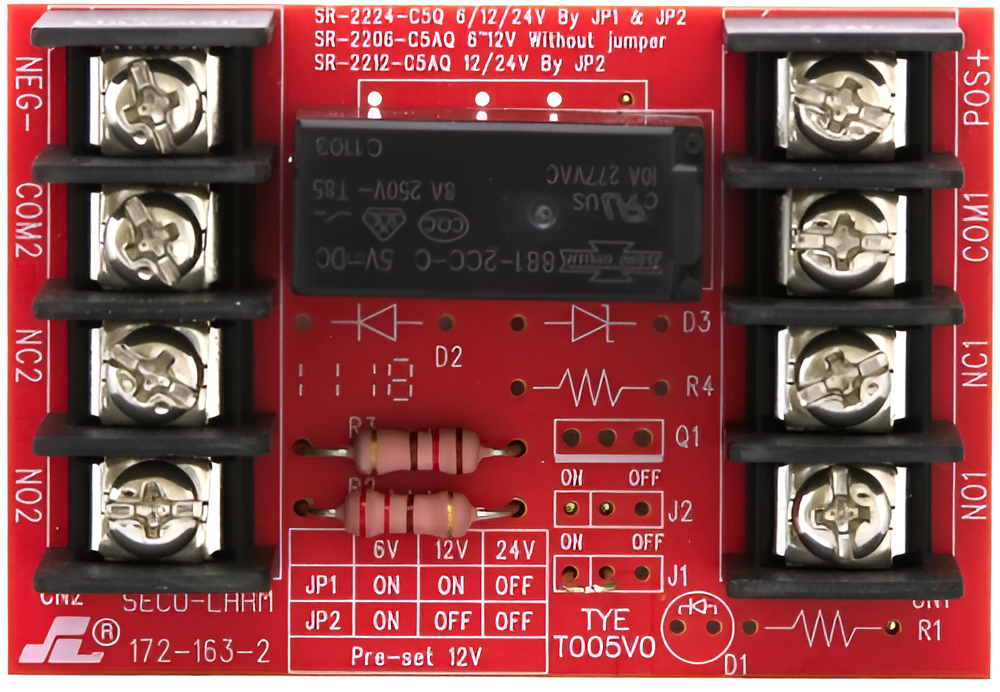

Seco-Larm SR-2212-C5AQ Heavy Duty Relay Board 12/24VDC DPDT is an essential component for various applications requiring reliable relay functionality. Designed with versatility in mind, this relay board operates on a trigger voltage of 12/24VDC and features a single 5A form C DPDT relay. Its pre-mounted design allows for easy installation, making it a great choice for both professionals and knowledgeable homeowners. The SR-2212-C5AQ simplifies connections with screw terminals, eliminating the need for soldering and reducing installation time. The voltage selection is easily adjustable via a jumper, ensuring flexibility to meet specific project needs. With a compact size of 2-3/4" x 1-7/8" x 3/4" and weighing just 2 ounces, this relay board can fit into a variety of setups without taking up much space. This heavy-duty relay board is perfect for access control systems and other hardwired applications, providing dependable performance with a current draw of only 70mA at 12/24VDC. For those seeking additional options, Seco-Larm offers a wide selection of relays, including single or dual configurations with varying current ratings and sensitivity levels. Choose the SR-2212-C5AQ for a robust and efficient relay solution.

Heavy Duty Relay Board 12/24VDC DPDT

Features:

• 12/24VDC Trigger voltage, one 5A form C DPDT relay
• For any application where relays are required
• Pre-mounted to easy-to-install modules
• Screw terminals allow easy installation without soldering or other time-consuming connections
• Wide-selection of additional relays is available: Choose single or dual relays, low-current or heavy-duty operation, and high-sensitivity or normal-sensitivity

Specifications:

• Operating Voltage: 12/24 VDC
• Voltage Selection: Jumper
• Relay Ratings: 5A
• No. of Relays: 1
• Current Draw: 70mA@12/24VDC
• Dimensions: 2-3/4" x 1-7/8" x 3/4" (70 x 48 x 20mm)
• Weight: 2-oz (55g)
