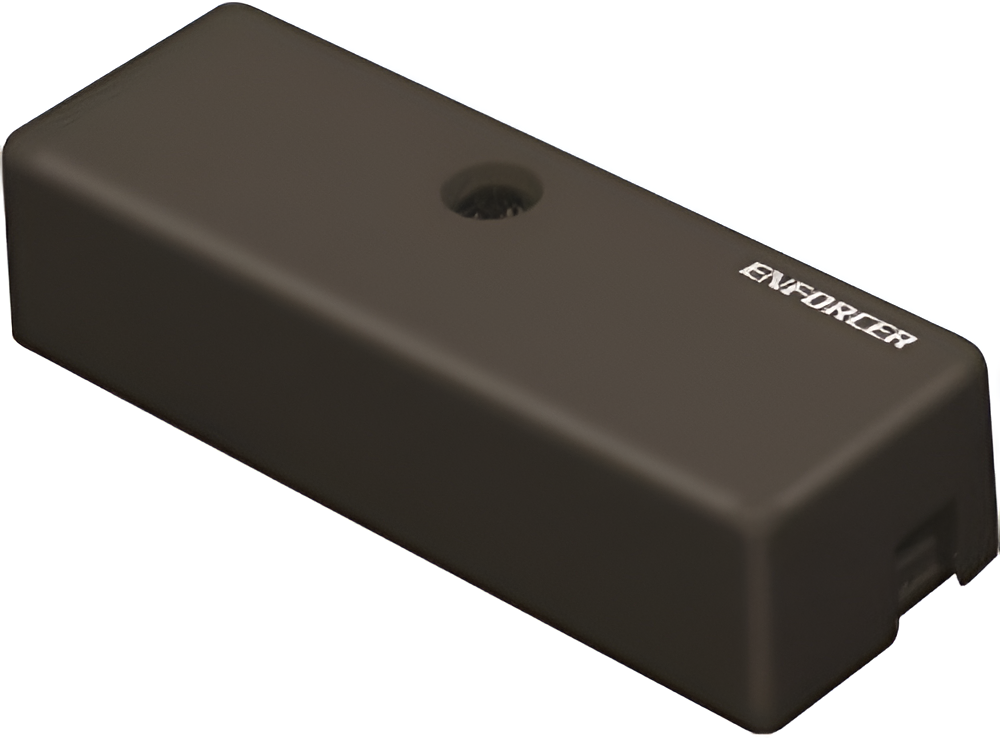

Seco-Larm SS-040Q/BR Adjustable Sensitivity Vibration Detector, Brown

Seco-Larm SS-040Q/BR Adjustable Sensitivity Vibration Detector, Brown is an essential component for enhancing security against forced entry. This compact mini shock and vibration detector is engineered to activate an alarm when significant vibrations are detected on protected surfaces, such as walls, ceilings, windows, and safes. It seamlessly integrates into closed-circuit alarm systems, making it a versatile choice for various applications. Featuring adjustable contact pressure, the SS-040Q/BR can be fine-tuned to respond effectively on different surfaces, including glass, wood, steel, and brick. The device is constructed with pure silver contacts that are gold-plated, ensuring reliable performance over time. A built-in tamper switch adds an extra layer of security, alerting you to any unauthorized attempts at disarming the system. The detector is housed in a durable, dust-tight ABS case and is designed for discreet installation, measuring just 2-3/8" x 13/16" x 5/8". It operates effectively in a range of environments, with an operating temperature of -40°F to 167°F and humidity levels of 5% to 90%. With an estimated lifespan of over 100,000 cycles, the Seco-Larm SS-040Q/BR is a reliable choice for those seeking dependable security solutions.

Adjustable Sensitivity Vibration Detector, Brown

The Enforcer mini shock/vibration detector is designed for protection against forced entry by a hammer, saw, crowbar, etc. through walls, ceilings, windows, safes, cabinets, etc. For use in closed-circuit alarm systems, it will initiate an alarm when a vibration of considerable force strikes the protected surface. A built-in tamper switch is independently wired from the vibration detector for enhanced security. Vibration contacts are adjustable to respond on any surface – glass, wood, steel, plasterboard, or brick. Pure silver contacts with gold plating ensure years of long-term operation. Its compact, dust-tight ABS case is easily mounted with double-sided adhesive tape.

Features:

• For use in closed-circuit alarm systems
• Pure silver contacts with gold plating ensure reliable and long-term operation
• Ideal for protecting glass windows, showcases, solid walls, ceilings, safes, cabinets, motorcycles, skylights, etc.
• Small size for discreet installation
• Built-in tamper switch provides enhanced security
• Adjustable contact pressure for different surfaces
• Detects a vibration/shock on a protected surface and activates an alarm
• Available in brown or white

Specifications:

• Circuit type: N.C., Momentarily open when activated
• Current rating: 1A@50VDC
• Contact pressure: Adjustable from 1 to 50 grams but recommended setting between 5 and 25 grams only. Supplied with pressure of approx. 6 grams
• Contact break time: Approx. 45ms max. (at 6-gram pressure)
• Estimated life: Over 100,000 cycles
• Housing: ABS resin
• Operating humidity: 5~90%, non-condensing
• Operating temperature: -40°~167° F (-40°~75° C)
• Dimensions: 2-3/8" x 13/16" x 5/8" (60 x 21 x 15mm)
• Weight: 0.7-oz (20g)
