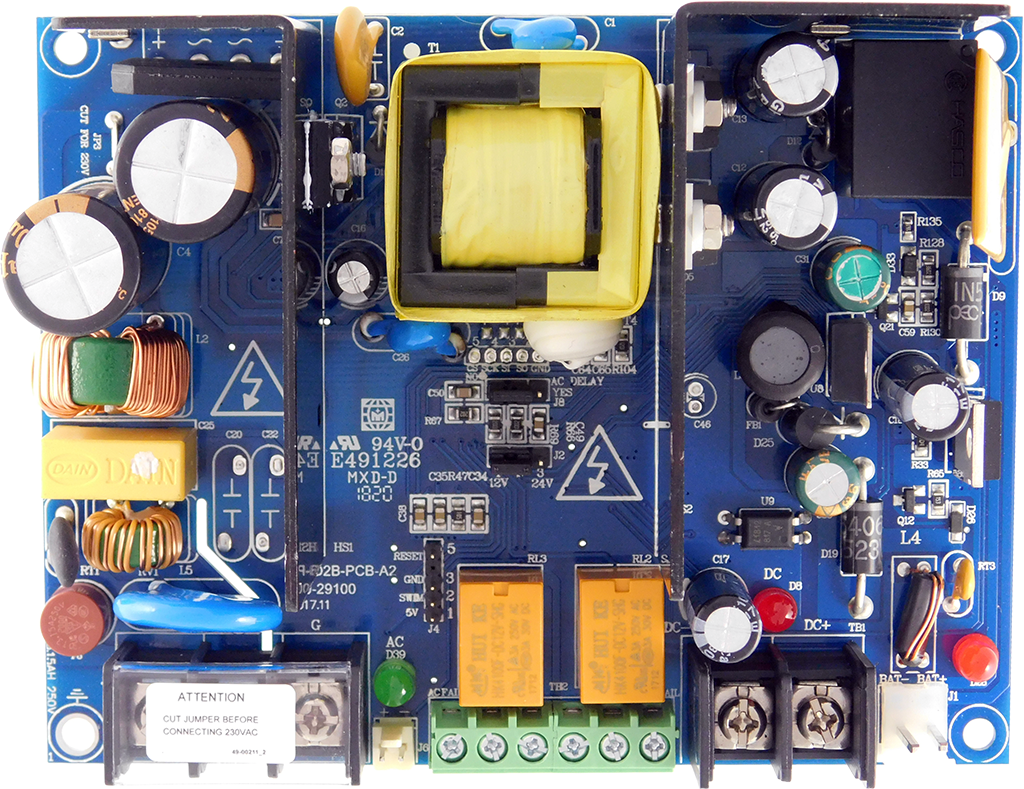

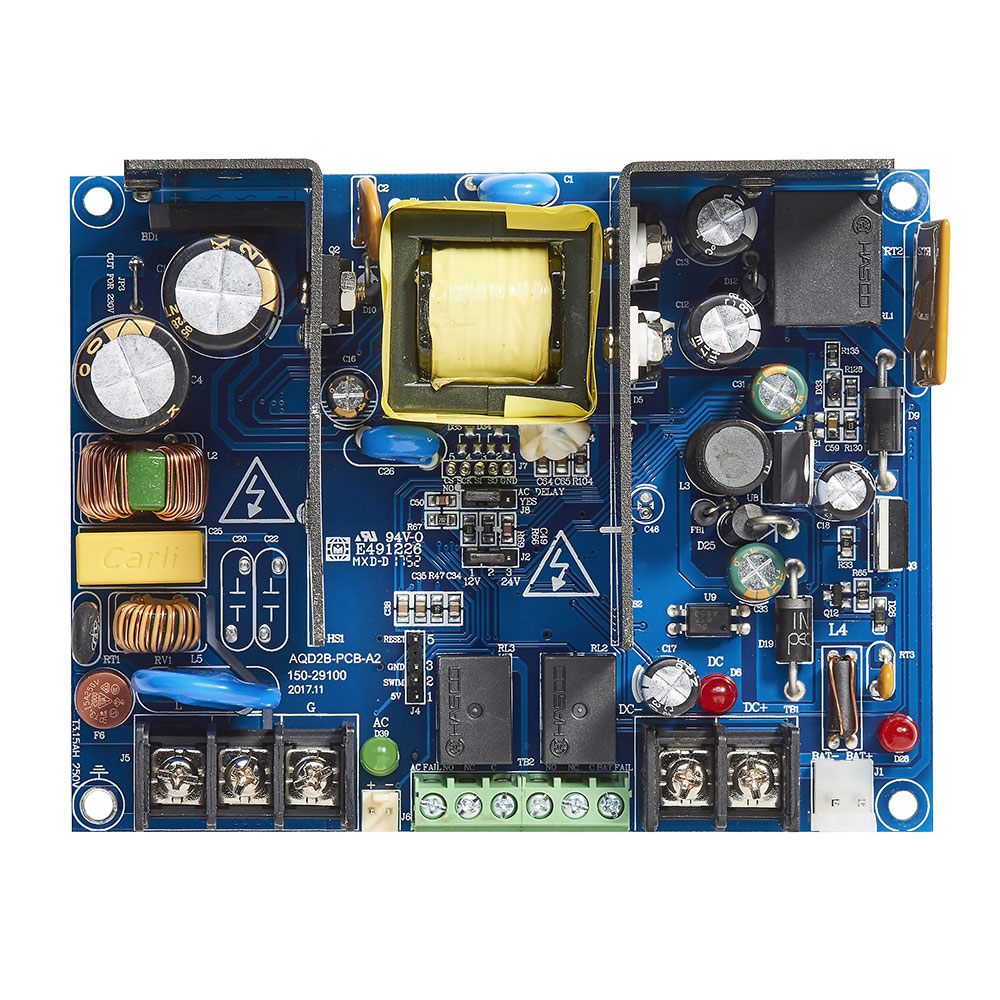

Securitron AQD2B Board Only 12/24vdc 2a Power Supply

Your Price: $179.55

Retail Price:$252.000

Your Savings:$72.45(29%)

Power Supply 2 Amp 12/24VDC, Board Only

Part Number : STR_AQD2B

Availability: 6 In Stock

Quantity

Description

Securitron AQD2B Board Only 12/24vdc 2a Power Supply

The Securitron AccuPower AQD2 Series of switching power supplies are dual voltage, supervised units with a Battery charger. These field selectable units have a fast Battery charge reserve. They provide a maximum 2As at 12 VDC or 1.5As at 24 VDC, with up to eight independently controlled, power limited outputs. Rated up to 2.8A/1.4A continuous output. Dual-voltage 12/24 VDC field selectable. Tolerates brownout or overvoltage input from 90-240 VAC. Thermal shutdown protection comes with auto restart. Circuit breaker protects against Overcurrent and reverse Battery faults. Includes Battery charger and power supervision. Low Battery disconnect prevents deep discharge. Dedicated voltage enables faster Battery charging even under full load. MagnaCare lifetime replacement, no fault warranty. Power supply outputs are Class 2 power limited. Expandable up to eight independently controlled power limited outputs. Available with configurable access control input/outputs with fire trigger in either PTC or with fuse/ dry contact option, fire relay only, or configurable outputs with fire relay input. LED indicators and form "C" contacts provide supervision. Universal input 90-240 VAC. Supports up to two sealed gel, AGM or wet lead acid batteries. Includes 14" x 9" x 3.5" cabinet. Operating temperature is between -4 to +104F (-20 to +40C).

Attributes

Alternate Codes: AQD2B

Amperage: 2 Amp

Category: Access Control, Alarm Power Supplies, Alarms & Intercom, Burglar Alarms, CCTV Products, Power Supplies, Wire & Power Supplies

Commercial Residential: Commercial

Door Application: Power Supplies

Enclosure: Board Only No Enclosure

Finish: White

Finish Description: Applied

Finish Family: White

Installation: Commercial

Limited Warranty: Lifetime

Output Amps: 2 Amps

Output Volts: 12/24 VDC

Pack Qty: 1

Power Supply Type: Dual Voltage, Enclosure, Integrated Fire Alarm Interface, Switching Power Supplies, UL Listed

Series: Securitron Power Supplies

Subtype: Power Supplies

Transformer Type: DC

Type: ACCESS CONTROL

Unit of Measure: Each
