Securitron AQD6-8F8R2 Kit - Power Distribution Board - 8 Outpu

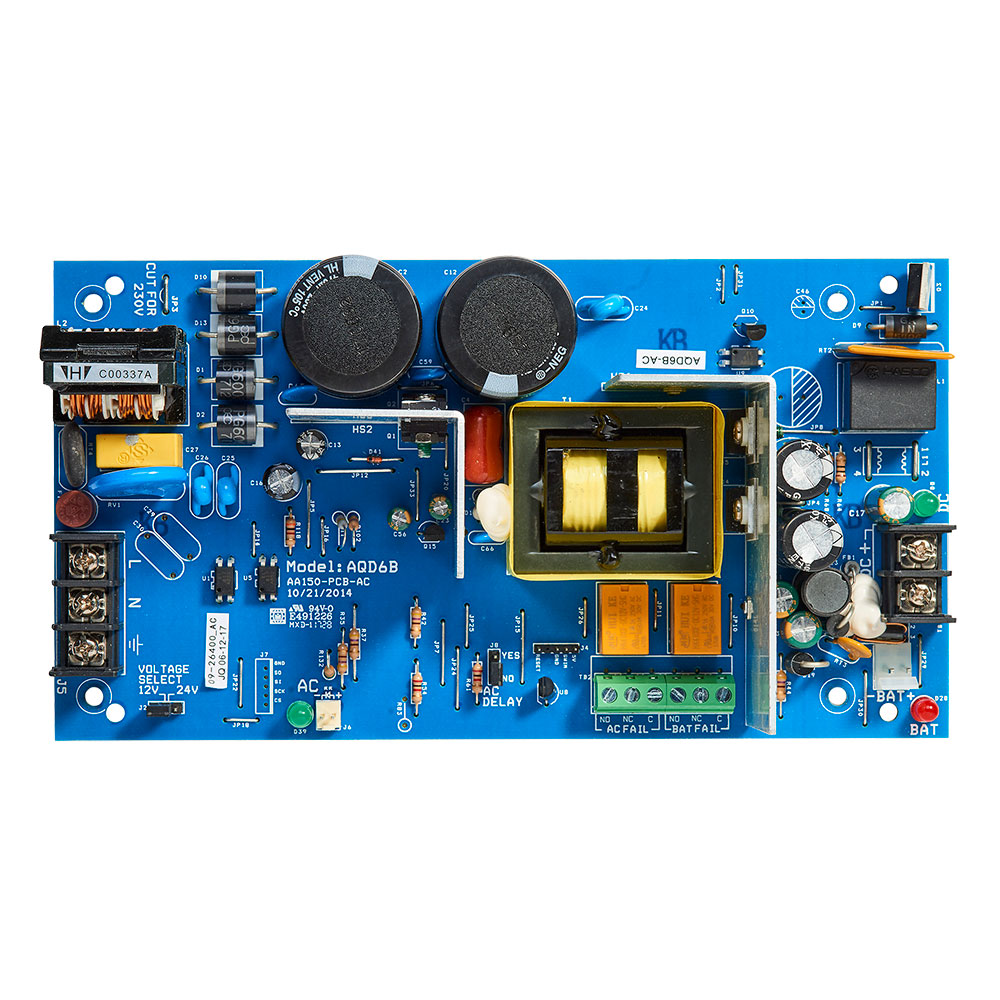

Images may not represent actual product and finish

Securitron AQD6-8F8R2 Kit - Power Distribution Board - 8 Outpu

Your Price: $488.83
Retail Price:$670.000
Your Savings:$181.17(27%)
Power Supply with Enclosure 6A, 12/24VDC, 8 Outputs, 2A Glass Fuses, 8 Relays, Fire Trigger
Part Number : STR_AQD68F8R2
Availability: 240 In Stock
Securitron AQD6-8F8R2 Kit - Power Distribution Board - 8 Outpu

The Securitron AQD6 Series of switching power supplies are dual voltage supervised units with a Battery charger designed to power magnetic locks, electric strikes, card readers, sensors, access control boards and other devices in access control systems. The AQD6 Series can also be used to power DC cameras and other DC locking equipment. These units provide field selectable 6A at 12 or 24 VDC with up to 16 independently controlled power limited outputs. The AQD6 is Securitron's first power supply series that meets UL 294 6th Edition. Dual-voltage 6A 12 or 24 VDC field selectable continuous output. Tolerates brownout or overvoltage input ± 15% of nominal voltage. Thermal shutdown protection with auto restart. Circuit breaker protects against overcurrent and reverse Battery faults. Dedicated Battery charging circuit prevents overvoltage on locking devices. Expandable up to 16 outputs; Class 2 power limited outputs. Available with a single relay fire trigger or individually fire trigger relayed outputs. MagnaCare lifetime replacement, no fault warranty. Supports up to two sealed gel, AGM or wet lead acid batteries. High efficiency: 90% at 24V output, full load. Operating temperature is from -4 to +122F [-20 to +50C].

Attributes

Alternate Codes: AQD6-8F8R2, AQD68F8R2

Amperage: 6 Amp

Category: Access Control, Alarm Power Supplies, Alarms & Intercom, Burglar Alarms, CCTV Products, Power Supplies, Wire & Power Supplies

Commercial Residential: Commercial

Depth: 4.75

Distribution Board Quanity: 8 Distribution Boards

Door Application: Power Supplies

Finish: White

Finish Description: Applied

Finish Family: White

Fire Alarm Interface: Yes

Fuse Rating [ Amp]: 2

Fuse Type: Glass fuse

Fused Outputs: 8

Height: 14

Installation: Commercial

Limited Warranty: Lifetime

Maximum Operating Temperature (° F): 122

Minimum Operating Temperature (° F): -4

Monitoring Options: Yes

Number of Outputs: 8

Number of Relays: 8

Output Amps: 6 Amps

Output Voltage: 12.5/25

Output Volts: 12/24 VDC

Pack Qty: 1

Power Supply Type: Switching

Relay Amperage: 2 Amps Each

Relay Number: 1 Relay

Series: Securitron Power Supplies

Subtype: Power Supplies

Transformer Type: DC

Type: ACCESS CONTROL

Unit of Measure: Each

Voltage: 12/24

Width: 14
