Securitron AQD6 Power Supply

Your Price: $296.40

Retail Price:$494.000

Your Savings:$197.60(40%)

Power Supply, 12/24VDC 6A, 1 Output

Part Number : STR_AQD6

Availability: 305 In Stock

Quantity

Description

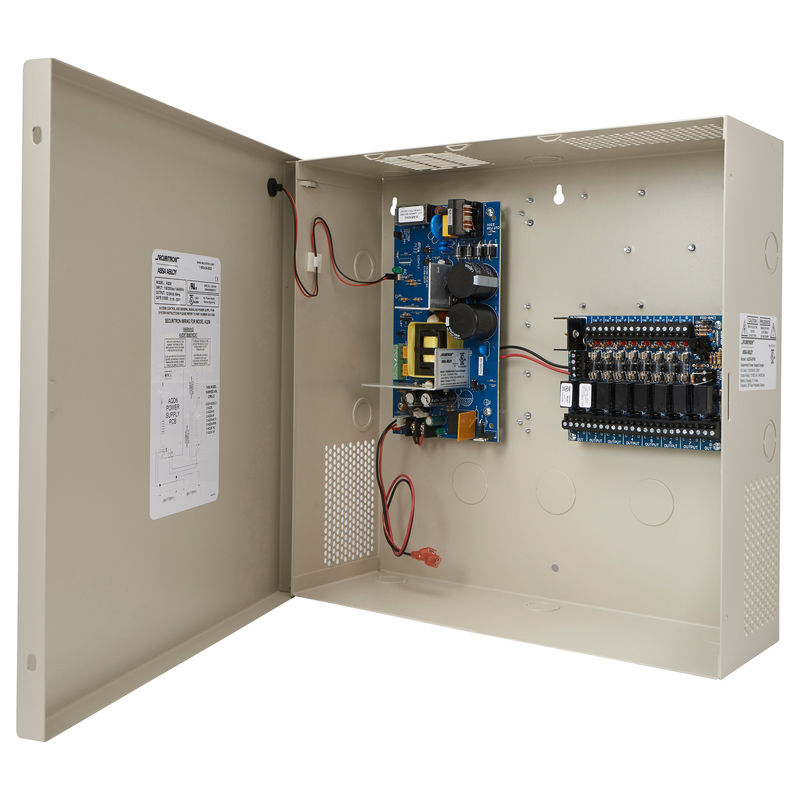

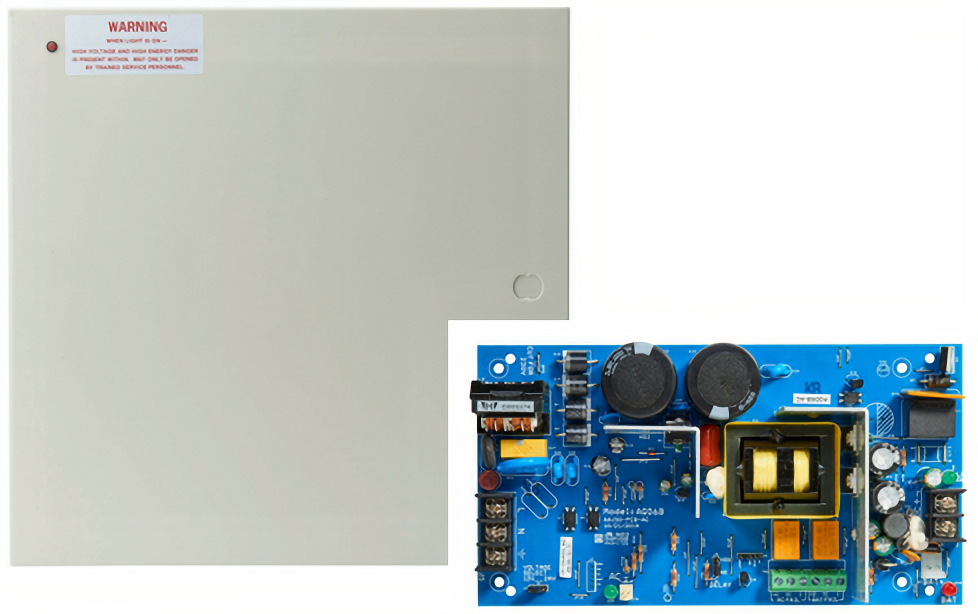

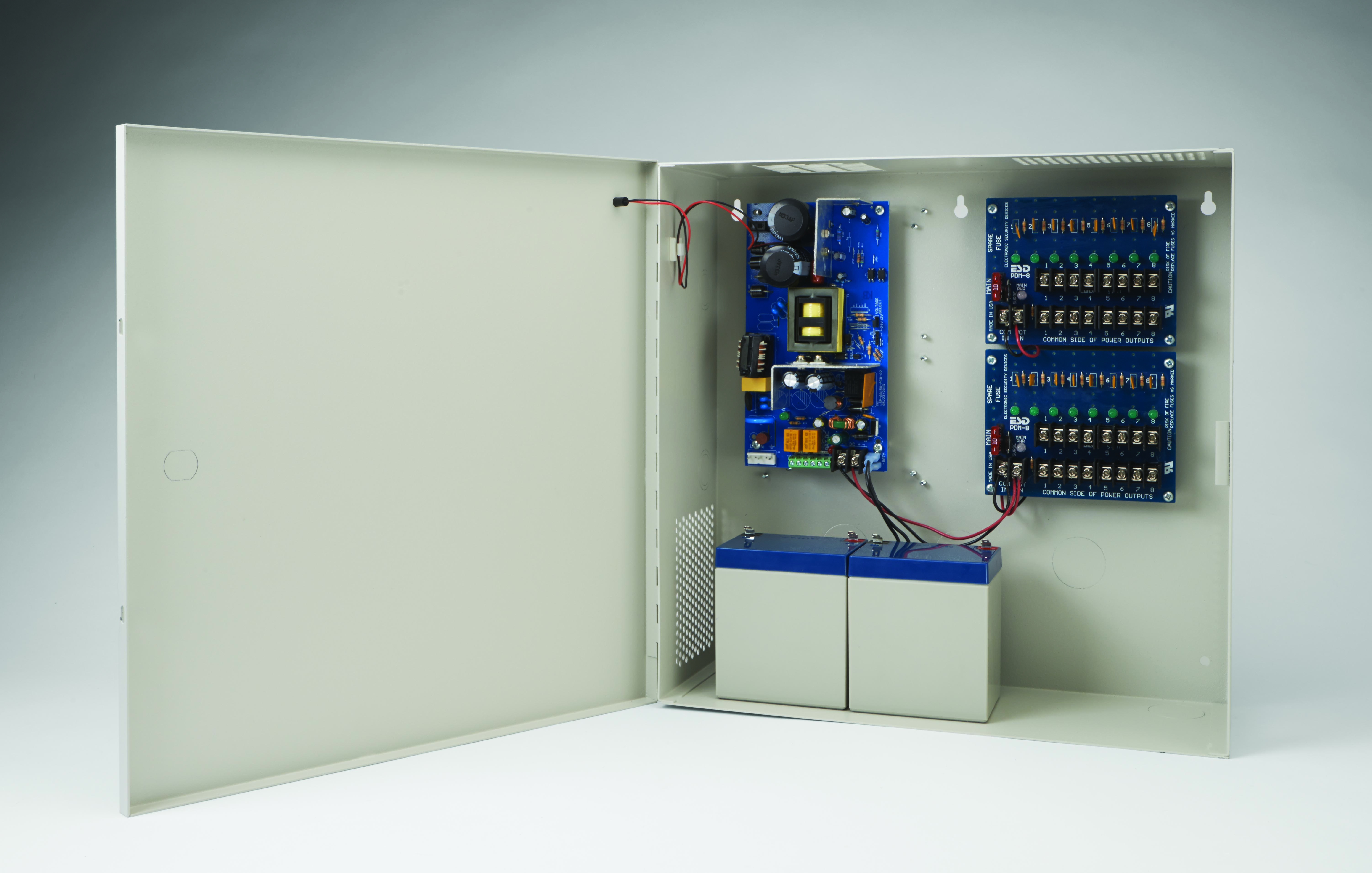

Securitron AQD6 Power Supply

Assa Abloy Electronic Security Hardware - Securitron AQD6 Power Supply - 6A, 12/24 VDC, Supervised in Enclosure

Dual voltage 6 Amp 12 or 24VDC field selectable continuous output
Tolerates brownout or over voltage input ± 15% of nominal voltage
Thermal shutdown protection with auto restart
Circuit breaker protects against over current and reverse battery faults
Dedicated battery charging circuit enables faster battery charging even under full load
Expandable up to 16 independently controlled outputs; Class 2 power limited outputs available
Configurable access control input/ outputs with fire trigger and fuse/dry contact option, fire relay only or configurable outputs with fire relay input
MagnaCare® Lifetime Replacement No Fault Warranty
Dual Voltage 6 Amp 12 or 24 Volt DC Field Selectable Continuous Output
Tolerates Brownout or Overvoltage Input +/- 15% of Nominal Voltage
Thermal Shutdown Protection with Auto Restart
Circuit Breaker Protects Against Overcurrent and Reverse Battery Faults
MagnaCare, The Best Warranty in the Industry, Lifetime Replacement, No Fault, No Questions Asked

Attributes

Manufacturer surcharge: $ 0.0

Access Type: Power Supply

Alternate Codes: AQD6

Amperage: 6 Amp

Ansi: 603, 294

Baa Qualified: Yes

Burglar Rated: No

Category: Access Control, Alarm Power Supplies, Alarms & Intercom, Burglar Alarms, CCTV Products, Power Supplies, Wire & Power Supplies

Commercial Residential: Commercial

Country of Origin: Usa

Country of origin: USA

Depth: 4.75

Door Application: Power Supplies

Finish: White

Finish Description: Applied

Finish Family: White

Fire Alarm Interface: No

Fire Rated: No

Fire Rating: No

Height: 14

Installation: Commercial

Limited Warranty: Lifetime

Maximum Operating Temperature (° F): 122

Minimum Operating Temperature (° F): -4

Monitoring Options: Yes

Number of Outputs: 1

Number of Relays: 0

Origin: USA

Output Amps: 6 AMPS

Output Voltage: 12.5/25

Output Volts: 12/24 VDC

Pack Qty: 1

Power Supply Type: Switching

Restrictions: None

Series: Securitron Power Supplies

Subtype: Power Supplies

Transformer Output: 5 to 10 Amps

Transformer Type: DC

Type: Electronics

Ul Listing: 1481, 603, 294. ULC S318

Unit of Measure: Each

Upc: 784607043331

Voltage: 12/24

Voltage/ Amp Rating: 12 - 24V DC

Width: 14
