Securitron AQD6B 6A Dual Voltage Power Supply

Your Price: $209.40

Retail Price:$349.000

Your Savings:$139.60(40%)

Securitron AQD6B: Dual voltage 6A power supply for access control systems, featuring supervised outputs and thermal protection.

Part Number : STR_AQD6B

Availability: 9 In Stock

Quantity

Description

Securitron AQD6B 6A Dual Voltage Power Supply

Securitron AQD6B 6 Amp Dual Voltage Power Supply delivers exceptional performance for a variety of access control systems. This dual-voltage, supervised power supply operates at 12 or 24 VDC with a robust 6A output, ensuring reliable power for magnetic locks, electric strikes, card readers, and sensors. Designed with versatility in mind, the AQD6B can also support DC cameras and other locking devices, making it an indispensable component of any security setup. With up to 16 independently controlled, power-limited outputs, this power supply allows for flexible installation options. The AQD6B meets UL 294 6th Edition standards, providing peace of mind through its built-in thermal shutdown protection and auto-restart features. A dedicated battery charging circuit prevents overvoltage on locking devices, while a circuit breaker safeguards against overcurrent and reverse battery faults. Operating efficiently in temperatures ranging from -4 to +122°F (-20 to +50°C), the AQD6B boasts a high efficiency rating of 90% at full load. Backed by Securitron’s MagnaCare lifetime replacement warranty, this unit is a reliable choice for commercial applications, ensuring long-lasting performance and security for your access control needs.

6 Amp Dual Voltage Power Suppl

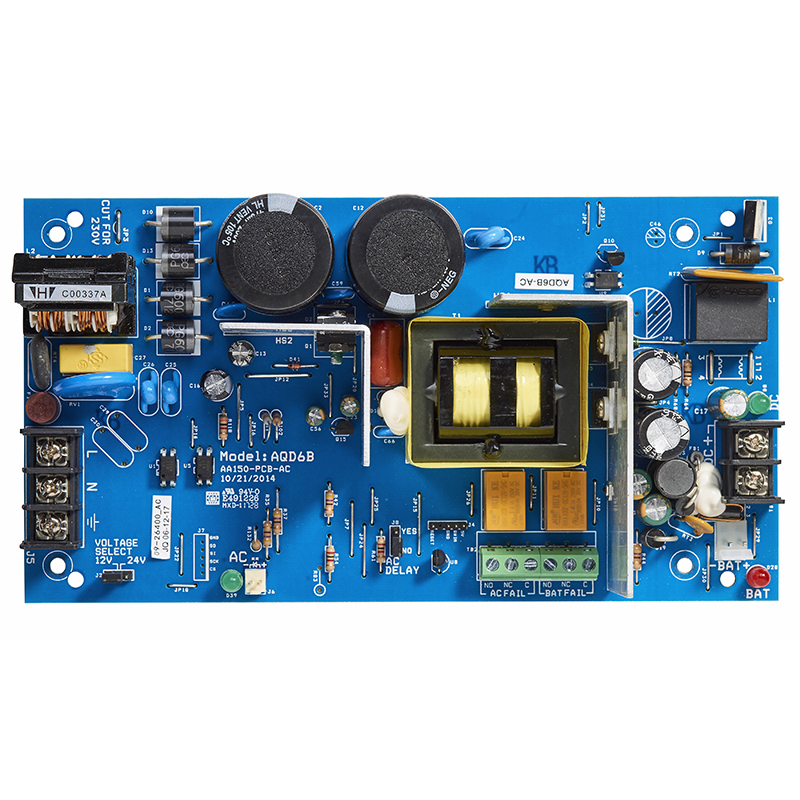

Power Supply, 12/24VDC 6A, Supervised, Board Only

The Securitron AQD6 Series of switching power supplies are dual voltage supervised units with a Battery charger designed to power magnetic locks, electric strikes, card readers, sensors, access control boards and other devices in access control systems. The AQD6 Series can also be used to power DC cameras and other DC locking equipment. These units provide field selectable 6A at 12 or 24 VDC with up to 16 independently controlled power limited outputs. The AQD6 is Securitron's first power supply series that meets UL 294 6th Edition. Dual-voltage 6A 12 or 24 VDC field selectable continuous output. Tolerates brownout or overvoltage input ± 15% of nominal voltage. Thermal shutdown protection with auto restart. Circuit breaker protects against overcurrent and reverse Battery faults. Dedicated Battery charging circuit prevents overvoltage on locking devices. Expandable up to 16 outputs; Class 2 power limited outputs. Available with a single relay fire trigger or individually fire trigger relayed outputs. MagnaCare lifetime replacement, no fault warranty. Supports up to two sealed gel, AGM or wet lead acid batteries. High efficiency: 90% at 24V output, full load. Operating temperature is from -4 to +122F [-20 to +50C].

Access control power supplies and accessories

Securitron has a wide range of access control power supplies and accessories to protect and enhance the performance of any electrified door opening, from a single door opening to the largest enterprise access control system.

NEW! AQL Intelligent Power Supplies

Securitron AQL Series of switching access control power supplies is an out-of-the-box solution that offers unique performance and value. It is feature-rich, network management ready and available in 12 or 24 VDC single, dual and multi-voltage units.

AQD/AQS Switching Power Supplies

Securitron has a wide range of Switching Access Control Power Supplies to protect and enhance the performance of any electrified door opening.

BPS Linear Power Supplies

Securitron Linear Access Control Power Supplies are recommended where an interface with a fire alarm system or battery backup is needed.

Eco and Other Power Supplies

Uphold environmental sustainability with Securitron's Eco-Friendly Power Supply solution or choose one of the various additional solutions from ASSA ABLOY Electronic Security Hardware.

Power Transfers

Securitron offers a wide range of power transfers including concealed, electric hinges and door cord options.

Other Power Accessories

From batteries to bridge rectifiers, Securitron has a number of power supply and transfer accessories to fit all needs and requirements.

Attributes

Ansi: 603, 294

Baa Qualified: Yes

Burglar Rated: No

Commercial Residential: Commercial

Country of origin: USA

Finish: White

Finish Family: White

Fire Rated: No

Fire Rating: No

Installation: Commercial

Limited Warranty: Lifetime

Origin: USA

Output Volts: 12/24 VDC

Pack Qty: 1

Restrictions: None

Series: Securitron Power Supplies

Subtype: Power Supplies

Transformer Output: 5 to 10 Amps

Transformer Type: DC

Type: Power Supplies and Transformers

Ul Listing: 1481, 603, 294. ULC S318

Unit of Measure: Each

Upc: 7.85E+11
