Securitron DK-16/26CBO DK Series Circuit Board for DK-16 or DK-26

Securitron DK-16/26CBO DK Series Circuit Board Only is designed specifically for the DK-16 or DK-26 digital keypad systems, providing an effective solution for medium to high-security control of electric locks. This circuit board is ideal for one or two-door applications where both doors share the same control requirements. The tamper-resistant keypad boasts a true 10-key operation, simplifying both usage and programming. Enclosed in a durable plastic casing, the controller ensures secure installation in protected areas, supporting REX (Request to Exit) input and relay output for seamless integration with lock control, alarm shunt, or other interfaces. With a power requirement of 12 VAC/VDC at 7 mA at rest and 160 mA active, or 24 VAC/VDC at 20 mA at rest and 190 mA active, the unit operates efficiently. It accommodates up to 59 users, offering user code and hard code disable features for enhanced security management. Measuring 6"W x 8"H x 3"D and rated for indoor use, the DK-16/26CBO is a commercial-grade product proudly made in the USA, backed by a lifetime warranty. Elevate your security systems with this reliable, user-friendly circuit board from Securitron.

DK Series Circuit Board Only, for DK-16 or DK-26

DK Series Circuit Board Only, for DK-16 or DK-26

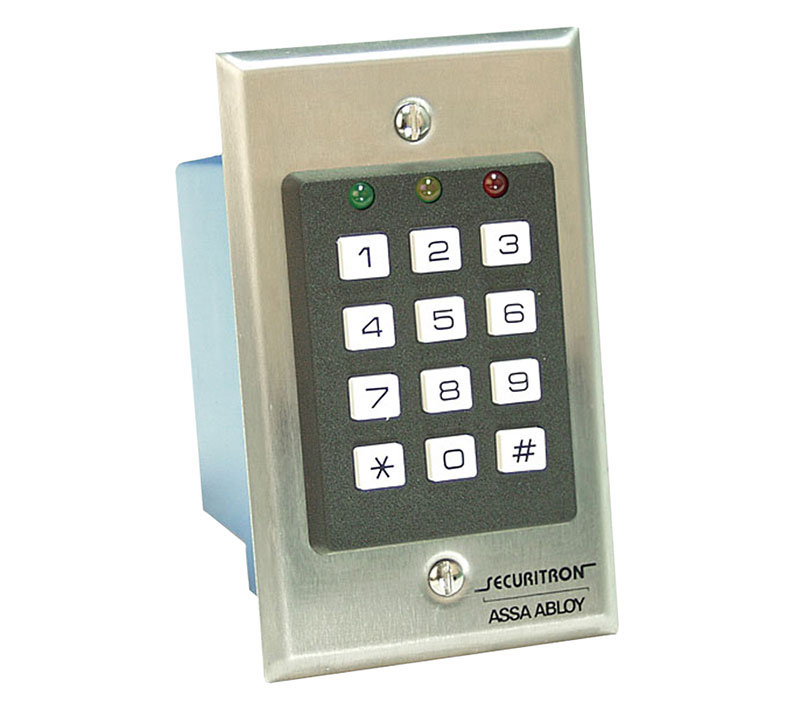

CBO is controller board only for the DK 16/26. The DK-16/26 digital keypad system provides medium/high security control of electric locks in a one or two-door application where both doors have the same control needs. The tamper-resistant keypad provides true 10-key operation for use and programming. Encased in a separate enclosure for secure installation in a protected area, the controller offers REX input and relay output for lock control, alarm shunt or other interfaces. 12 VAC/VDC: 7 mA at rest; 160 mA active 24 VAC/VDC: 20 mA at rest; 190 mA active. Controller mounted in plastic enclosure. 59 users with user code and/or hard code disable feature. 5A DPDT relay output. Request to exit (REX) input. 12 VAC/VDC: 7 mA at rest; 160 mA active 24 VAC/VDC: 20 mA at rest; 190 mA active. CPU operating temperature +32 to +158F [0 to +70C]. Indoor use only. Enclosure: 6"W x 8"H x 3"D.
