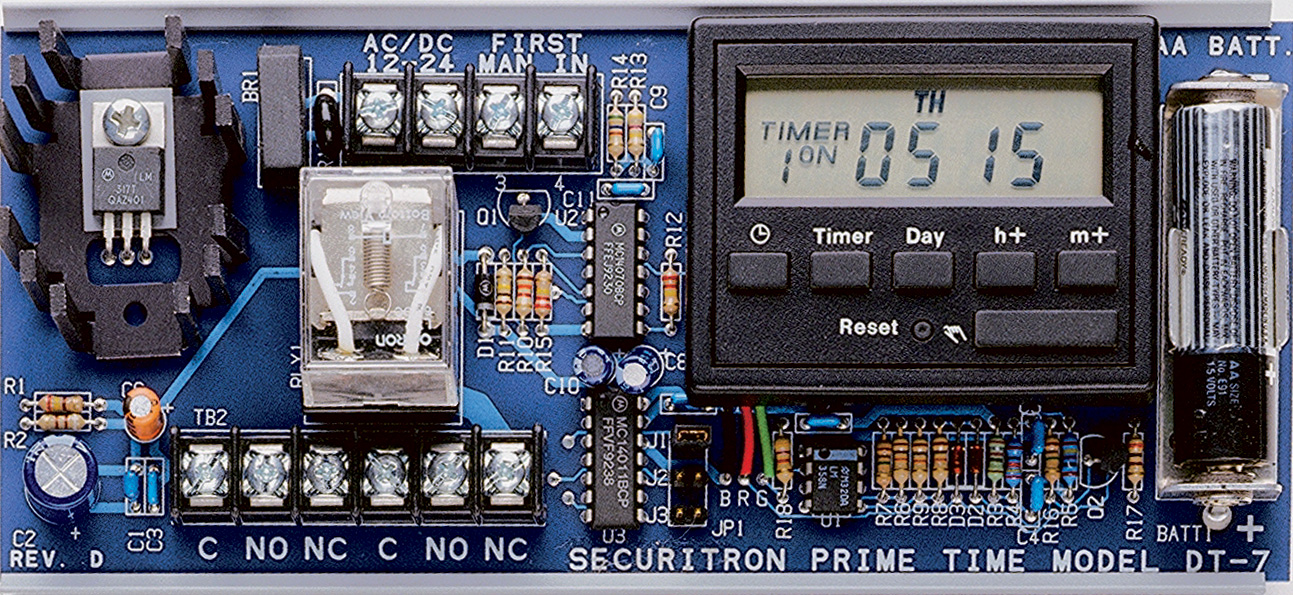

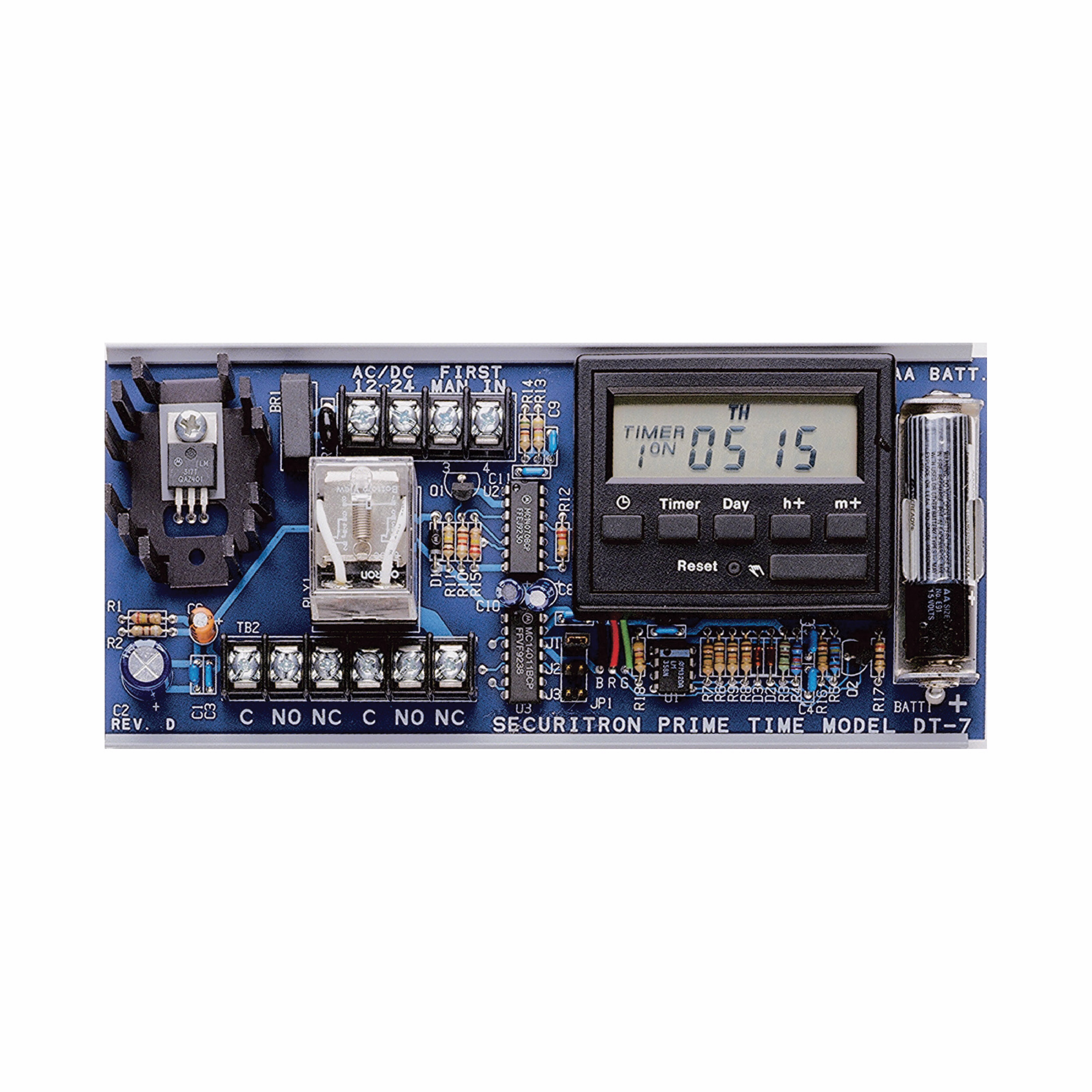

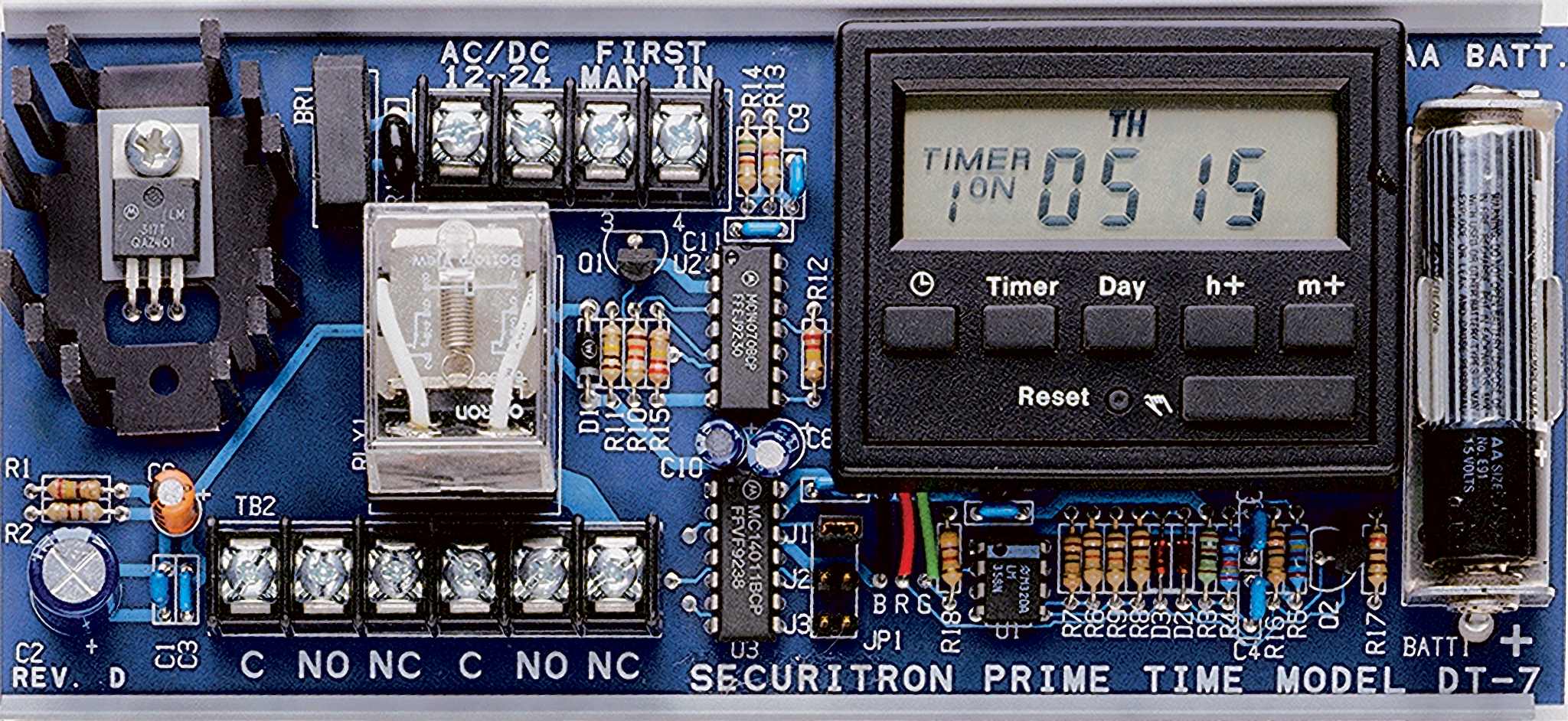

Securitron DT-7 Prime Time Digital Timer

Catalog Page

Installation Instructions

Architectural Specifications

Securitron is the leader in electronic locks. Their commitment to quality, service and innovation is unsurpassed in electronic locking hardware. They have a simply outstanding record in each of these three areas.

Starting with the first “E” profile magnetic lock in 1977, Securitron has worked diligently at providing quality in manufacturing. In 1998 they were the first electric lock awarded the coveted ISO 9001 certification. They continue to maintain this award through quality system standards.

Securitron have free wiring diagrams for all their electronic locking hardware, and the industry leading no fault, no strings attached lifetime replacement warranty on 95% of their product line.

They continue to innovate to answer the demands of the marketplace. New products include the low energy line and the first power supply to receive the UL Class 2 rating. They have electronic locks that fit a standard cylindrical locket without altering the door frame.

Securitron continues to lead the field in electronic locking hardware because of a dedication to their customers. Their innovation insures that they will be able to help you find the electronic locking hardware suitable for your installation.

7-day digital timer

10A DPDT relay can be operated intoggle or pulse mode

12 programmed on/off times• Set daily (6 on, 6 off ), on selecteddays, or on blocks of days

“First Man In" feature delays presetaction until first access

Supports holiday programming

12 or 24 VAC or VDC

AA battery provides backup to thedisplay module program memory -battery not included

MagnaCare® lifetime replacement,no fault warranty

170 mA at 12V or 24V ( VAC or VDC)

Operating Temperature: +32 to +113F [0 to +45C]

Shipping Weight: .75 lbs [0.34kg]
