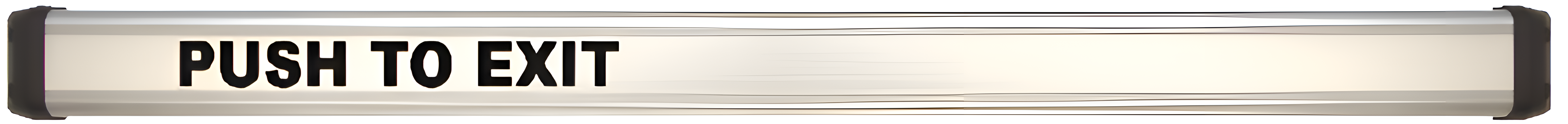

Securitron EMB-W-CL-42 Weather Resistant Electromechanical Exit Bar, 12/24VDC, 42in, Clear Anodized

Securitron EMB-W-CL-42 Weather Resistant Electromechanical Exit Bar is engineered for reliability on magnetically locked, non-fire-rated doors, making it an ideal solution for both commercial and residential applications. With a low-profile design, the exit bar requires only 1/4" movement for activation, ensuring effortless egress. This 42-inch model features robust all-metal construction and an impressive weather-resistant capability, allowing it to perform effectively in outdoor environments. The EMB activates a DPDT 5 amp rated output when pushed, facilitating free egress or initiating a delayed egress timer. Designed for versatility, this device can be field cut to accommodate non-standard openings up to 48 inches and retrofits to most competitor mounting patterns. Included with the unit is a 16 ft 22 AWG 6 conductor cable and an armored door cord, ensuring a straightforward installation process. With a temperature range from -4°F to 185°F and an operating humidity of 10% to 90% RH, this exit bar is built to withstand various environmental conditions. It holds an ANSI/UL 294 certification, assuring compliance with safety standards. Available in clear anodized finish, the Securitron EMB-W-CL-42 is the dependable choice for professionals seeking effective and durable exit solutions.

Weather Resistant Electromechanical Exit Bar, 12/24VDC, 42in, 16ft 22 AWG 6 Conductor Cable, 628/US28 Clear Anodized

The electromechanical exit bar (EMB) is designed for use on magnetically locked, non-fire-rated doors - or as an initiate device for a delayed egress timer. Pushing the bar activates internal switches which release the lock. Optional water resistant switches are available which allows the EMB to function in outdoor applications. Meets "no special tools or knowledge" code requirements.

Features:

• Low profile design requires only 1/4" movement for activation
• Three standard lengths: 36", 42" or 48"
• Can be field cut to accommodate non-standard openings up to 48"
• Uses same mounting pattern as the TSB-3 and DSB
• Retrofits to most competitors mounting patterns
• Activates a DPDT 5 amp rated output when pushed which will allow free egress or initiate the delay on an exit delay timer
• Four individual switches ensure reliable, redundant operation
• All metal construction
• 16 ft [4.8m] 22AWG 6 conductor cable and armored door cord included
• UL listing

Optional Features:

• 36: 36" [914mm] Length
• 42: 42" [1,067mm] Length
• 48: 48" [1,219mm] Length
• W: Weather-resistant upgrade
• Cover plates for retrofit of competitor products (TCP-BK-CL)

Bar Length:

• Blank: 36" Length
• 42: 42" Length
• 48: 48" Length

Connector Style:

• EMB: Electromechanical bar
• WEMB: Weather resistant electromechanical bar

Specification:

• Maximum Operating Temperature (°F): 185
• Minimum Operating Temperature (°F): -4
• Operating Humidity: 10% to 90% RH
• Weather Resistance: Indoor/outdoor
• Height (in): 2.6
• Depth (in): 1.6
• Amps: 1.5
• Voltage: 12/24 VDC
• Electrical Max Draw: 1.5 Amps @ 30VDC
• Certifications: ANSI/UL 294 Listed

Finishes:

• BK: Black anodized
• CL: Clear anodized
