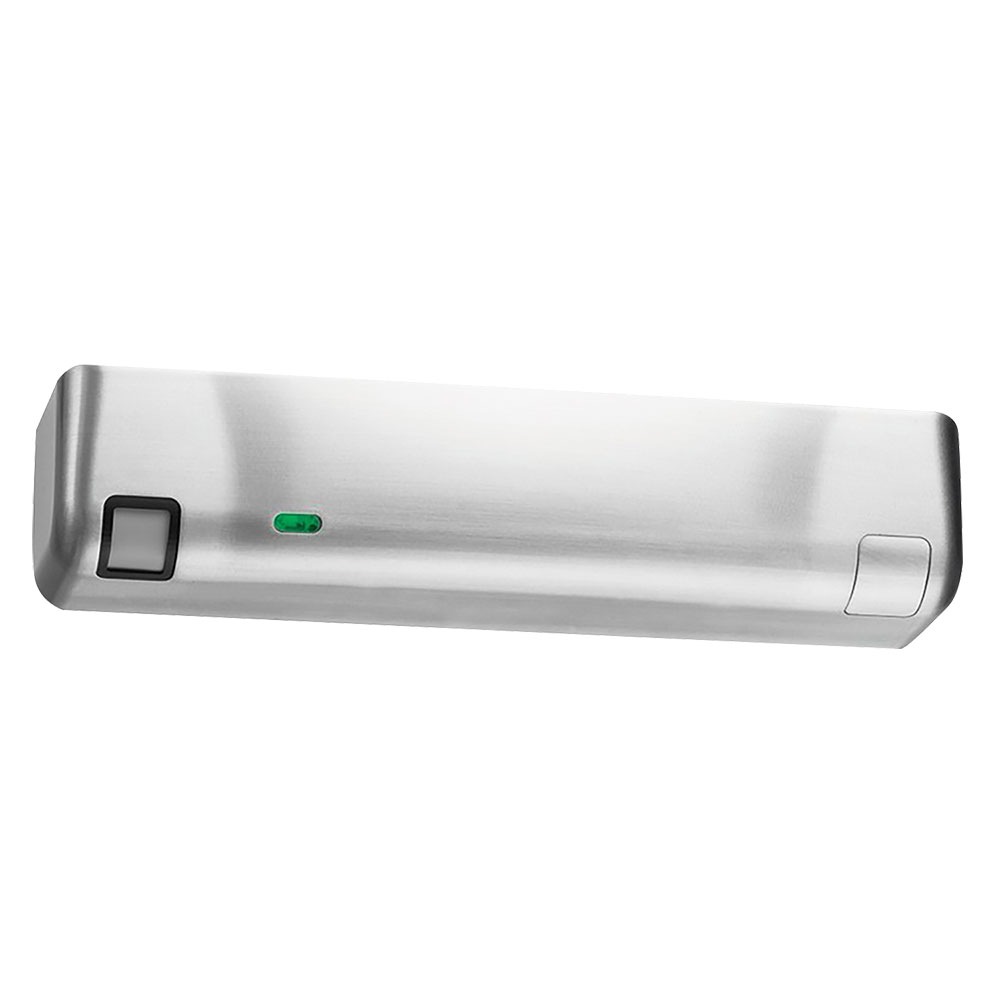

Securitron M380EBDX 629 Maglock

Your Price: $793.80

Retail Price:$1,323.0000

Your Savings:$529.20(40%)

M380E Maglock, 600 lb Holding Force, 12/24 VDC Bondstat Monitor, DPS, Request to Exit, Bright Stainless Steel

Part Number : STR_M380EBDX629

Availability: 0 Ship time varies. We email you if your order is delayed.

Quantity

Description

Securitron M380EBDX 629 Maglock

The Securitron M380EBD and M380EBDX models offer additional integrations, such as Securitron’s patented BondSTAT lock sensor, Door Position Switch, built-in door prop sensing (which allows the magnet to de-energize the coil when the door is held open for extended periods), and a passive infrared request to exit (PIR REX)

Attributes

Amp Draw: 585 mA at 12 VDC, 310 mA at 24 VDC

Ansi: ANSI/BHMA A156.23

Commercial Residential: Commercial

Current 12v DC (m A): 585

Current 24v DC (m A): 310

Finish: 629 Bright stainless steel

Finish Description: Bright Stainless Steel

Finish Family: Polished Silver

Fire Rated: Yes

Fire Rating: Yes {Variable}

Function: Electrically Locked (Fail Safe)

Grade: Grade 3

Holding Force: 600

Holding Force (lbs): 600

Installation: Commercial

Lights: LED Indicator

Limited Warranty: Lifetime

Magnet Depth (in): 2.4375

Magnet Height (in): 2.1875

Magnet Length (in): 10

Magnet Size: 10" x 2-3/16"

Maximum Operating Temperature (° F): 110

Minimum Operating Temperature (° F): 32

Operating Voltage: 12VDC/24VDC

Options: PIR Request to Exit

Outdoor Rated: No

Pack Qty: 1

Preload Capable: Yes

Series: Securitron Smart Magnalocks

Ship Weight: 6.5 lbs.

Subtype: Maglock

Switch Type: MBS/DPS

Type: Electric Strikes, Bolts, Magnets

Ul Listing: UL 10C, 1034, 294

Unit of Measure: Each

Voltage: 12/24
