Ansi: 294, A156.23, E08501-1000
Baa Qualified: Yes
Base Material: Stainless Steel
Burglar Rated: No
Commercial Residential: Commercial
Country of Origin: Usa
Country of origin: USA
Current 12v DC (m A): 250
Current 24v DC (m A): 150
Finish: Satin Stainless Steel
Finish Description: Satin Stainless Steel
Finish Family: Matte Silver
Fire Rated: Yes
Fire Rating: 3 Hours {A}
Fire Rating (hrs): 3
Grade: Grade 2
Holding Force (lbs): 1200
Installation: Commercial
Limited Warranty: Lifetime
Magnet Depth (in): 2.75
Magnet Height (in): 3
Magnet Length (in): 8
Maximum Operating Temperature (° F): 140
Minimum Operating Temperature (° F): -40
Monitoring Options: BondSTAT Monitor
Mounting: Face Drilled|Gate Conduit
Operating Voltage: 12VDC/24VDC
Options: Standard Strike
Origin: USA
Outdoor Rated: Yes
Pack Qty: 1
Preload Capable: Yes
Product Height: 3"
Product Length: 8"
Product Width: 3.25"
Restrictions: None
Series: M62 Series
Ship Weight: 11 lbs.

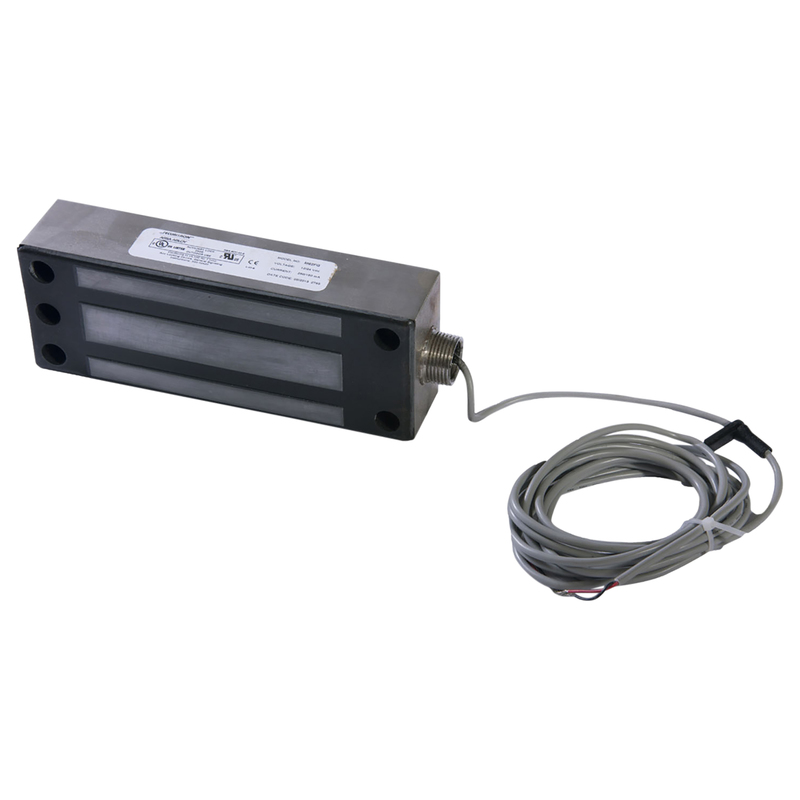

Subtype: Magnetic Locks
Switch Type: MBS
Type: Electronics
Ul Listing: 10C, 294
Unit of Measure: Each
Upc: 784607035428
Voltage: 12/24
