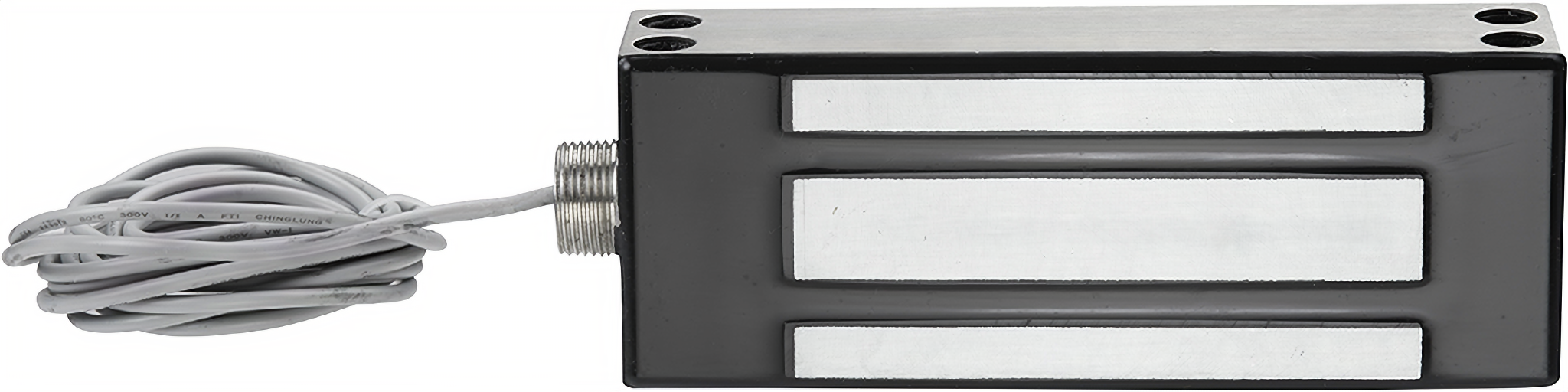

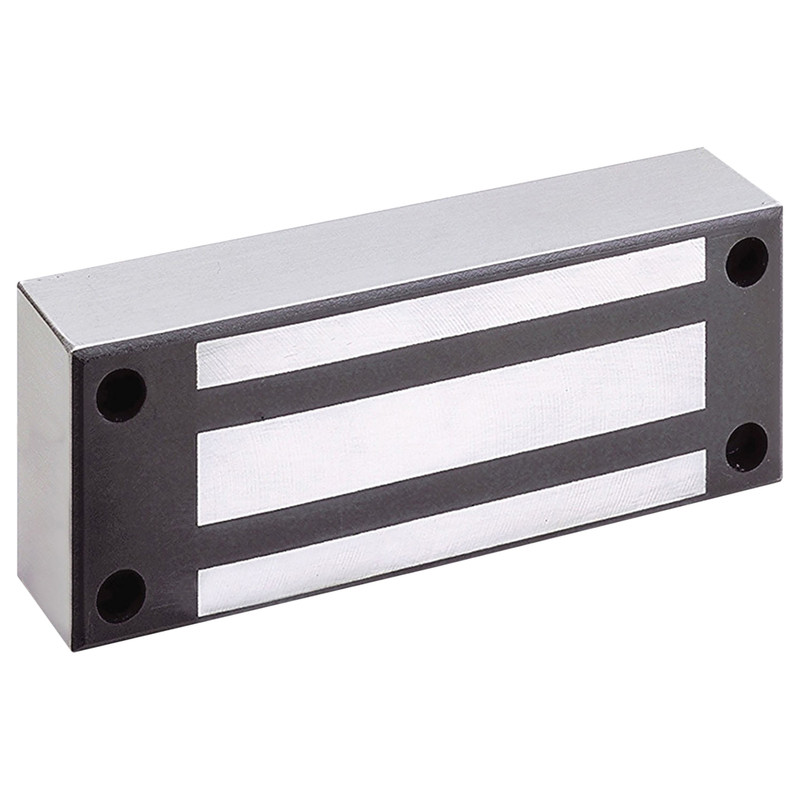

Assa Abloy Electronic Security Hardware - Securitron M62G 12 Volt / 24 Volt DC M62 Magnalock with Gate Conduit Satin Stainless Steel Finish
Attributes
Alternate Codes: 119755, 971243, M62G
Ansi: 294, A156.23, E08501-1000
Baa Qualified: Yes
Base Material: Stainless Steel
Burglar Rated: No
Category: Access Control, Gate Maglocks, Maglocks, Single Maglocks
Commercial Residential: Commercial
Country of Origin: Usa
Country of origin: USA
Current 12v DC (m A): 250
Current 24v DC (m A): 150
Door Application: Maglocks
Finish: Satin Stainless Steel
Finish Color: Satin Chrome
Finish Description: Satin Stainless Steel
Finish Family: Matte Silver
Fire Rated: Yes
Fire Rating: 3 Hours {A}
Fire Rating (hrs): 3
Grade: Grade 2
Holding Force: 1200 lbs
Holding Force (lbs): 1200
Installation: Commercial
Limited Warranty: Lifetime
Maglock Mounting: Gate Conduit
Maglock Type: Single Door
Magnet Depth (in): 2.75
Magnet Height (in): 3
Magnet Length (in): 8
Maximum Operating Temperature (° F): 140
Minimum Operating Temperature (° F): -40
Mounting: Surface Mount
Operating Voltage: 12VDC/24VDC
Options: Bond Sensor, Gate Conduit, Instant Release
Origin: USA
Outdoor Rated: Yes
Pack Qty: 1
Preload Capable: Yes
Product Height: 3"
Product Length: 8"
Product Width: 3.25"
Restrictions: None
Series: M62 Series
Ship Weight: 11 lbs.
Size: 8" x 1-3/4" x 3"H
Subtype: Magnetic Locks
Type: Electronics
Ul Listing: 10C, 294
Unit of Measure: Each
Upc: 784607028451
Voltage: 12V DC, 24V DC
Weather Rating: Weather Resistant
