Images may not represent actual product and finish

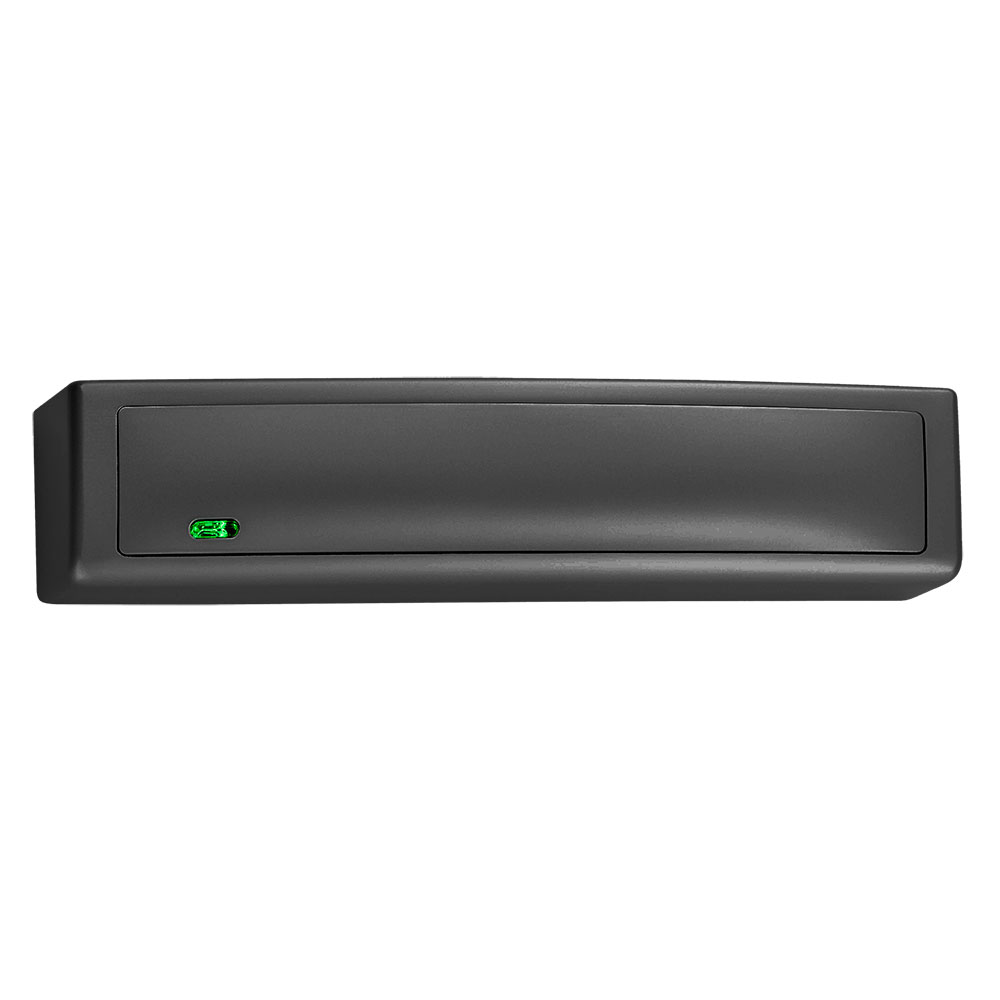

Securitron M680EBD BSP Maglock

Your Price: $666.000

Retail Price:$1,110.0000

Your Savings:$444.000(40%)

M680E Maglock, 1200 lb. Holding, 12/24VDC, Black Suede Powder Coated Finish

Part Number : STR_M680EBDBSP

Availability: 29 In Stock

Quantity

Description

Securitron M680EBD BSP Maglock

The Securitron M680E is intelligent, with built-in door prop sensing allowing the magnet to de-energize the coil when the door is held open for extended periods. The Securitron M680EBD offers built-in smart voltage sensing, integrated patented BondSTAT, tamper sensor as well as door position status monitoring. The aesthetics and design finishes of the EcoMag are refined enough for the most discriminating designer openings. It also offers the fastest, easiest, most secure installation of any bracket mount maglock with an updated strike plate mounting template. The optional integrated request to exit (REX) provides optimum coverage for detecting an approaching person so the door unlocks for egress.

Attributes

Commercial Residential: Commercial

Current 12v DC (m A): 515

Current 24v DC (m A): 325

Finish: BSP Black suede powder coat

Finish Description: Black Suede Powder Coat

Finish Family: Black

Fire Rated: Yes

Grade: Grade 2

Holding Force (lbs): 1200

Installation: Commercial

Limited Warranty: Lifetime

Magnet Depth (in): 2.5

Magnet Height (in): 2.5625

Magnet Length (in): 11.5

Maximum Operating Temperature (° F): 110

Minimum Operating Temperature (° F): 32

Monitoring Options: BondSTAT Monitor & Door Position Switch

Outdoor Rated: No

Pack Qty: 1

Preload Capable: Yes

Series: Securitron Smart Magnalocks

Subtype: Maglocks

Type: Electric Strikes, Bolts, Magnets

Unit of Measure: Each

Voltage: 12/24
