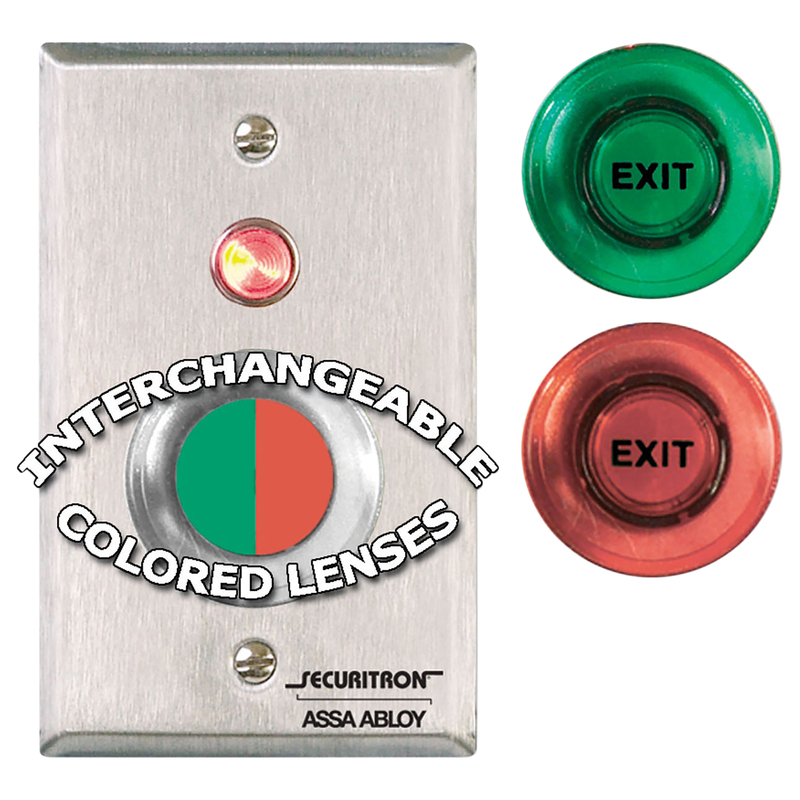

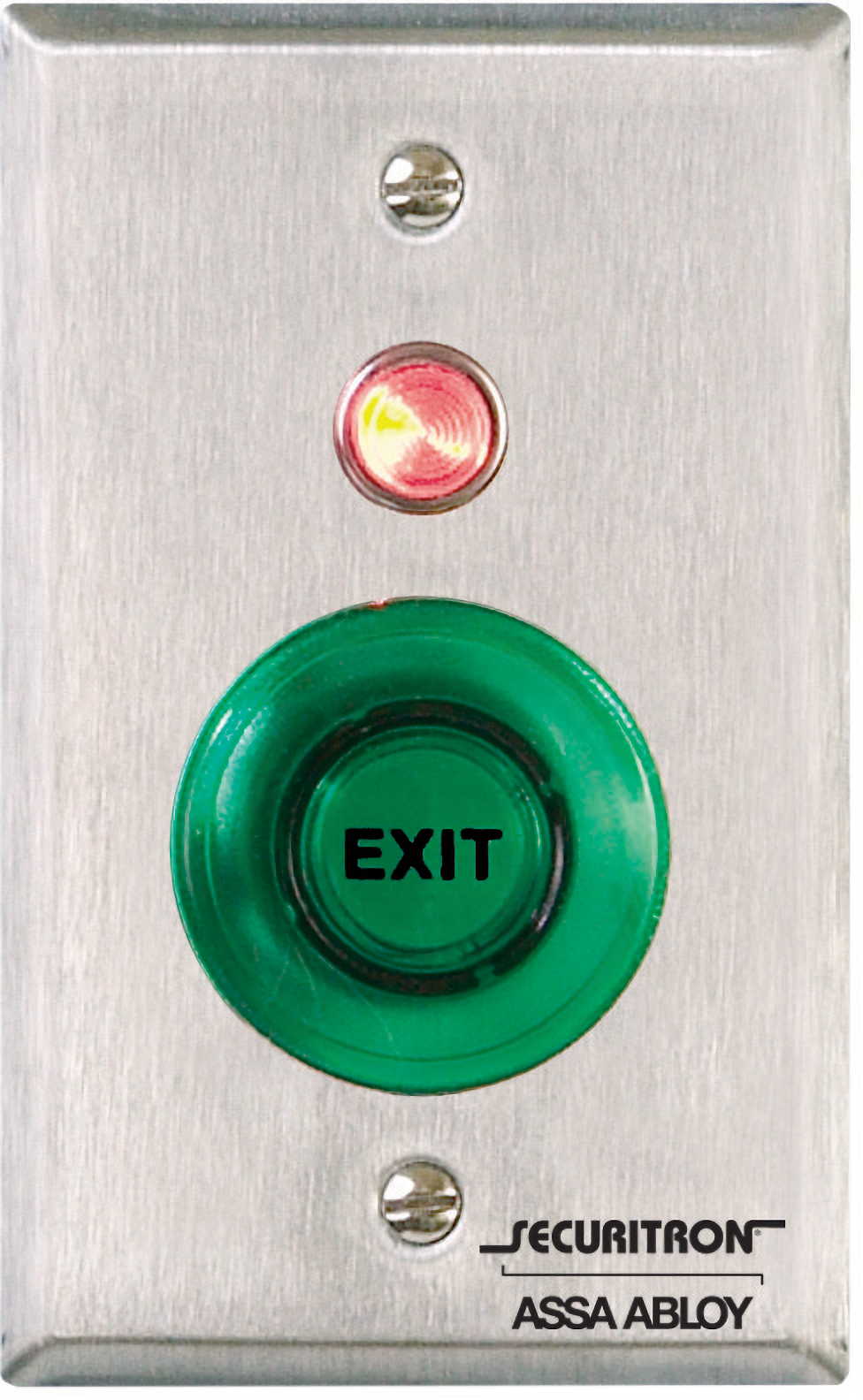

Sec Pb 1.5 In Rnd Green Push Button Sglgang Mom.
Attributes
Manufacturer surcharge: $ 0.0
Alternate Codes: 119756, 971176, PB, PB-G, SMCPB-G
Amps: 7
Baa Qualified: Yes
Burglar Rated: No
Button Color: Green or Red button
Button Label: Exit
Button Size: 1-1/2 In.
Button Type: 1-1/2in Round Button, "EXIT", Green/Red
Category: Access Control, Hardwired, Pushplates/Buttons & Switches
Commercial Residential: Commercial
Contact Action: Alternate or Momentary
Country of Origin: Usa
Country of origin: USA
Current 12v DC: 5
Current 24v DC: 5
Depth: 0.625
Door Application: Pushplates/Buttons & Switches
Finish: 630/US32D
Finish Description: Satin Stainless Steel
Finish Family: Matte Silver
Fire Rated: No
Fire Rating: No
Height: 4.5
Illumination: Yes
Installation: Commercial
LED: Yes
Limited Warranty: Lifetime
Maximum Operating Temperature (° F): 140
Minimum Operating Temperature (° F): -40
Mounting: Single Gang, Surface Mount
Mounting Plate Size: 1 Gang
Origin: USA
Pack Qty: 1
Plastic Color: Green
Product Length: 4.5"
Product Width: 2.75"
Pushplate Style: Single Gang
Relay Action: Momentary
Restrictions: None
Series: PB
Ship Weight: 0.5 lbs.
Size: 2-3/4" x 4-1/2"
Style: Mushroom Push Button
Subtype: Pushbutton
Switch: DPST - Double Pole Single Throw
Switch Mode: Momentary
Switch Type: Push Button Switch
Type: DPDT
Unit of Measure: Each
Upc: 784607023227
Voltage/ Amp Rating: 12 - 24V DC
Weather Resistance: Indoor use only
Width: 2.75
