Amps: 3
Baa Qualified: Yes
Burglar Rated: No

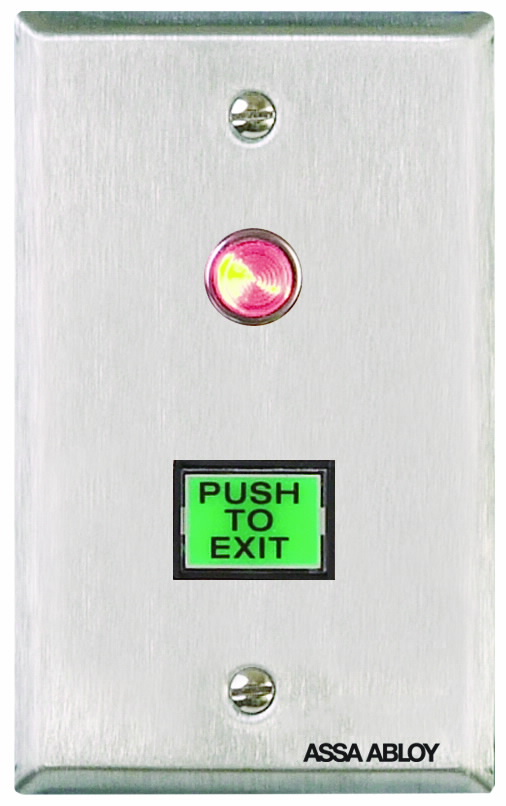

Button Color: Green or Red button
Button Label: PUSH TO EXIT or ADA symbol
Button Size: 1 In.
Commercial Residential: Commercial
Contact Action: Alternate or Momentary
Country of Origin: Usa
Country of origin: USA
Current 12v DC: 29
Current 24v DC: 40
Depth: 0.625
Finish: Satin Stainless Steel
Finish Description: Satin Stainless Steel
Finish Family: Matte Silver
Fire Rated: No
Fire Rating: No
Height: 4.5
Illumination: Optional
Installation: Commercial
LED: Optional
Limited Warranty: Lifetime
Maximum Operating Temperature (° F): 110
Minimum Operating Temperature (° F): 32
Mounting: Single Gang or Narrow Stile
Mounting Plate Size: 1 Gang
Origin: USA
Pack Qty: 1
Plastic Color: Green
Product Length: 4.5"
Product Width: 2.75"
Relay Action: Maintained (AA)
Relay Form: DPST
Relay Type: DPST
Restrictions: None
Series: Securitron Switches, Relays, Timers and Pushbuttons
Ship Weight: 0.2 lbs.
Subtype: Electronic Accessories
Switch: Field Selectable- DPST/ DPDT
Type: Electronics
Unit of Measure: Each
Upc: 784607023296
Weather Resistance: Indoor use only
