Manufacturer surcharge: $ 0.0
Alternate Codes: PB3ER
Amps: 3
Baa Qualified: Yes
Burglar Rated: No

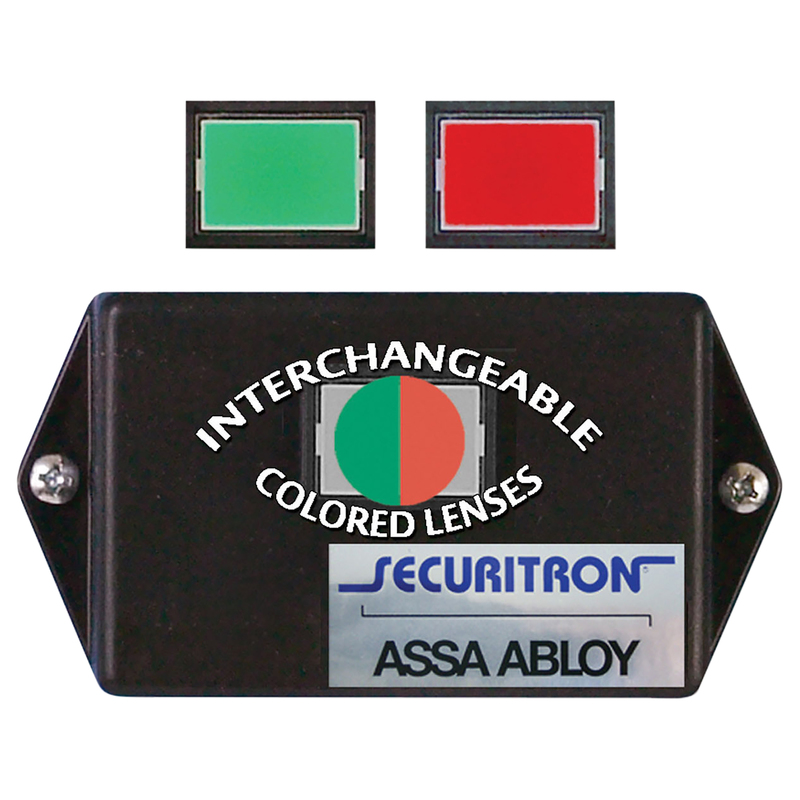

Button Color: Green or Red button
Button Label: PUSH TO EXIT or ADA symbol
Button Size: 1 In.
Button Type: 3/4in Rectangle Button, Green/Red, "PUSH TO EXIT"
Category: Access Control, Hardwired, Pushplates/Buttons & Switches
Commercial Residential: Commercial
Contact Action: Alternate or Momentary
Country of Origin: Usa
Country of origin: USA
Current 12v DC: 29
Current 24v DC: 40
Depth: 0.625
Door Application: Pushplates/Buttons & Switches
Fire Rated: No
Fire Rating: No
Height: 4.5
Illumination: Optional
Installation: Commercial
LED: Optional
Limited Warranty: Lifetime
Maximum Operating Temperature (° F): 110
Minimum Operating Temperature (° F): 32
Mounting: Single Gang or Narrow Stile
Mounting Plate Size: 1 Gang
Options: Non-Illuminated
Origin: USA
Pack Qty: 1
Plastic Color: Black
Product Length: 3.88"
Product Width: 2"
Pushplate Style: Single Gang
Relay Action: Momentary (MOM)
Relay Form: DPST
Relay Type: DPST
Restrictions: None
Series: PB
Ship Weight: 0.12 lbs.
Subtype: Pushbutton
Switch: Field Selectable- DPST/ DPDT
Switch Type: Push Button Switch
Type: ACCESS CONTROL
Unit of Measure: Each
Weather Resistance: Indoor use only
