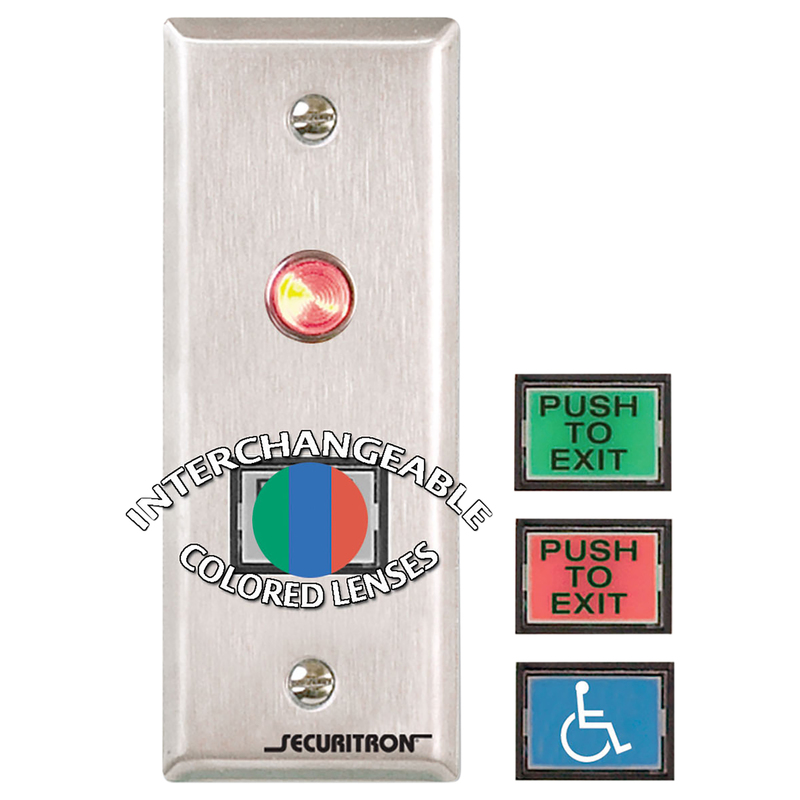

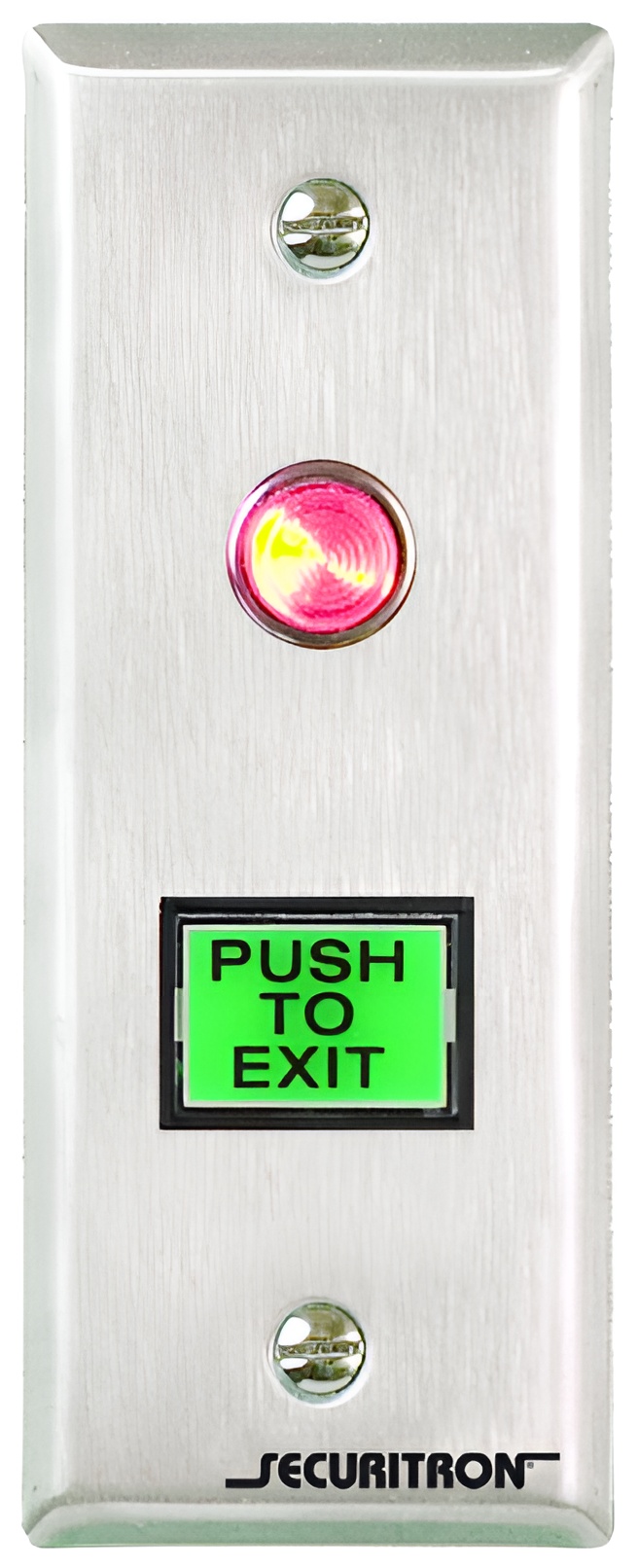

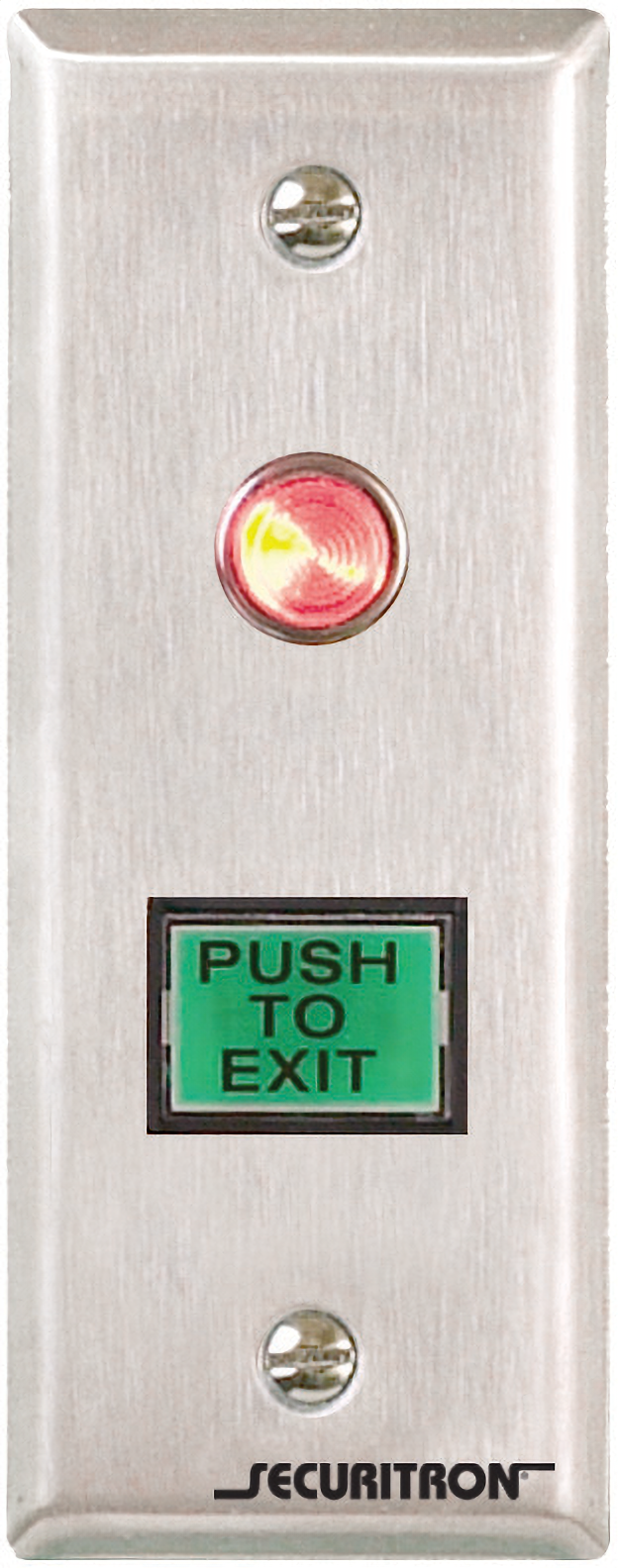

Assa Abloy Electronic Security Hardware - Securitron PB3N Push Button Momentary Narrow, Green / Red Lens Satin Stainless Steel Finish
Attributes
Alternate Codes: 126653, PB3N
Amps: 3
Baa Qualified: Yes
Burglar Rated: No
Button Color: Green or Red button
Button Label: PUSH TO EXIT or ADA symbol
Button Size: 1 In.
Button Type: 3/4in Rectangle Button, Green/Red, "PUSH TO EXIT"
Category: Access Control, Hardwired, Pushplates/Buttons & Switches
Commercial Residential: Commercial
Contact Action: Alternate or Momentary
Country of Origin: Usa
Country of origin: USA
Current 12v DC: 29
Current 24v DC: 40
Depth: 0.625
Door Application: Pushplates/Buttons & Switches
Finish: Satin Stainless Steel
Finish Description: Satin Stainless Steel
Finish Family: Matte Silver
Fire Rated: No
Fire Rating: No
Height: 4.5
Illumination: Optional
Installation: Commercial
LED: Optional
Limited Warranty: Lifetime
Maximum Operating Temperature (° F): 110
Minimum Operating Temperature (° F): 32
Mounting: Mullion Mount, Surface Mount
Mounting Plate Size: Narrow Jamb
Origin: USA
Pack Qty: 1
Plastic Color: Green
Product Length: 4.5"
Product Width: 1.75"
Pushplate Style: Narrow Stile, Plate Size- 4-1/2in x 1-3/4in, Single Gang
Relay Action: Momentary (MOM)
Relay Form: DPST
Relay Type: DPST
Restrictions: None
Series: PB
Ship Weight: 0.5 lbs.
Size: 1-3/4" x 4-1/2"
Style: Square Push Button
Subtype: Electronic Accessories
Switch: Field Selectable- DPST/ DPDT
Switch Mode: Momentary
Switch Type: Push Button Switch
Type: DPDT, DPST
Unit of Measure: Each
Upc: 784607023357
Voltage/ Amp Rating: 12 - 24V DC
Weather Resistance: Indoor use only
