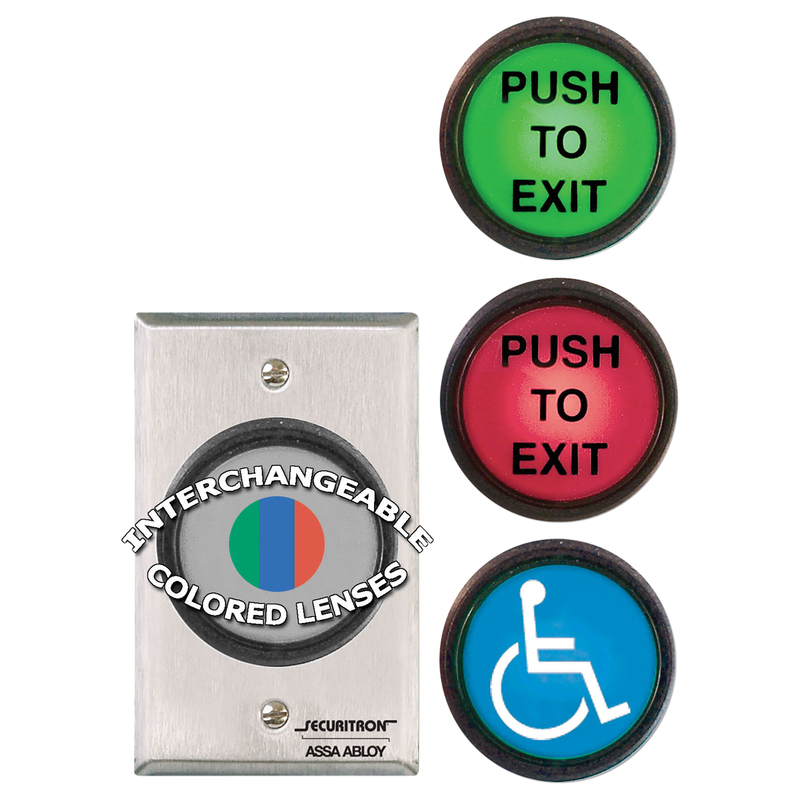

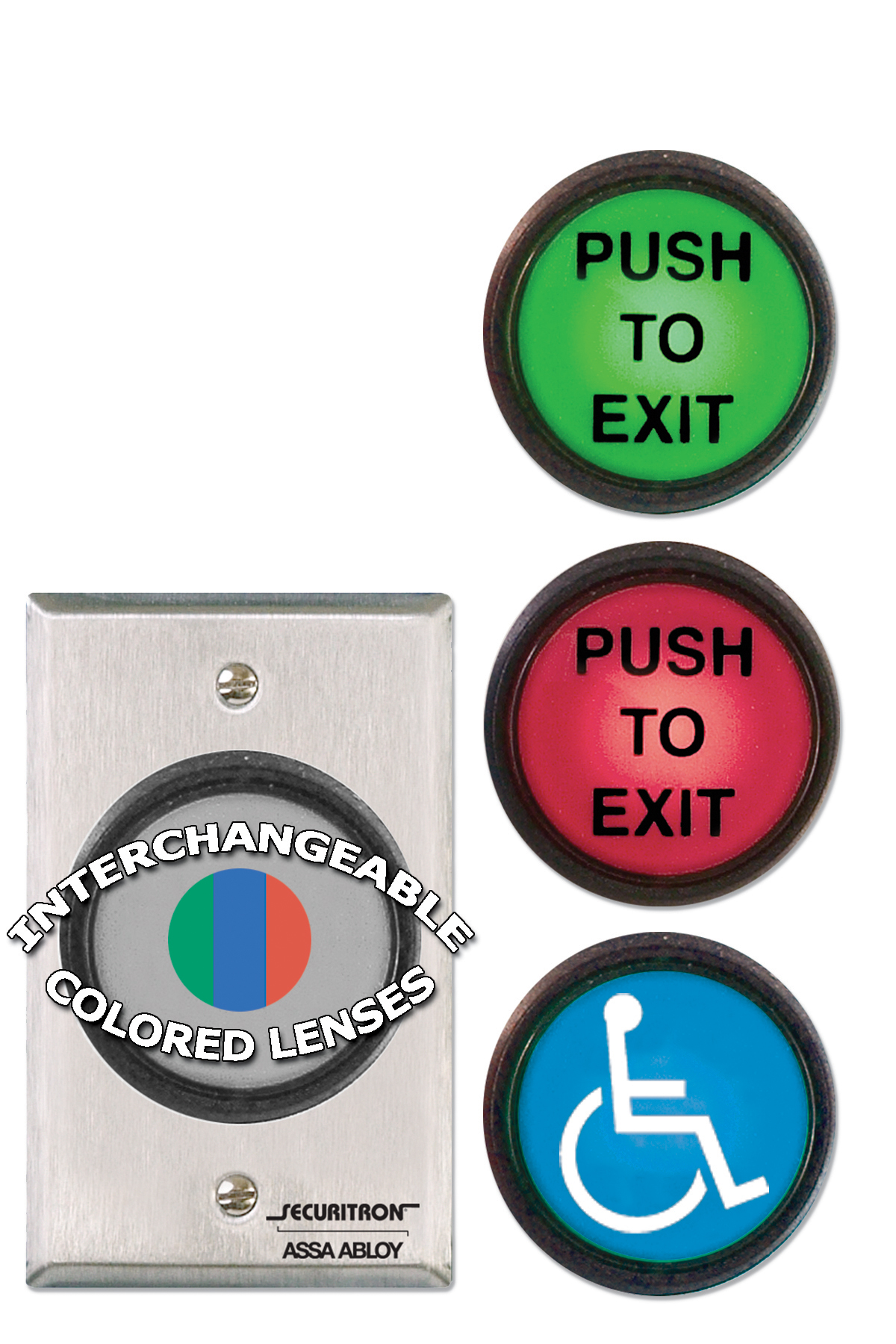

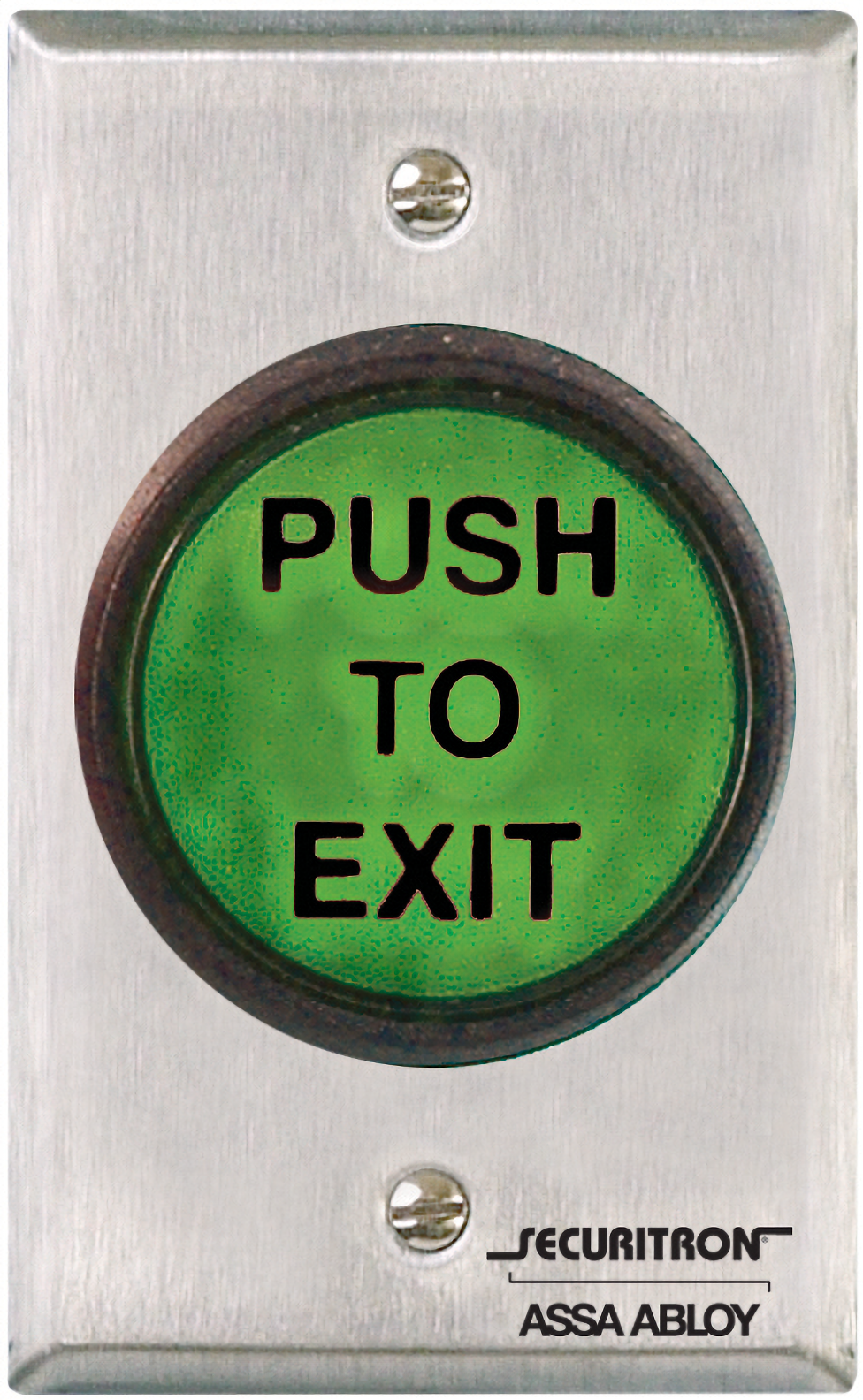

Assa Abloy Electronic Security Hardware - Securitron PB-5 2" Push Button Round Momentary Single Gang DPST, with Light and Red / Green / Handicap Satin Stainless Steel Finish
Attributes
Manufacturer surcharge: $ 0.0
Alternate Codes: PB5
Amps: 5
Application: CM EL
Baa Qualified: Yes
Burglar Rated: No
Button Label: EXIT
Button Size: 2 In.
Button Type: 2in Round Button, Green/Red Handicap, Handicapped Symbol, "PUSH TO EXIT"
Category: Access Control, Hardwired, Pushplates/Buttons & Switches
Clazz: SE
Color: Satin Stainless Steel
Commercial Residential: Commercial
Contact Action: Momentary
Country of Origin: Usa
Country of origin: USA
Current 12v DC: 9
Current 24v DC: 20
Depth: 0.625
Door Application: Pushplates/Buttons & Switches
Finish: Satin Stainless Steel
Finish Description: Satin Stainless Steel
Finish Family: Matte Silver
Fire Rated: No
Fire Rating: No
Height: 4.5
Illumination: Optional
Installation: Commercial
Item Class Description: 2" Push Button Round Momentary Single Gang DPST, with Light and Red / Green / Handicap
Item Type Keyword: Button
LED: Optional
Limited Warranty: Lifetime
Material: Stainless Steel
Maximum Operating Temperature (° F): 110
Minimum Operating Temperature (° F): 32
Mounting: Surface Mount
Mounting Plate Size: 1 Gang
Number Of Inners: 1
Origin: USA
Pack Qty: 1
Plastic Color: Green
Product Dimension: 4-1/2" x 2-3/4"
Product Length: 4.5"
Product Width: 2.75"
Pushplate Style: Single Gang
Relay Action: Momentary
Restrictions: None
Series: PB
Ship Weight: 0.5 lbs.
Size: 2-3/4" x 4-1/2"
Style: Round Push Button
Subtype: Electronic Accessories
Switch: SPDT - Single Pole Double Throw
Switch Mode: Momentary
Switch Type: Push Button Switch
Type: DPDT, DPST
Unit of Measure: Each
Upc: 78460702644088
Voltage/ Amp Rating: 12 - 24V DC
Weather Resistance: Indoor use only
Width: 2.75
