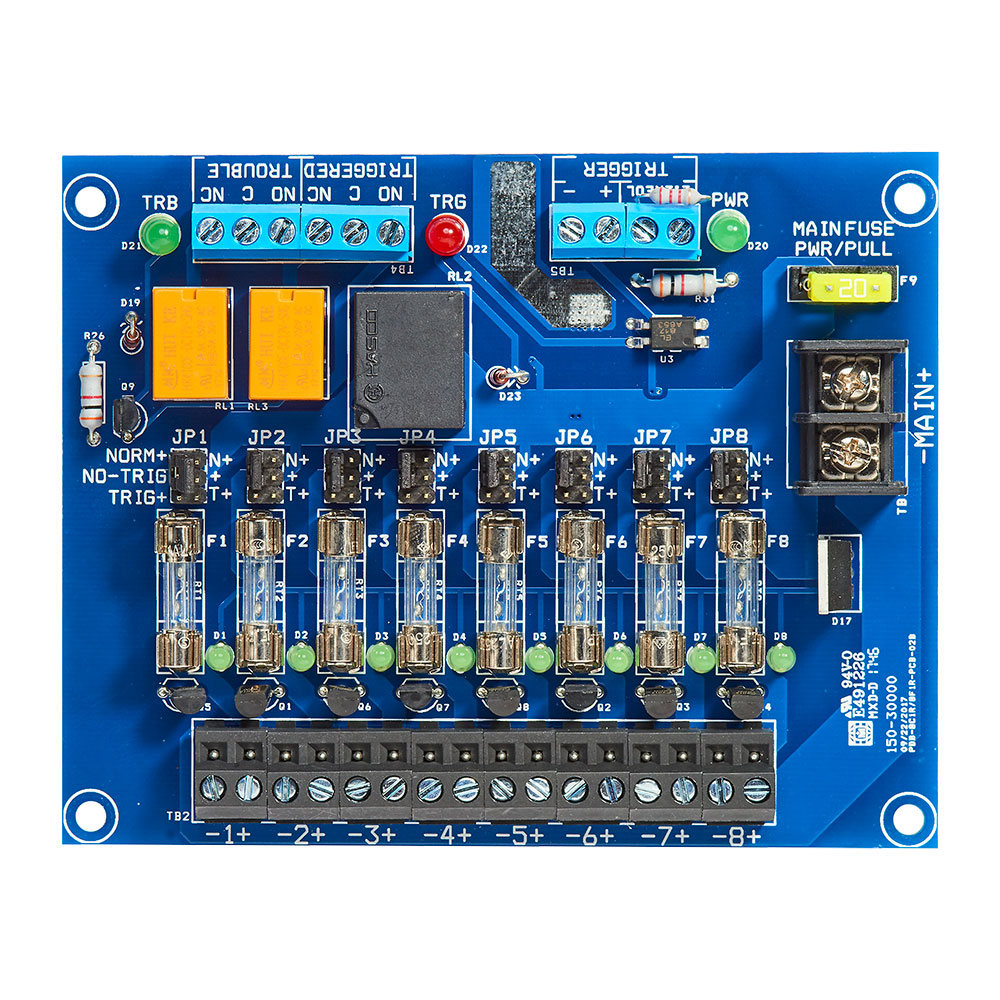

Securitron PDB-8F1R2 Power Distribution Board - 8 Fused Outpu
Images may not represent actual product and finish

Securitron PDB-8F1R2 Power Distribution Board - 8 Fused Outpu

Your Price: $89.40
Retail Price:$149.000
Your Savings:$59.60(40%)
Power Distribution Board, 8 Glass Fused Outputs, Fire Trigger/Relay, 2A Each
Part Number : STR_PDB8F1R2
Availability: 20 In Stock
Securitron PDB-8F1R2 Power Distribution Board - 8 Fused Outpu

Securitron AccuPower Power Distribution Boards (PDB) split the primary AC or DC output from a power supply into multiple outputs of the same voltage type to separate equipment onto individual circuits. Each output has a status LED indicator. Main input has a status LED indicator. 12 or 24V output (based on power supply output). Accepts AC or DC input/provides same output. PDB-4 has an on/off power switch. PDB-8 has a main power indicator that indicates AC, DC or reverse DC input. RoHs lead-free. Made in USA. Individually fused. Separate fuse for main input surge protection, standard automotive ATO sizes. PTC circuit breakers rated holding current at 130¡ F. Accepts AC or DC input up to 32V. Outputs rated Class 2 power limited. Fuses for individual outputs are standard 3AGC.

Attributes

Alternate Codes: PDB-8F1R2, PDB8F1R2

Category: Access Control, Alarm Power Supplies, Alarms & Intercom, Burglar Alarms, CCTV Products, Power Supplies, Wire & Power Supplies

Commercial Residential: Commercial

Distribution Board: Glass Fused Outputs, Power Distribution Board

Distribution Output Number: 8

Door Application: Power Supplies

Fuse Rating [ Amp]: 2

Fuse Type: Glass fuse

Fused Outputs: 8

Installation: Commercial

Limited Warranty: Lifetime

Output Amps: 2 Amps

Pack Qty: 1

Relay Amperage: 2 Amps Each

Relay Number: 1 Relay, Fire Alarm Interface

Series: Securitron Power Supplies

Subtype: Power Supplies

Type: ACCESS CONTROL

Unit of Measure: Each
