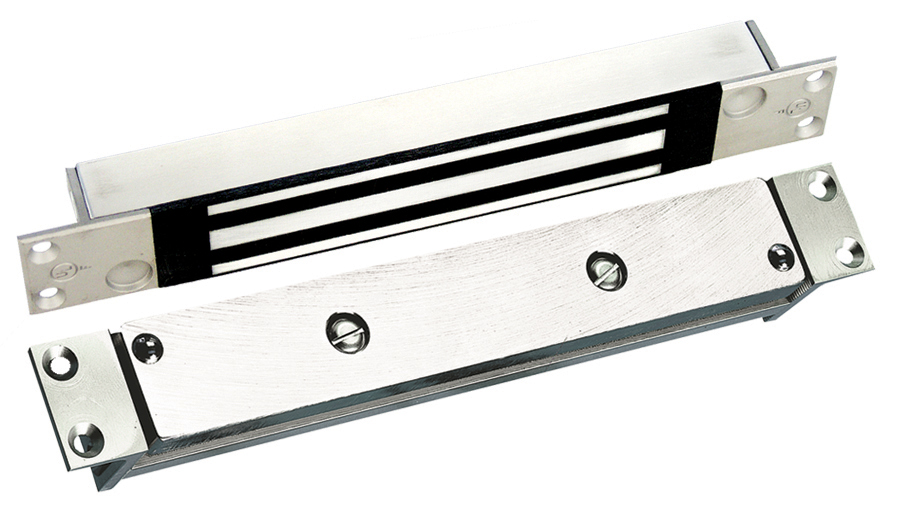

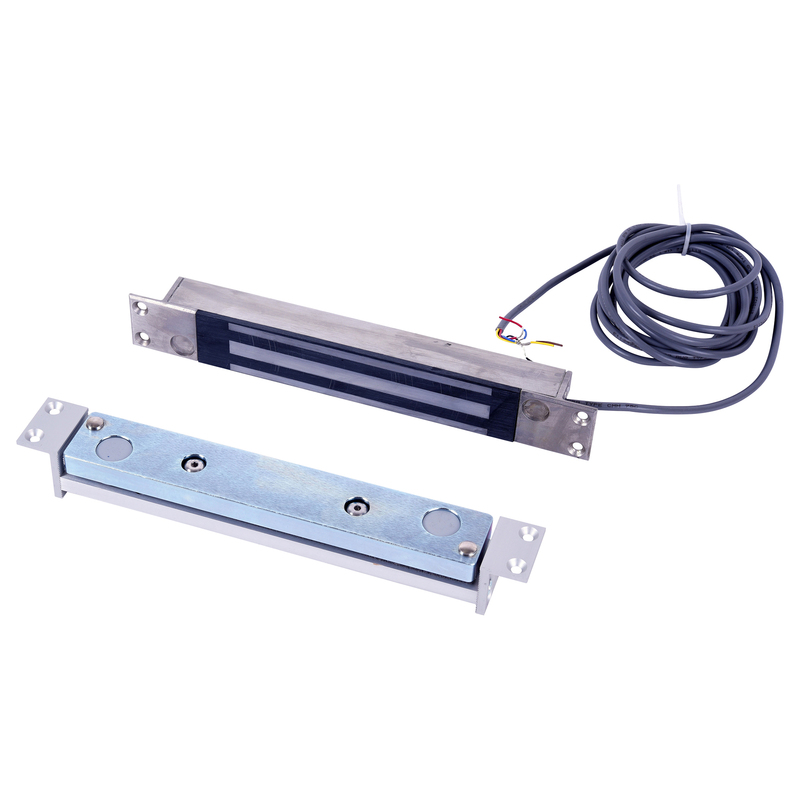

Securitron SAM Self Aligning 12 Volt / 24 Volt DC Shear Magnalock in a sleek satin stainless steel finish offers robust security and advanced functionality for commercial applications. Designed for dual voltage operation, this device accommodates both 12 and 24 Volt power supplies, ensuring flexibility and compatibility with various setups. With a remarkable holding force of 1200 pounds, the SAM Magnalock provides peace of mind, knowing your premises are well-protected. Constructed from high-quality stainless steel in an ISO9001 certified factory, this magnalock guarantees exceptional durability and performance. The automatic dual voltage feature is paired with collapsing blind nuts, which securely anchor the lock to the frame, boasting an impressive tensile strength of 1000 pounds. Additionally, the SAM is fire-rated, making it a reliable choice for safety-conscious installations. Securitron is committed to customer satisfaction, offering world-class technical support and the industry’s best warranty program-MagnaCare-providing lifetime replacement with no questions asked. The SAM Magnalock is compatible with push buttons, readers, or sensors, making it a versatile choice for modern access control needs. Elevate your security solutions with the Securitron SAM Magnalock, where quality meets innovation.
As the world’s premier supplier of electric locking systems and access control components, Securitron, an ASSA ABLOY Group company, excels in manufacturing a wide range of products, from electromagnetic locks and accessories, to exit devices, power supplies, digital entry systems and much more. Securitron is known for its continued commitment to excellence in customer service and product quality.
Attributes
Alternate Codes: 124888, SAM
Ansi: 294, A156.23, E08561-1000, E08571-1000, E08581-1000, E08591-1000
Baa Qualified: Yes
Base Material: Stainless Steel
Burglar Rated: No
Category: Commercial Electronic Devices
Commercial Residential: Commercial
Country of Origin: Usa
Country of origin: USA
Current 12v DC (amps): 320
Current 24v DC (amps): 170
Dimension: 1-1/2" x 10-7/8" x 1-3/16"
Door Application: Maglocks
Door Range: 1-3/4"
Door Thickness: 1-3/4"
Finish: Satin Stainless Steel
Finish Color: Satin Chrome
Finish Description: Satin Stainless Steel
Finish Family: Matte Silver
Fire Rated: Yes
Fire Rating: 3 Hours {A}
Grade: Grade 2
Hazardous Material: NO
Holding Force: 1200 lbs
Holding Force (lbs): 1200
Installation: Commercial
Limited Warranty: Lifetime
Maglock Type: Shear Align, Single Door
Magnet Depth (in): 1.188
Magnet Height (in): 1.5
Magnet Length (in): 10.875
Magnet Size: 1-1/2" x 10-7/8" x 1-3/16"
Manufacturer Warranty: Limited Lifetime Warranty
Material: Stainless Steel
Maximum Operating Temperature (° F): 140
Minimum Operating Temperature (° F): -40
Mounting: Concealed Mount
No Of Inners: 1
Operating Voltage: 12VDC/24VDC
Options: Bond Sensor, Instant Release, Weather proof
Order_ Qty: 1
Origin: USA
Outdoor Rated: No
PO date: 2024-09-17
Pack Qty: 1
Power Supply: Wired
Preload Capable: Yes
Product Height: 1.19"
Product Length: 10.88"
Product Type Used With: Push Button, Reader, or Sensor
Product Width: 1.5"
Restrictions: None
Series: Securitron Specialty Magnalocks
Ship Weight: 6 lbs.
Size: 10-7/8" x 1-3/16" x 1-1/2"
Subcategory: Maglocks
Subtype: Magnetic Locks
Type: Electronics
Ul Listing: 10C, 294,
Ul Listing Type: UL10C and UL294
Unit of Measure: Each
Upc: 784607028048
Voltage: 12V DC, 24V DC
Weather Rating: Weather Resistant
