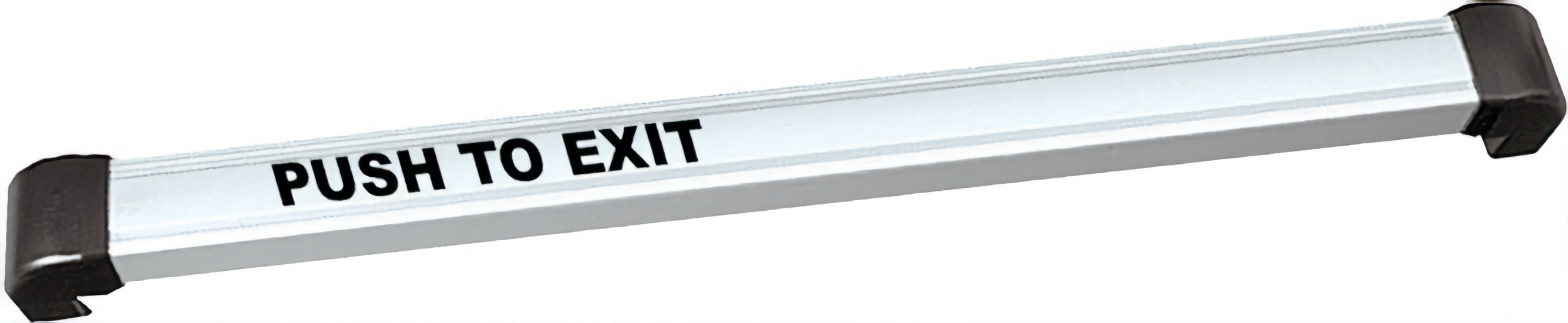

Securitron TSB-CL-36 Touch Sense Bar 36in, 12/24VDC, 6 Armored Door Cord, 2 Amp DPST RelaySecuritron TSB-CL-36 Touch Sense Bar offers a seamless solution for touch-triggered access control on magnetically locked, non-fire-rated doors. Measuring 36 inches in length and operating on either 12 or 24 VDC, this device ensures that even a light touch-through gloves or clothing-activates the electronic sensor to release the lock, promoting safe and efficient egress. Designed for indoor use, the TSB is easily installable on various door types, including metal, aluminum, and wood frames, without the need for special tools or technical expertise. The unit features a 16-foot, 22 AWG armored door cord and includes a backup push button for added reliability. The touch sense bar activates a DPST 2 Amp relay, allowing for free egress while also being compatible with exit delay timers. With a robust construction that includes a clear anodized finish, the TSB-CL-36 is built to withstand operational temperatures ranging from 32°F to 110°F. It can be field cut to accommodate openings up to 48 inches, making it versatile for various applications. Additionally, it is backed by Securitron's MagnaCare lifetime replacement warranty, ensuring peace of mind for users. Embrace enhanced security and accessibility with the Securitron TSB-CL-36 Touch Sense Bar.
Touch Sense Bar, 36in, 12/24VDC, 16ft 22 AWG 6 Armored Door Cord, 2 Amp DPST Relay, 628/US28 Clear Anodized
Notice: The info below is not item specific.
The TSB touch sense bar provides touch-triggered release of magnetically locked, non-fire-rated doors. Touching the bar, even through light gloves or clothing, triggers an electronic sensor that releases the lock. For indoor use only, the TSB installs easily on all types of metal, aluminum or wood frame doors. Meets "no special tools or knowledge" criteria in code requirements.
Features:
- Can be field cut to accommodate non-standard openings up to 48"
- Activates a DPST 2 Amp rated relay when touched (no mechanical movement) which will allow free egress, or initiates the delay on an exit delay timer.
- Backup push button
- 16 ft [4.8m] 22AWG 6 conductor cable and armored door cord included
- Operates on either 12 or 24 VDC
- Available ElectroLynx ready
- MagnaCare lifetime replacement, no fault, no questions asked warranty
Optional Features:
- 36: 36" (914mm) Length
- 42: 42" (1,067mm) Length
- 48: 48" (1,219mm) Length
- EL: ElectroLynx® connectors
- D: Dummy bar with no release function
- Through-bolt kit for doors up to 2-1/4" thick
- Cover plates for retrofit of competitor products
- Trailing edge timer
Specifications:
- Current 12v DC: 50
- Current 24v DC: 50
- Maximum Operating Temperature (°F): 110
- Minimum Operating Temperature (°F): 32
- Height (in): 2-3/4"
- Depth (in): 3
Models:
- TSB-BK: Touch sense bar - 36", black anodized
- TSB-BK-42: Touch sense bar - 42", black anodized
- TSB-BK-48: Touch sense bar - 48", black anodized
- TSB-BKT: Touch sense bar- 36" w/trailing edge timer (3 sec), black anodized
- TSB-CL: Touch sense bar - 36", clear anodized
- TSB-CL-42: Touch sense bar - 42", clear anodized
- TSB-CL-48: Touch sense bar - 48", clear anodized
- TSB-CLT: Touch sense bar - 36" w/trailing edge timer (3 sec), clear anodized
- TSB-CLT-42: Touch sense bar - 42" w/trailing edge timer (3 sec), - clear anodized
- DTSB-BK Dummy: Touch sense bar - 36" w/end caps & fasteners, black anodized
- DTSB-BK-42 Dummy: Touch sense bar - 42" w/end caps & fasteners, black anodized
- DTSB-BK-48 Dummy: Touch sense bar - 48" w/end caps & fasteners, black anodized
- DTSB-CL Dummy: Touch sense bar - 36" w/end caps & fasteners, clear anodized
- DTSB-CL-42 Dummy: Touch sense bar - 42" w/end caps & fasteners, clear anodized
- DTSB-CL-48 Dummy: Touch sense bar - 48" w/end caps & fasteners, clear anodized
- EL-TSB-BK: Touch sense bar - 36", black anodized, ElectroLynx
- EL-TSB-BK-42: Touch sense bar - 42, black anodized, ElectroLynx
- EL-TSB-BK-48: Touch sense bar - 48", black anodized, ElectroLynx
- EL-TSB-CL: Touch sense bar - 36", clear anodized, ElectroLynx
- EL-TSB-CL-42: Touch sense bar - 42", clear anodized, ElectroLynx
- EL-TSB-CL-48: Touch sense bar - 48", clear anodized, ElectroLynx
- TCP-BK: Touch bar cover plates - Set of 2, black anodized
- TCP-CL: Touch bar cover plates - Set of 2, clear anodized
- TSB-TDM: Through door mounting kit for TSB-3
Finishes:
- CL: Clear anodized
- BK: Black anodized
Attributes
Ship via: No UPS - Common Carrier Only
Alternate Codes: 119760, SDCMSB550, SMCTSB-3CL, TSB-3CL, TSB3CL, TSB-CL-36, TSBCL36
Category: Electrified Panic Devices, Panic Devices & Exit Alarms
Door Application: Panic Devices & Exit Alarms
Exit Device Category: Egress Bar, Touch Sense Bar
Finish Color: Anodized Aluminum, Clear (Satin)
