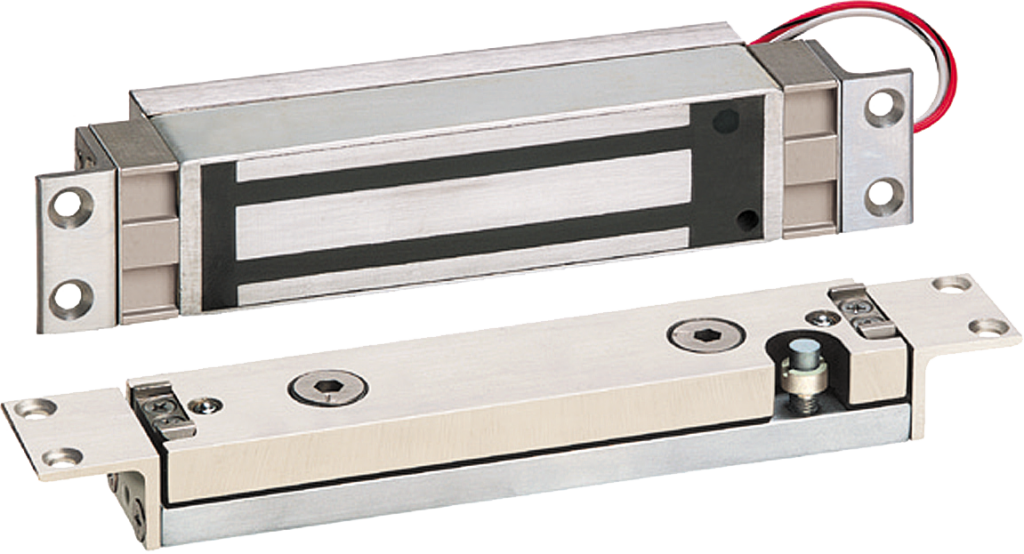

Security Door Controls 1565-ITC 2700lbs Hi/Shear Single Door Electromagnetic Lock, UL Listed, Satin Aluminum

Security Door Controls 1565-ITC 2700lbs Hi/Shear Single Door Concealed Electromagnetic Lock offers an architecturally superior solution for high-security openings. Engineered in the USA, this electromagnetic lock boasts a robust holding force of 2700lbs, making it ideal for commercial-grade hollow metal and wood doors, as well as Herculite doors with top rails. Its fully concealed mortise design not only enhances aesthetics but also integrates advanced electronics for seamless operation. The patented HiShear design features a floating armature assembly and adjustable alloy steel shear tabs, allowing for precise vertical and lateral alignment to accommodate misaligned doors. Innovative noise dampeners minimize sound during locking and unlocking, creating a quieter environment compared to traditional shear locks. The lock supports auto-sensing dual voltage input (12/24VDC), ensuring versatility and ease of installation. Additional features include a door alignment relock sensor, optional door position status, bond alert status, and a visual status indicator (LED) for enhanced monitoring capabilities. With a weight of 7lbs and dimensions of 10-7/16" x 1-1/2" x 1-5/8", the 1565-ITC is UL Listed and Grade 1 certified, ensuring reliability and durability in demanding applications. Elevate your security with this top-tier electromagnetic lock.

2700lbs Hi/Shear Single Door Concealed Electromagnetic Lock, Integrated Electronics, 800/400mA 12/24VDC, Fits in 7/8in to 1-1/8in Deep Inverted Top Channel, UL Listed, Grade 1, 628/US28 Satin Aluminum

HiShear electromagnetic shear locks are designed, engineered and built in America for openings that require an architecturally superior appearance. Recognized as a cut above alternatives on the market, SDC shear locks provide high security with a failsafe locking mechanism to meet a variety of door opening applications. The patented HiShear design incorporates a floating armature assembly and special alloy steel locking tabs on both the lock and armature assemblies, that may be adjusted both vertically and laterally to compensate for wide door gaps and warped or misaligned doors. Advanced electronic circuitry incorporates a door alignment relock sensor as well as an automatic sensing dual voltage input. Noise dampeners greatly reduce the noise associated with locking and unlocking when compared to other shear locks on the market. HiShear magnetic shear locks are ideal for use on commercial grade hollow metal and wood doors with metal frames and Herculite doors with top rails. The innovative 1560 series concealed electromagnetic shear locks are available with 2000lbs and 2700lbs holding force for standard 13/4" to 2" frames with internal electronics, as well as narrow 11/4" to 11/2" frames with external electronics.

Features:

• Fully concealed mortise design
• Floating armature assembly
• Special alloy steel shear tabs
• Auto-sensing dual voltage
• Door alignment relock sensor
• Adjustable lateral and vertical alignment
• Noise dampeners
• Optional: Door position status (DPS)
• Optional: Bond alert status (BAS)
• Optional: Visual status indicator (LED). Mounts separately through the frame and may be used to indicate lock is energized or wired to monitoring contacts.

Models:

• 1561: Concealed shear lock, integrated electronics, 2000lbs
• 1562: Concealed shear lock, external electronics, 2000lbs
• 1565: Concealed shear lock, integrated electronics, 2700lbs
• 1566: Concealed shear lock, external electronics, 2700lbs

1561 Specifications:

• Housing: Aluminum
• Mount: Mortise
• Holding Force: 2,000lbs
• Dimensions: 8" x 1-1/2" x 1-5/8" Lock, 8-7/16" x 1-3/8" x 7/8" armature
• Weight: 5 lbs
• Input: 12/24 VDC ± 10% Auto-sensing
• Current Draw: 350 mA @ 24 VDC, 650 mA @ 12 VDC
• Monitoring Contacts: SPDT 250 mA @ 30 VDC Resistive

1562 Specifications:

• Housing: Aluminum
• Mount: Mortise
• Holding Force: 2,000lbs
• Dimensions: 8" x 1-1/2" x 1-1/4" Lock, 8-7/16" x 1-3/8" x 7/8" armature
• Weight: 5 lbs
• Input: 12/24 VDC ± 10% Auto-sensing
• Current Draw: 350 mA @ 24 VDC, 650 mA @ 12 VDC
• Monitoring Contacts: SPDT 250 mA @ 30 VDC Resistive

1565 Specifications:

• Housing: Aluminum
• Mount: Mortise
• Holding Force: 2,700lbs
• Dimensions: 10-7/16" x 1-1/2" x 1-5/8" Lock, 11" x 1-3/8" x 7/8" armature
• Weight: 7 lbs
• Input: 12/24 VDC ± 10% Auto-sensing
• Current Draw: 400 mA @ 24 VDC, 800 mA @ 12 VDC
• Monitoring Contacts: SPDT 250 mA @ 30 VDC Resistive

1566 Specifications:

• Housing: Aluminum
• Mount: Mortise
• Holding Force: 2,700lbs
• Dimensions: 10-7/16" x 1-1/2" x 1-1/16" Lock, 11" x 1-3/8" x 7/8" Armature
• Weight: 7 lbs
• Input: 12/24 VDC ± 10% Auto-sensing
• Current Draw: 400 mA @ 24 VDC, 800 mA @ 12 VDC
• Monitoring Contacts: SPDT 250 mA @ 30 VDC Resistive
