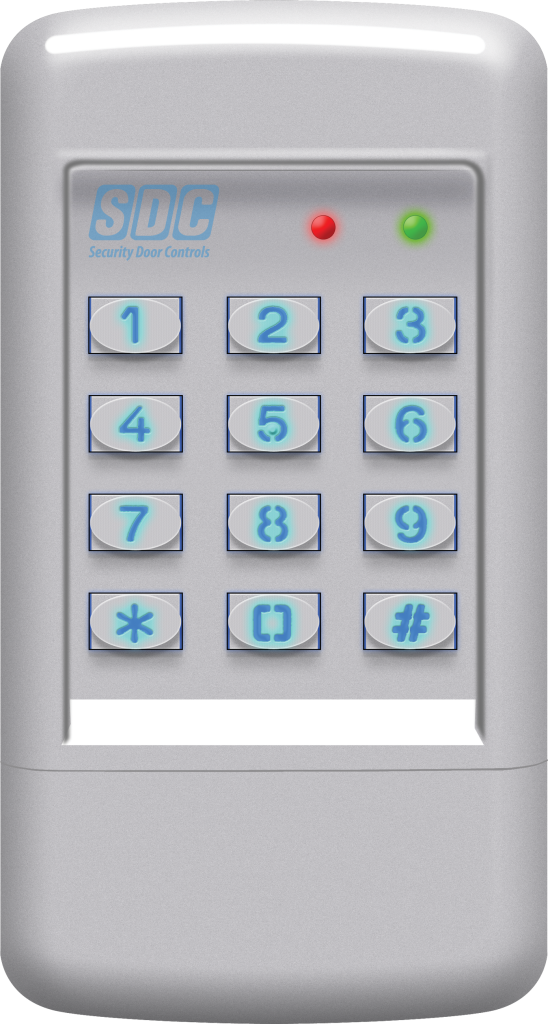

Security Door Controls 920 Digital Weatherized Keypad, 500 Users, 1-6 Digit Pin, Surface Mount, LED Status

Security Door Controls 920 Stand Alone Indoor/Outdoor Digital Weatherized Keypad offers robust access control for both residential and commercial applications. Designed to accommodate up to 500 users, this keypad allows for personalized entry with unique 1 to 6 digit PINs, enhancing security at any entry point. The keypad features a durable die-cast metal construction, finished in a sleek aluminum powder coat, ensuring it withstands harsh weather conditions and potential vandalism. With its moisture-resistant, illuminated 12-key layout, users can effortlessly access their premises even in low-light environments. The keypad is equipped with a built-in tamper switch and visual status indicators, providing clear access feedback. It supports 4 outputs, including 2 relays and 2 solid-state outputs, which can be configured for timed or latching functions to suit various security needs. The 920 keypad operates efficiently in temperatures ranging from -4ºF to +140ºF (-20ºC to +60ºC) and can handle humidity levels of 5% to 95% non-condensing. Its compact design, measuring 3" W x 5-3/4" H x 1-7/16" D, makes it suitable for single gang wall or surface mounting. Enhance your security with the versatile and reliable Security Door Controls 920 Keypad.

Stand Alone Indoor/Outdoor Digital Weatherized Keypad, 500 User, 1-6 Digit Pin, Surface Mount, 3in x 5-3/4 x 1-7/16in, Keypad Programming, 4 Outputs, 2 Relays and 2 Solid State Outputs Timed or Latching, LED Status, 689 Aluminum Powder Coat Finish

SDC’s EntryCheck 920 series indoor/outdoor digital keypads are designed to control access of a single entry point with up to 500 users. Each user is assigned a personal identification number (pin). Keypad entry of a valid one to six digit code activates one or both of the output relays which releases an electric door lock. Featuring heavy cast vandal resistant housing and cast metal blue backlit keys. 920P models add HID proximity reader capability to the keypad. 920PW models are designed to interface with SDC’s IPPro or most access control systems providing a standard 26-bit Wiegand output. SDC’s 921P models are indoor/outdoor standalone digital keypads with proximity reader and controller (two-piece configuration), designed to control access of a single entry point with up to 500 users. Each user is assigned a proximity card and/or a personal identification number (pin). Presentation of a proximity card or keypad entry of a code activates one or both of the output relays which releases an electric door lock.

Features:

• Digital keypad with backlit keys
• 12-key illuminated, moisture-resistant keypad
• Weather and vandal resistant housing with tactile keys
• Built-in tamper switch
• Keypad programmable
• Visual status indicators (LED)

Self-Contained Keypads Only Features:

• 500 user codes
• 4 outputs, 2 relay and 2 solid state
• Outputs timed or latching (on/off)
• Assign entry PIN’s to relays 1 and/or 2
• Choice of door sense or relay inhibit input
• Timed anti-passback, anti-tailgate
• Keypad tamper lockout
• Request-to-exit (REX)

Integrated Proximity Readers Only Features:

• 3 user modes - Pin or card, card only, card and Pin

Models:

• 920: Indoor/outdoor self-contained keypad
• 920P: Indoor/outdoor self-contained keypad with integrated proximity reader
• 920PW: Indoor/outdoor Weigand output keypad with integrated proximity reader
• 921P: Indoor/outdoor self-contained keypad with integrated proximity reader, external electronics

Applications:

• Single gang wall or surface mount
• Dual LED Status Indicators:
• Configurable illumination: on, off, timed
• LED status: access, lockout
• Self-Contained Keypad Programming Options: SDC’s EntryCheck keypads includes a door sense/inhibit input feature. When programmed for "door sense", a door position status (DPS) switch wired into the input and detects a "forced entry" or "door ajar" condition. When programmed for "inhibit input", a maintained switch or automatic timer wired into a the input will disable the activation of the main relay. EntryCheck keypads also have a request-to-exit (REX) input for connection to an exit switch and/or fire access key switch for fire/emergency access. When access is granted, the shunt option is activated shunting alarm contacts on the door or gate. This prevents triggering of an alarm during authorized access.

920 Specifications:

• Keypad Construction: Die cast metal
• Keypad Finish: Aluminum powder coat
• Input: 12/24 VAC/DC
• Current: 30mA Typical, 150mA maximum
• Output:
• Relay 1 - SPDT 5 Amps @ 30VDC
• Relay 2 - SPDT 2 Amps @ 30VDC
• Outputs 3 & 4, 100mA @ 30VDC
• Wiring: 6" Pigtail
• Operating Temperature: -4ºF to +140ºF (-20ºC to +60ºC)
• Operating Humidity: 5% to 95% Non-condensing
• Dimensions: 3" W x 5-3/4" H x 1-7/16" D (11/2" wall projection)
• Weight: 2 lbs

920P Specifications:

• Keypad Construction: Die cast metal
• Keypad Finish: Aluminum powder coat
• Input: 12/24 VAC/DC
• Current: 30mA Typical, 150mA maximum
• Output:
• Relay 1 - SPDT 5 Amps @ 30VDC
• Relay 2 - SPDT 2 Amps @ 30VDC
• Outputs 3 & 4, 100mA @ 30VDC
• Wiring: 6" Pigtail
• Operating Temperature: -4ºF to +140ºF (-20ºC to +60ºC)
• Operating Humidity: 5% to 95% Non-condensing
• Dimensions: 3" W x 5-3/4" H x 1-7/16" D (11/2" wall projection)
• Weight: 2 lbs

920PW Specifications:

• Keypad Construction: Die cast metal
• Keypad Finish: Aluminum powder coat
• Input: 5-16 VDC
• Current: 30mA Typical, 150mA maximum
• Output: 26-bit Wiegand or 4-bit word (keypad) 26-bit Wiegand, 125kHz (reader)
• Wiring: 6" Pigtail
• Operating Temperature: -4ºF to +140ºF (-20ºC to +60ºC)
• Operating Humidity: 5% to 95% Non-condensing
• Dimensions: 3" W x 5-3/4" H x 1-7/16" D (11/2" wall projection)
• Weight: 2 lbs

921P Specifications:

• Keypad Construction: Die cast metal
• Keypad Finish: Aluminum powder coat
• Input: 12/24 VAC/DC
• Current: 30mA Typical, 150mA maximum
• Output:
• Relay 1 - SPDT 5 Amps @ 30VDC
• Relay 2 - SPDT 2 Amps @ 30VDC
• Outputs 3 & 4, 100mA @ 30VDC
• Wiring: Pigtail connector to user cable to control box
• Operating Temperature: -4ºF to +140ºF (-20ºC to +60ºC)
• Operating Humidity: 5% to 95% Non-condensing
• Dimensions:
• Keypad - 3" W x 5-3/4" H x 1-7/16" D (1-1/2" wall projection)
• Enclosure - 7-3/4" W x 5-3/4" H x 3-1/2" D
• Weight: 3 lbs
