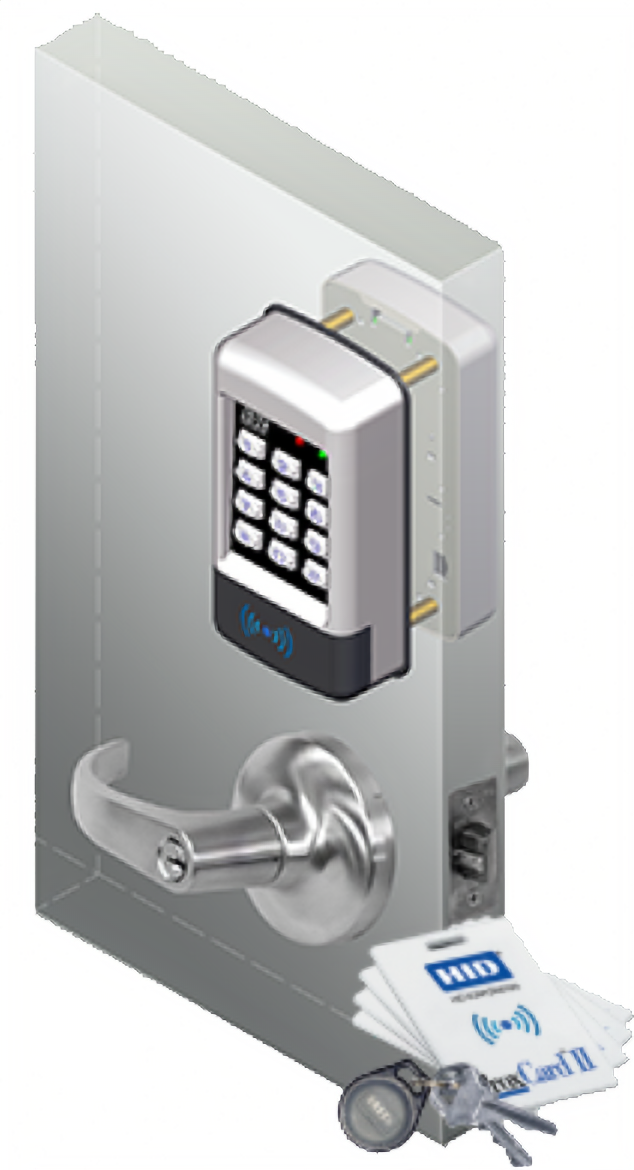

Security Door Controls E75-P-Q-E1-Q Entry Check Standalone Electronic Keypad Lock with Clutched Eclipse Lever

Security Door Controls E75-P-Q-E1-Q Entry Check Standalone Electronic Cylindrical Keypad/Prox Lock offers advanced security with a user-friendly design. This battery-powered electronic lock features a clutched Eclipse lever and is programmable for up to 3,000 users, making it ideal for high-traffic environments. With the capability to support 32 temporary users and 4 to 6 digit PIN codes, it provides flexible access management tailored to your needs. The E75-P-Q-E1-Q is equipped with 32 access groups, customizable schedules, and holiday settings, allowing precise control over who can access specific areas and when. It includes four authority levels and a keypad tamper lockout for added security. The weather-resistant design ensures durability in various conditions, while the blue backlit cast metal keys enhance visibility. For emergency situations, the mechanical key override guarantees access when needed. Its retrofit capability allows for easy installation on existing door preparations, making it a versatile choice for service stations, convenience stores, and restroom facilities. With features like request-to-exit inputs and visual status indicators, the Security Door Controls E75-P-Q-E1-Q delivers a comprehensive access control solution tailored for both commercial and residential applications. Enjoy peace of mind with this robust and adaptable locking system.

Entry Check Standalone Electronic Cylindrical Keypad/Prox Lock, Clutched Eclipse Lever, Keypad Programmable, 3,000 Users, 32 Temporary Users, 4 to 6 Digit Pin Codes, 3 Passage Mode Option, 32 Access Groups, Schedules, 32 Holidays, 4 Authority Levels, 626/US26D Satin Chrome Keypad and Lever Trim

SDC battery powered electronic door locks and keyless entry system provide controlled access for basic and multi-level convenience requirements. Priced to compete with entry-level brands, SDC standalone locksets are loaded with features professionals expect with hardwired systems. Additionally, E70 series keypads comes standard with all of SDC’s EntryCheck features such as door sense/inhibit inputs industry professionals have become accustomed to from SDC keypads. E75K, E75P and E75PS models standalone locksets are keypad or PC software programmable, and combine multiple access technology with efficient motorized locksets. An optional passage mode feature comes standard. E75KL and E75PL models feature a privacy function that locks the keypad by engaging the privacy button on the inside, and the red LED on the outside flashes to indicate room occupation. Turning the inside lever upon exiting deactivates the privacy function. In case of emergency, the privacy function can be overridden via key or master code. E75KL and E75PL modes are the perfect low-cost standalone solution for new or retrofitting of service stations, convenience stores, fast food or coffee house restroom facilities.

Features:

• Keypad programmable
• 3,000 users, 32 temporary users
• 4 to 6 digit PIN codes
• 32 access groups, schedules and holidays
• 4 authority levels
• Keypad tamper lockout
• Mechanical key override
• Battery powered (4 AA)
• Blue backlit cast metal keys
• Weather & vandal resistant
• Retrofits existing lock door prep
• Motorized SDC cylindrical lockset
• Vandal resistant lever clutch mechanism
• Request-to-exit (REX)
• Door position status (DPS)
• Visual status indicators (LED)

Optional Features:

• Keypad with privacy feature
• Keypad with integrated proximity reader
• Keypad with integrated proximity ready and privacy feature
• Keypad with integrated proximity reader and software

Models:

• E75: Standalone cylindrical lockset

Applications:

• Privacy Feature Signage: Generic signage is available for the front side to indicate the room is occupied when the LED is flashing and for the backside to notify the occupant to push the red button for the privacy function and to turn the handle to exit and disengage the privacy function. Custom signage is available on request for your particular application.
• Privacy Time Limit Indication: An internal logic board includes a timer for up to 60 minutes that can be set to disengage the privacy function, making the room available for a new occupant. You can also keep the privacy function engaged, but use the auxiliary relay to send a signal to management, front desk, office or cashier, that the occupant has exceeded the time limit so someone can check in on them.

E75K, E75KL Specifications:

• Function: Keypad only
• Power: AA Alkaline batteries (4) or 30mA @ 12 VDC
• Battery Lifespan: 100,000 cycles
• Inputs: Request-to-exit (1), door position status (1)
• Output: Auxiliary relay (1)
• Contact: SPDT 1 Amp @ 30 VDC resistive
• Operating Temperature: -4ºF to +140ºF (-20ºC to +60ºC)
• Operating Humidity: 5% to 95% non-condensing
• Latchbolt: 9/16" Throw
• Keyway Format: G1/E1 (Schlage "C" keyway), G5/E5 (Best small format prep)
• Backset: 2-3/4" Standard, 2-3/8" optional
• Strike: 4-7/8" ANSI A115.2
• Door Thickness: 1-3/4" - 2-1/8"

E75P, E75PL Specifications:

• Function: Keypad w/ prox reader
• Power: AA Alkaline batteries (4) or 30mA @ 12 VDC
• Battery Lifespan: 100,000 cycles
• Inputs: Request-to-exit (1), door position status (1)
• Output: Auxiliary relay (1)
• Contact: SPDT 1 Amp @ 30 VDC resistive
• Operating Temperature: -4ºF to +140ºF (-20ºC to +60ºC)
• Operating Humidity: 5% to 95% non-condensing
• Latchbolt: 9/16" Throw
• Keyway Format: G1/E1 (Schlage "C" keyway, G5/E5 (Best small format prep)
• Backset: 2-3/4" Standard, 2-3/8" optional
• Strike: 4-7/8" ANSI A115.2
• Door Thickness: 1-3/4" - 2-1/8"

E75PS Specifications:

• Function: Keypad w/ prox reader & software
• Power: AA Alkaline batteries (4) or 30mA @ 12 VDC
• Battery Lifespan: 100,000 cycles
• Inputs: Request-to-exit (1), door position status (1)
• Output: Auxiliary relay (1)
• Contact: SPDT 1 Amp @ 30 VDC resistive
• Operating Temperature: -4ºF to +140ºF (-20ºC to +60ºC)
• Operating Humidity: 5% to 95% non-condensing
• Latchbolt: 9/16" Throw
• Keyway Format: G1/E1 (Schlage "C" keyway, G5/E5 (Best small format prep)
• Backset: 2-3/4" Standard, 2-3/8" optional
• Strike: 4-7/8" ANSI A115.2
• Door Thickness: 1-3/4" - 2-1/8"
• Supported Operating Systems: Windows 7, 10 (32-bit and 64-bit systems)
• Processor: 2GHz or raster recommended
• RAM: 2GB or more recommended
• Hard Disk Space: 1GB or more recommended
• PC User Requirements: Windows administrative rights

Finishes:

• Keypad:
• Q/626 - Dull chrome
• B - Matte black
• Trim:
• Q/626 - Dull chrome
• P/625 - Bright chrome
• C/605 - Bright brass

Resources

• Cut Sheet
