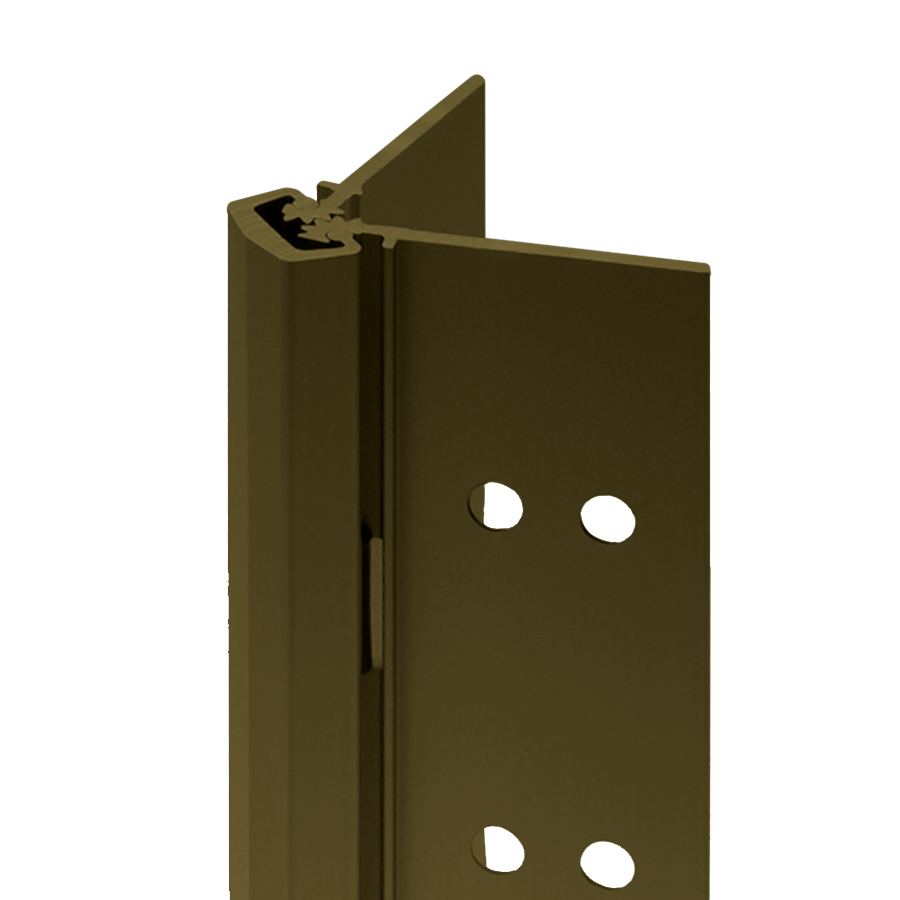

Select Products SL11-95-BR-HD300 95in Heavy Duty Geared Continuous Hinge, Up to 300lb, BR Dark Bronze

SELECT Products Limited SL11-95-BR-HD300 Full Mortise Heavy Duty Geared Continuous Hinge offers an exceptional solution for high-traffic doors, designed to withstand the rigors of daily use with ease. Measuring 95 inches in length and capable of supporting doors up to 300 lbs, this hinge is ideal for environments requiring durability and reliability without the need for additional frame or door reinforcement. Constructed from aluminum, the SL11 hinge is engineered to endure over 25 million cycles, translating to more than 60 years of dependable service on the average high-traffic door. This longevity not only minimizes the number of hinges required but also reduces material waste, energy consumption, and maintenance costs-making it a smart choice for environmentally conscious builders. Available in a rich Dark Bronze finish, the SL11 hinge complements a variety of architectural styles while enhancing overall security. It is compatible with conventional overhead closers, providing flexibility in installation. This hinge is backed by SELECT’s never-ending continuous warranty, ensuring peace of mind for years to come. Choose the SELECT Products Limited SL11-95-BR-HD300 for a hassle-free, sustainable solution to your heavy-duty hinge needs, combining strength, efficiency, and aesthetic appeal in one outstanding product.

Full Mortise Heavy Duty Geared Continuous Hinge, 95in, Up to 300lb. High Frequency, BR Dark Bronze

The aluminum geared continuous hinges provide the longest-lasting solution for high-traffic doors. As a result, they save materials and energy. Our hinges have been proven to withstand 25 million cycles - equal to more than 60 years of use on the average high-traffic door. A longer life cycle means fewer hinges used, which means fewer resources used, fewer emissions produced and fewer tons of waste. And fewer maintenance dollars and headaches for you. They last so long we back them with our never-ending continuous warranty. They're a hassle-free way to make a greener building.

Features:

• Lengths: 83", 85", 95" and 120" lengths standard for nominal door heights. Custom lengths are available.
• Load/Frequency Rating: For 1-3/4" doors. 48" max. door width in 16 gauge hollow metal (min.) or 1/8" aluminum (min.).
• Heavy Duty 300: For high-frequency doors up to 300 lb. without frame or door reinforcement.
• Heavy Duty 600: For high-frequency doors up to 600 lb. Rivnuts are recommended in the frame and door when the door exceeds 450 lb.
• Heavy Duty (LL): Our heavy duty 600 with additional fastener holes for low- to medium-frequency doors up to 1,000 lb., including most lead-lined doors. Rivnuts are recommended in the frame and door on extremely tall, extremely heavy or extra-wide doors.
• Finishes: All SL11 hinges are stocked in clear, dark bronze and black anodized aluminum. Custom anodized or painted finishes are available. Product painted or anodized in the field voids the SELECT hinge warranty.
• Closers: Conventional overhead surface, concealed sliding arm overhead or floor closers may be used with SELECT hinges. Pivot-type floor closers (with a fixed, conflicting center pivot) must be replaced.

SL11 Hinge Screw Count:

Hinge Length and Duty Rating	Door Screws	Frame Screws
79" HD600	19	19
83" HD300/HD600	19	19
85" HD300/HD600	19	19
95" HD300/HD600	21	21
120" HD300/HD600	23	23
83" LL	26	26
85" LL	26	26
95" LL	30	30
120" LL	34	34
