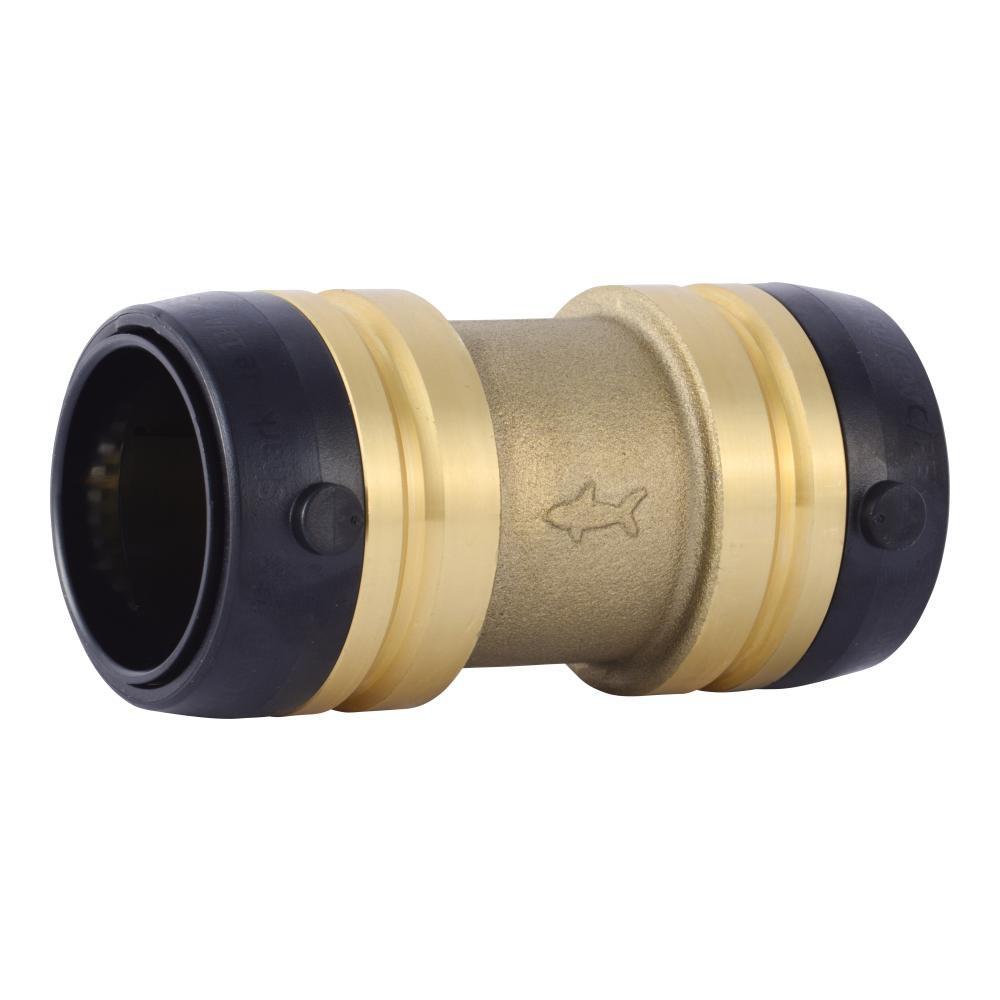

SharkBite UXL0135 1-1/4" Push-to-Connect Brass DZR CouplingSharkBite UXL0135 1-1/4 in. Push-to-Connect Brass DZR Coupling is engineered for versatility and ease of installation, making it an ideal choice for both professionals and DIY enthusiasts. This coupling seamlessly connects PEX, copper, CPVC, and PE-RT pipes, allowing for a wide range of applications including potable water systems, hydronic heating, chilled water, and irrigation. One of the standout features of this coupling is its ability to be installed in wet lines, eliminating the need for special tools, crimping, glue, or solder. This means faster and easier installations, even in challenging environments. Rated for up to 200 psi and capable of withstanding temperatures as high as 200°F (93°C), this coupling is built to endure high-performance demands, ensuring reliability in both residential and commercial settings. For underground and behind-the-wall applications, the SharkBite UXL0135 is approved for use without access panels, provided wrapping is used when burying underground. When disconnection is necessary, it can be easily removed using the Disconnect Clip or Disconnect Tongs, which are sold separately. Constructed from durable DZR brass, this coupling is not only lead law compliant but also certified by NSF, ensuring it meets the highest standards for safety and performance. With a length of 3-14/25 in. and a fitting size of 1-1/4 in., it fits perfectly in various plumbing configurations, making it the go-to solution for any plumbing project. Choose SharkBite UXL0135 for a reliable, hassle-free connection that stands the test of time.
1-1/4 in. Push-to-Connect Brass DZR Coupling
Compatible with PEX, copper, CPVC and PE-RT pipe
Can be installed in wet lines
No special tools, crimping, glue or solder required
Approved for underground and behind-the-wall applications with no access panels (wrapping required when burying underground)
Remove if needed usingDisconnect CliporDisconnect Tongs(both sold separately)
Rated for 200 psi and 200°F (93°C)
Stiffeners are inserted into 1-1/4" to 2" Universal fittings
Required when connecting 1-1/4" to 2" Universal fittings to PEX, PE-RT and HDPE pipe
Call for more sizes or configurations
Attributes
ANSI: ANSI 61, ANSI 372
ASSE Standards: ASSE 1061
Application: Copper Pipe, PEX Pipe, CPVC Pipe, Potable Water, Hydronic Heating, Chilled Water, Irrigation
CSA Certified: CSA B125.3
Clean Bagged: No
End Connection 1: Push-to-Connect
End Connection 2: Push-to-Connect
End Connections: Push-to-Connect
Fitting Size 1: 1-1/4 in
Fitting Size 2: 1-1/4 in
Fitting Sizes: 1-1/4 in
Fitting Type: Straight
Lead Law Compliance Level: Lead Law Compliant and Certified
Lead Law Compliant: Yes
Length: 3-14/25 in
Material: Brass
Material Type: DZR
Maximum Temperature: 200
NSF: NSF 61, NSF 372, NSF 14
NSF Certified: Yes
Origin: Domestic
Pressure - Maximum: 200 psi
Temperature Range: 20 to 200 Deg F
UL Listed: No
Upc: 697285040564
