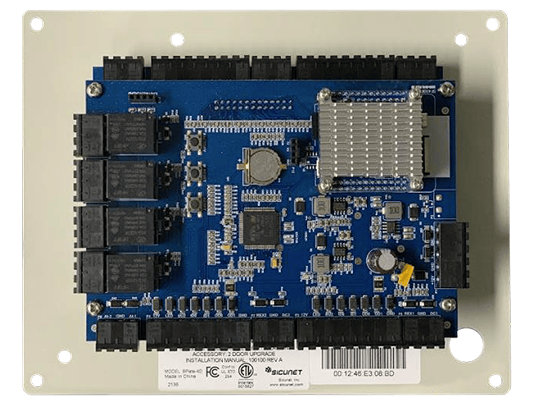

Sicunet BP-2D Backplane - 2 Door Hardware - Professional - 32 License (TruPortal Retrofit)

Sicunet Inc. BP-2D Backplane is designed for robust access control, featuring advanced hardware capabilities for professional installations. This backplane is pre-configured with mounting holes, accommodating E3 Panels by Linear (ES, EL, and EXN), S2 – 50/5000 panels, and TruPortal systems, allowing for extensive scalability-supporting up to 16 doors when configured with multiple panels. Equipped with a quad-core Cortex processor and 8Gig NAND non-volatile memory, the BP-2D ensures efficient transaction processing, handling over 60 transactions per second. Each module can function as a server, expansion panel, or elevator, providing versatility for various applications. The embedded Linux operating system guarantees reliable performance, while the included mobile app enhances user accessibility. With features such as 4/8 readers, relays, and inputs for Request to Exit (REX) and door position status, this backplane meets comprehensive security needs. It requires a power supply of 12VDC, ensuring efficient operation within a temperature range of 50°F to 95°F. The BP-2D also includes a 5-year hardware warranty for peace of mind. For seamless connectivity, it supports 10/100 Base Ethernet, making it an ideal choice for modern security systems.

Backplane - 2 Door Hardware - Professional Features - 32 License (TruPortal Retrofit)

Features:

• Backplane is pre-configured with mounting holes for the following panels:
• E3 Panels by Linear (ES, EL, and EXN’s) – supports double stack for 8 door applications
• S2 – 50/5000 panels – supports up to 4 panels in housing for 16 doors
• TruPortal
• DIN Rail - easily mounts to a DIN rail connector
• Each module functions as a server, expansion panel or elevator
• Includes mobile app and credentials
• Out of the box ready browser managed
• Embedded Linux operating system
• 4/8 Readers (in/out)
• 4/8 Relays (lock/aux)
• 6/12 Inputs (REX, DPS, Aux) global
• Requires 12VDC 450 mls
• Includes stand-offs for double stacking
• 5-Year hardware warranty

Specifications:

• Model: BP-2D / BP-4D
• Processor: Quad core cortex
• Memory: 8Gig NAND Non-volatile, USB backup option
• Operating System: Embedded Linux
• Transactions: > 60 per second
• System Power Requirements: [email protected] 2 door or 12VDC@5A for 4 door
• Operating Temperature: 50°F to 95°F (10°C to 35°C)
• Ethernet: 10/100 Base auto sense
• Standby Power Requirements: 400mA @ 12V
• Readers (Wiegand): 4/8 Total, one in and one out reader for each door
• Reader Power: 300mA @ 12V Max per reader
• Request to Exit (REX) Input: 2/4 Total, one for each door
• Door Position (status) Input: 2/4 Total, one for each door
• Auxiliary Input: 2/4 Total, general purpose
• Tamper Digital Input: Yes
• Power Fault Digital Input: Yes
• Door Lock Output: 2/4 Form C relay, 24V @ 2.0A
• Auxiliary Output: 2/4 Form C relay, 24V @ 2.0A
