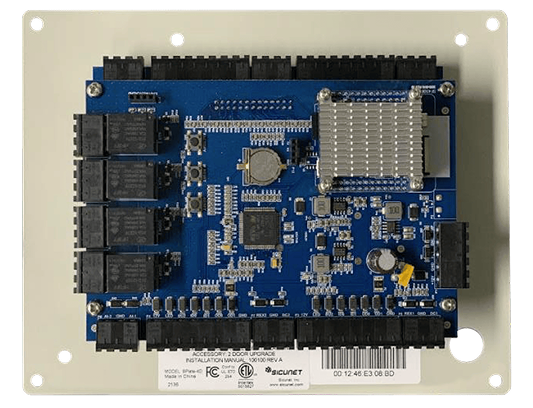

Sicunet BP-4D Backplane - 4 Door Hardware - Professional Features - 32 License

Sicunet Inc. BP-4D Backplane is an advanced solution designed for access control management, supporting up to four doors with professional-grade features. This backplane comes pre-configured with mounting holes for a variety of panels, including E3 Panels by Linear, S2-50/5000 panels, and TruPortal, allowing for seamless integration into your security system. Its capability to support double stacking enables the management of up to 16 doors when used with compatible panels. Equipped with a powerful quad-core processor and an embedded Linux operating system, the BP-4D ensures efficient operation with transaction processing exceeding 60 per second. Each module can function as a server or expansion panel, enhancing the scalability of your access control setup. Additionally, the inclusion of a mobile app and browser management provides easy access and control. The BP-4D features multiple inputs and outputs, including 4 to 8 readers, relays, and auxiliary inputs, all designed to enhance functionality. With a robust temperature operating range from 50°F to 95°F and a 5-year hardware warranty, this backplane is built for reliability. Power requirements are modest, needing only 12VDC, making it a versatile choice for both residential and commercial applications.

Backplane - 4 Door Hardware - Professional Features - 32 License

Features:

• Backplane is pre-configured with mounting holes for the following panels:
• E3 Panels by Linear (ES, EL, and EXN’s) – supports double stack for 8 door applications
• S2 – 50/5000 panels – supports up to 4 panels in housing for 16 doors
• TruPortal
• DIN Rail - easily mounts to a DIN rail connector
• Each module functions as a server, expansion panel or elevator
• Includes mobile app and credentials
• Out of the box ready browser managed
• Embedded Linux operating system
• 4/8 Readers (in/out)
• 4/8 Relays (lock/aux)
• 6/12 Inputs (REX, DPS, Aux) global
• Requires 12VDC 450 mls
• Includes stand-offs for double stacking
• 5-Year hardware warranty

Specifications:

• Model: BP-2D / BP-4D
• Processor: Quad core cortex
• Memory: 8Gig NAND Non-volatile, USB backup option
• Operating System: Embedded Linux
• Transactions: > 60 per second
• System Power Requirements: [email protected] 2 door or 12VDC@5A for 4 door
• Operating Temperature: 50°F to 95°F (10°C to 35°C)
• Ethernet: 10/100 Base auto sense
• Standby Power Requirements: 400mA @ 12V
• Readers (Wiegand): 4/8 Total, one in and one out reader for each door
• Reader Power: 300mA @ 12V Max per reader
• Request to Exit (REX) Input: 2/4 Total, one for each door
• Door Position (status) Input: 2/4 Total, one for each door
• Auxiliary Input: 2/4 Total, general purpose
• Tamper Digital Input: Yes
• Power Fault Digital Input: Yes
• Door Lock Output: 2/4 Form C relay, 24V @ 2.0A
• Auxiliary Output: 2/4 Form C relay, 24V @ 2.0A
